Remote Engine Oil Replenishment Unit

The engine oil replenishment unit (REORU) monitors and then distributes oil to two or three engines on any business jet. The REORU features a 28VDC system with oil volume customization to accommodate the application down to -20F.

Полное описание продукта

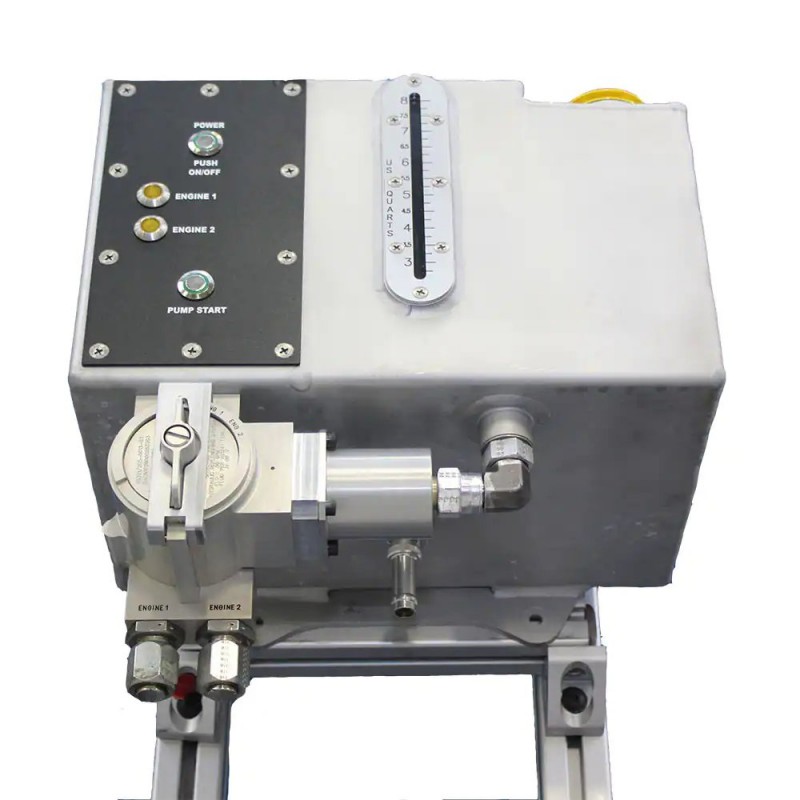

An oil replenishment system allows business aircraft operators to replenish system oil levels as required in areas where ground maintenance crews may not be readily available. A control panel at ground level in the rear of the fuselage is easily accessed by the flight crew, allowing operators to replenish engine oil in seconds by simply turning a switch and pressing a button. The system is powered by the aircraft’s 28V battery.

The digitally controlled brushless DC electric motor (BLDC) motor allows oil replenishment from -20F to 120F. The system is designed to replenish two gallons of oil in three minutes at 70 degrees F. The system can be easily adapted to meet any application including two- or three-engine aircraft.

APPLICATIONS:
Business jets, helicopters, or commercial jets that are away from their fixed based operations

FEATURES AND ATTRIBUTES:
• 28 VDC working on typical aircraft voltage
• Significant time saver
• No specific maintenance training is required to operate
• No other equipment required, such as step ladder
• Low oil indicator lights ensure proper replenishment
• Selector switch lockout prevents filling the incorrect engine
• Automatic safety and shut-off features
• Light-weight sheet metal design
• 200-watt maximum power
• Currently limited to 7.1 amps
• Low voltage limit, won’t turn on below 18 volts

OPTIONAL FEATURES:
• Reservoir feat
• Oil volume and envelope are easily adapted for specific applications
• Supports two or three engines

Характеристики

Вес:	11.5 pounds (5.25kg) lb
Объем:	1.75 gallons (6.6L) gal
Высота:	10 inches
Ширина:	12 inches
Длина:	8 inches
Напряжение источника питания:	-
Материалы изготовления:	-
