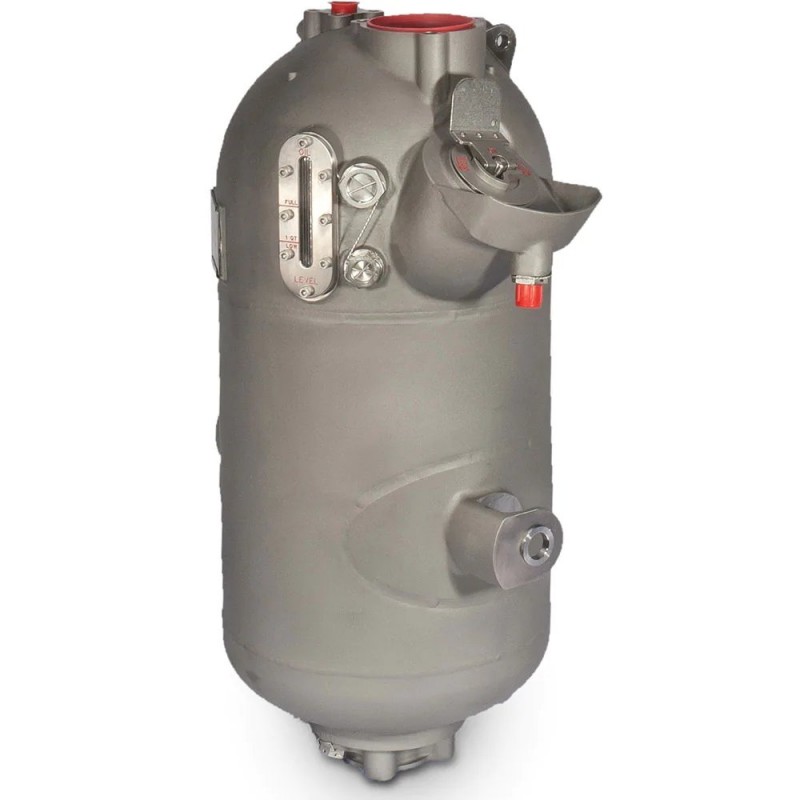

Fireproof Main Engine Oil Tank

The main engine oil tank incorporates the reservoir, air/oil separator, sight gauge, filler cap, and pressure regulating valve. The reservoir can be made of a stainless steel weldment or aluminum with a fire blanket.

Полное описание продукта

The main engine oil tank’s primary purpose is to provide clean deaerated oil to the engine for the turbine engine bearings. Parker Aerospace tanks are available with fireproof

The oil tank incorporates a variety of different components to monitor the health of the engine oil system: reservoir, integrated deaerator, visual oil sight gauge, remote oil level indicator, pressure regulating valve, pressure relief valve, pressure fill valve, gravity fill cap, and adapter.

The entire tank needs to be designed and certified to meet the FAA 15 minute 2000-degree fireproof requirement. The main reservoir can be manufactured using stainless steel or aluminum. Aluminum designs requires a fireblanket or other insulation methods to meet the fireproof requirement.

APPLICATIONS: Gas turbine main engine oil systems

FEATURES AND ATTRIBUTES:
• Completely integrated oil tank
• Fireproof certification to FAA 15-minute 2000° requirement
• Highly reliable
• No maintenance required

OPTIONAL FEATURES:
Mounting brackets and associated hardware can be provided as a kit.

Характеристики

Для типа жидкости:	Designed to specifications; typically designed using turbine engine oils
Материалы изготовления:	Stainless steel or aluminum
Рабочая температура:	-65 F to 450 F typical engine oil temperatures °F
Количество циклов за срок службы:	Infinite; designed to last the life of the engine
Вес:	Designed to specifications; trade studies are required to determine lowest weigh based on envelope lb
Объем:	Designed to specifications; 1 to 12 gallons is typical gal
