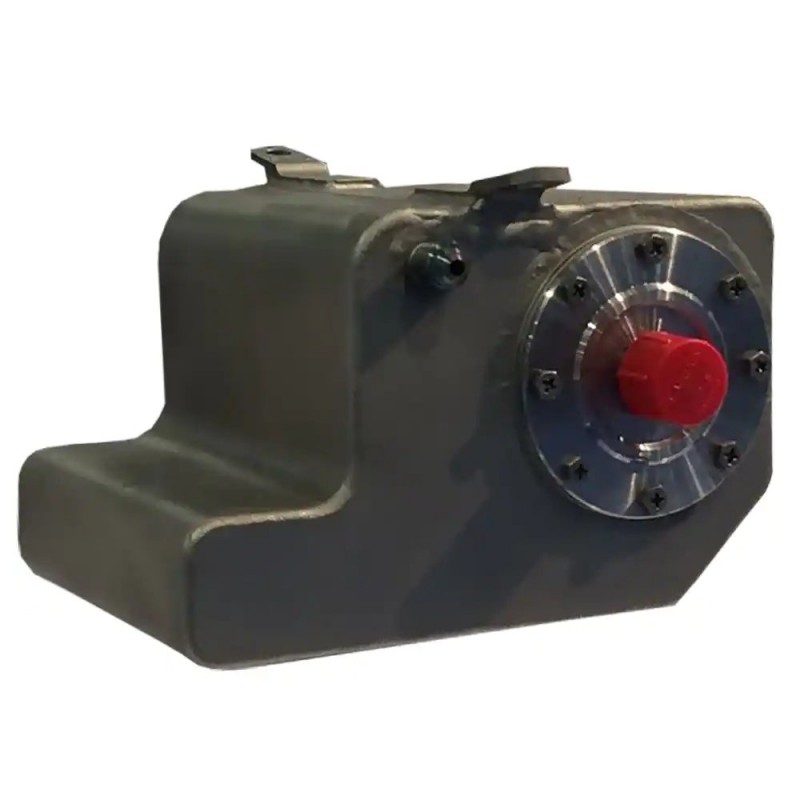

The ecology tank is designed to capture fluids during aircraft operation to allow the fluids to be disposed of properly after the flight.
Ecology tanks are designed to capture fluids in a variety of different applications. Parker has fielded designs for fuel, oil, and hydraulic systems. The fuel ecology tanks capture fuel during engine shutdown and return the oil to the fuel tanks during the start of the engine. Oil and hydraulic ecology tanks capture small amounts of oil during flight that can be returned to the tank or drained before the next flight.
APPLICATIONS:
• Gas turbine engine fuel system
• Helicopter transmission oil system
• Helicopter flight control hydraulic system
FEATURES AND ATTRIBUTES:
• Designed to meet the FAA 15 minute 2,000° fireproof requirement
• Integrated backflow check valve
• Integrated fuel-shutoff valve
• Integrated jet pump
• Highly reliable
• No maintenance required
OPTIONAL FEATURES:
Mounting brackets and associated hardware can be provided as a kit.
Характеристики
| Для типа жидкости: | Fuel, engine oil, hydraulic fluids, and other, All jet oils |
| Материалы изготовления: | Stainless steel, aluminum, composite, and/or plastic; depending on customer requirements |
| Рабочая температура: | Designed to specifications; all tanks are designted to operate at -65F and the high temperature range depends on the application °F |
| Количество циклов за срок службы: | Designed to specifications, lasting the life of the engine |
| Вес: | Designed to specifications; study determines lowest weight based on envelope lb |
| Объем: | Designed to specification; 0.5 to 1 gallon is typical gal |
- Вес
- Designed to specifications; study determines lowest weight based on envelope lb
- Для типа жидкости
- Fuel, engine oil, hydraulic fluids, and other, All jet oils
- Количество циклов за срок службы
- Designed to specifications, lasting the life of the engine
- Материалы изготовления
- Stainless steel, aluminum, composite, and/or plastic; depending on customer requirements
- Объем
- Designed to specification; 0.5 to 1 gallon is typical gal
- Рабочая температура
- Designed to specifications; all tanks are designted to operate at -65F and the high temperature range depends on the application °F
