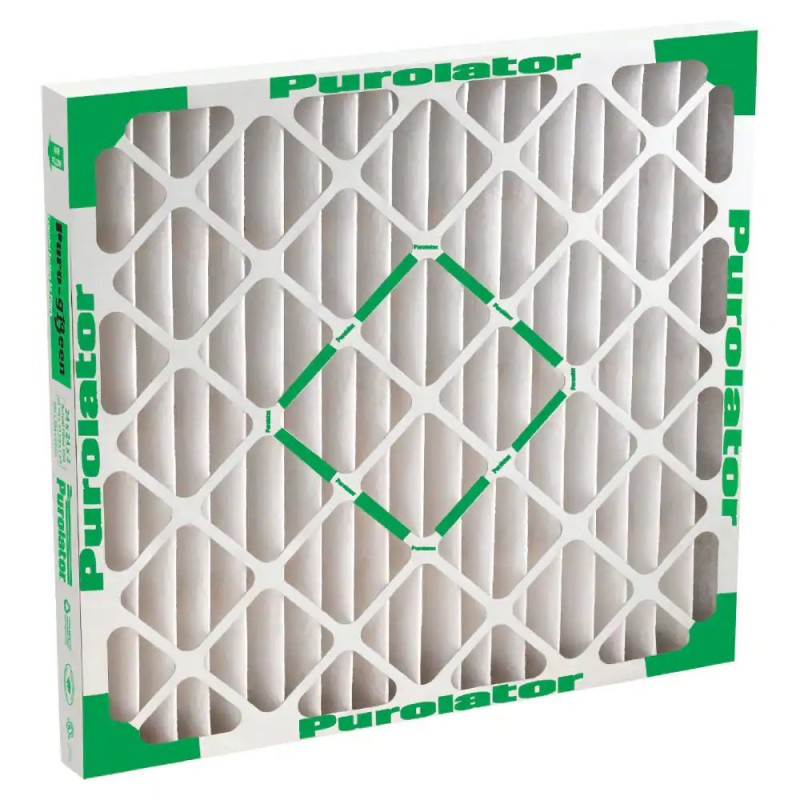

Puro-green - 1 Inch Pleated Filter (PR13)

Полное описание продукта

The Purolator® Puro-Green® is a high-efficiency, pleated air filter which meets the minimum efficiency criteria required by LEED (Leadership in Energy and Environmental Design). The filters are ideally suited for use in buildings where better indoor air quality is desired, such as existing commercial properties, universities, school systems and government institutions. They can be used a pre-filter or final filter without the need to retrofit systems for a high-efficiency rigid filter. In most cases, the filters qualify as a sustainable component for a LEED/Green Building Initiative.

Puro-Green® filters are available in multiple sizes (1-, 2- or 4-in thickness) and utilize heavy-duty beverage board frame made from moisture-resistant material and double-walled thickness around the outer edge. This, coupled with integral die-cut cross members, provides the necessary rigidity to help maintain the pleat shape and prevent fluttering during operation. The consistent pleat shape maximizes the overall performance of the filter and contributes to balanced dust-loading. Moisture resistance is provided by the water-repellent adhesive, which bonds the frame with the media pack and covers 100% of the interior of the frame. This ensures that pleats hold together when wet, preventing delaminating, excessive buckling, collapsing, racking, warping, and bending, which can cost users time and money.

Markets:
Commercial and Industrial HVAC
Process Air Filtration

Applications:
Air handling systems
Rooftop units
Side access housings
Built-up filter banks
Pre-filters in multi-stage systems

Benefits:

Maintains MERV 13 performance in a full ASHRAE 52.2-2012 independent test
Meets minimum efficiency criteria required by Leadership in Energy and Environmental Design (LEED)
Resistant to moisture, mechanical damage, and microbial growth
Consistent pleat shape ensures low pressure drop, full depth dust-loading, and longer service life in the field

Features
Filtration efficiency: MERV 13
Nominal thickness (in.): 1, 2, 4
Rated air velocity (fpm): 492
Air flow rates (cfm): 210–2,170
Initial resistances (in.w.g.): 0.30–0.43
Final resistance (in.w.g.): 1.0
Maximum operating temperatures: 200 °F (93 °C)
Material of construction: Heavy-duty, moisture-resistant beverage board frame; rust-resistant, expanded metal support grid made of galvanized steel
Classified per UL Standard 900 for flammability
