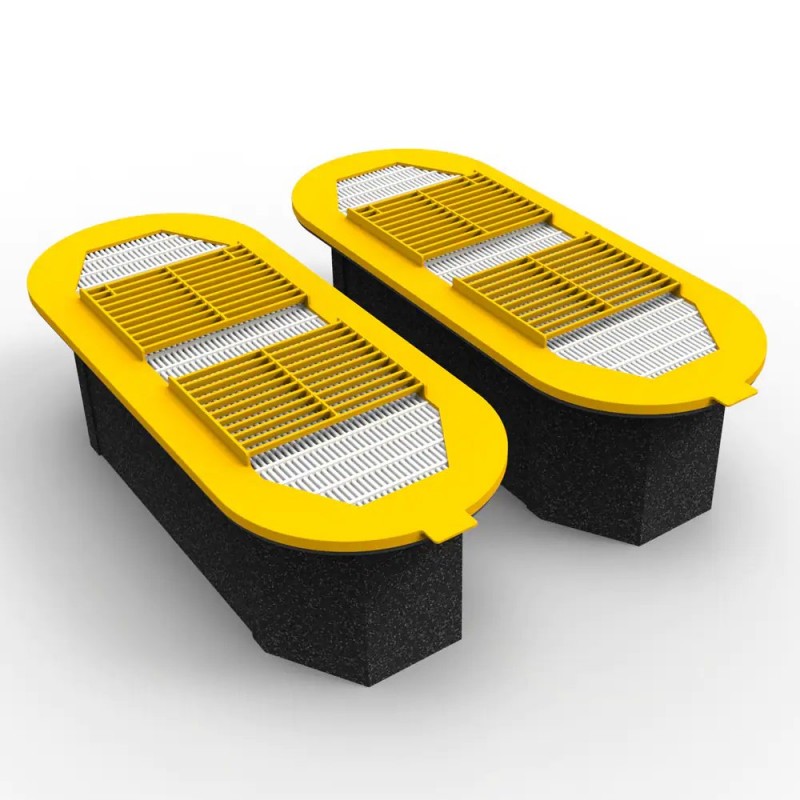

BHA TotalPleat 04110001

An innovative replacement filter to fit Donaldson PowerCore® CP dust collectors, PNs: P032358-016-340 and P280356-016-340. BHA® TotalPleat™, the proprietary MERV 15 filter provides key improvements over OEM design. Long filter life and energy savings

An innovative replacement filter to fit Donaldson PowerCore® CP collectors, PNs: P032358-016-340 and P280356-016-340. BHA® TotalPleat™, the proprietary filter provides key improvements over the OEM design. Long filter life, energy savings, and low pressure drop.
The answer to the outstanding performance of the TotalPleat filter is the more open flow passages within the pleatpack which allow dust to be pulse cleaned out of the filter more completely. In combination with a louvered grid on top of the filter, the open flow passages on the clean side greatly improve how well the cleaning pulse can reach the full depth of the filter. So rather than dust becoming trapped as it does deep in the flutes of the PowerCore filter, TotalPleat is better able to keep the flow passages free of dust accumulation and operate at a lower pressure drop, giving long useful filter life. Suitable for any application currently using Donaldson PowerCore CP cellulose blend filter.

Key Benefits TotalPleat vs. PowerCore

• Long filter life, TotalPleat operates at a low pressure drop
• Requires less pulse cleaning to maintain DP for potential energy savings
• Proprietary Advanced Airflow Technology
   − Advanced airflow with lower velocity into and out of the filter because of the deep pleated design engineered with greater open area on the top and bottom filter faces
   − Novel glue bead design provides better cleaning of the filter and ultimately longer filter life by creating open pleat spacing the full height of the filter:
      o Cleaning pulse able to reach the full depth of the filter
      o Allows dust to be more fully ejected out the bottom of the filter
      o Small glue beads allow 92% of filter face to be open to flow
      o TotalPleat flow passage is 50% more open than PowerCore
• TotalPleat is completely incinerable — no metal components
• P032358-016-340 (MERV 13) and P280356-016-340 (MERV 15)
• Effective, even distribution of cleaning pulse across the entire filter area driven by the rigid injection-molded plastic flange with unique, inclined louvered grid
• No dust bypass is ensured with the EPDM/Neoprene gasket with vulcanized splice
• Greater durability – stiffened polyester felt outer wrap protects filter during handling and installation
• Easier removal after use than the OEM filter


Powercore® is a registered trademark of Donaldson Company, Inc.
