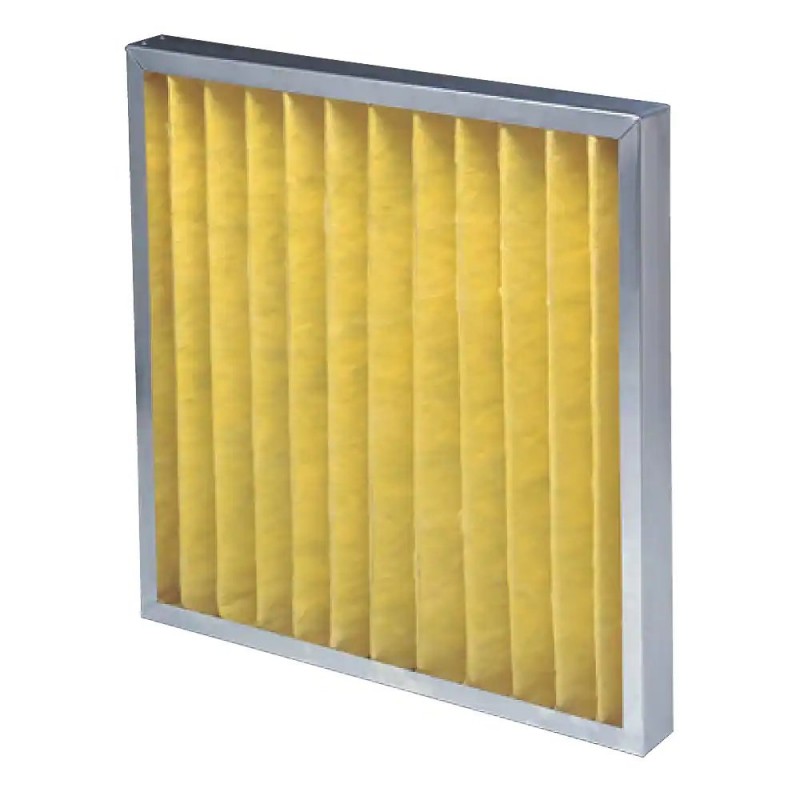

Hi-E 40 H - High Temperature - 4 Inch Pleated Filter (HE40H)

Hi-E® 40 H pleated air filters from Purolator® are specially designed for continuous operation in environments up to 500°F (260°C). Max flow rates: 1000 – 2,500 cfm depending on size (2- or 4-in thickness). Perform to MERV 8 per ASHRAE 52.2-2007.

Полное описание продукта

The Purolator¬® Hi-E® 40 H is a standard-capacity, medium-efficiency pleated air filter that is specially engineered for use in systems with elevated operating temperatures (up to 500°F).

The filter media is made from ¼-in thick, high-density fiberglass reinforced with woven fiberglass mesh and is bonded to a corrosion-resistant, expanded metal support grid with a 96% open face area. The pleated element is supported downstream with a 24-gauge expanded aluminized steel faceguard to ensure the stability of the media pack at high temperatures. The support grid is formed into a wedge configuration to optimize the use of the filter media. The double-wall thickness around the outer edge and integral die-cut cross members provide extra strength and rigidity.
The filters are made with 100% synthetic fibers and achieve MERV 8 performance before and after a conditioning step. Available in 2-in or 4-in thickness.

Markets:
Commercial and Industrial HVAC
Process Air Filtration

Applications:
High-temperature environments
Air handling systems
Rooftop units
Side access housings
Built-up filter banks
Pre-filters in multi-stage systems

Benefits:
Designed for continuous operation in systems with very high temperatures, up to 500°F (260°C).
Media is bonded to the expanded metal to prevent media sagging or oscillation during operation
Performs to MERV 8 per ASHRAE 52.2-2007 before and after filter conditioning

Features:
Filtration efficiency: MERV 8
Nominal thickness (in.): 2, 4
Rated air velocity (fpm): 500
Max air flow rates (cfm): 1,000–2,500
Initial resistances (in.w.g.): 0.45–0.55
Final resistance (in.w.g.): 1.0
Maximum operating temperatures: 500 °F (260 °C)
Material of construction: high-density ultra-fine fiberglass reinforced with woven fiberglass mesh; expanded metal supports; 24-gauge aluminized steel frame
Classified per UL Standard 900 for flammability only
Class 1 per UL Standard 5111
