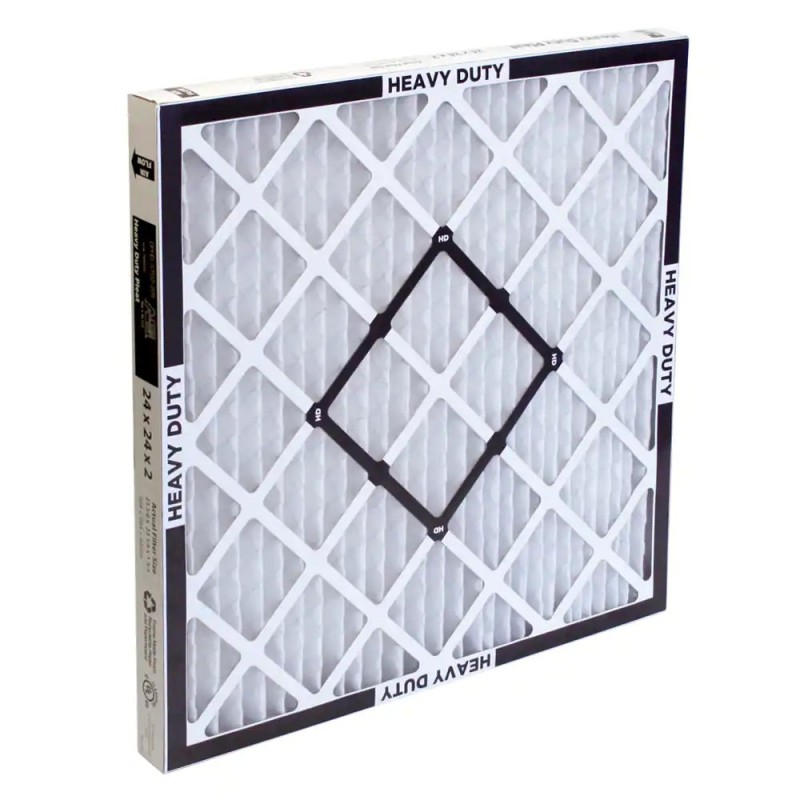

DP HD - Standard Size 1-In Filter

The Airguard® DP® HD - standard size 1-in. filter is the most durable pleated filter in the industry, designed to withstand the most demanding commercial Heating, Ventilation, and Air Conditioning (HVAC) and process filtration environments.

Полное описание продукта

The Airguard® DP® HD - standard size 1-in. filter is the most durable pleated filter in the industry. Designed to withstand the most demanding commercial Heating, Ventilation, and Air Conditioning (HVAC) and process filtration environments. The DP HD outperforms alternatives in efficiency, capacity, and durability.
This extended-surface, heavy-duty filter lasts up to four times longer than standard commercial high-capacity pleated filters, featuring a rugged design for the most demanding HVAC and process applications. In fact, the DP HD will perform to Minimum Efficiency Reporting Value (MERV) 9 throughout the life of the filter.
Features/Benefits:
• Airguard technology for consistent pleat count, height, shape, and spacing
• MERV 9 efficiency rating per American Society of Heating, Refrigerating and Air-Conditioning Engineers Standard 52.2-2012, both before and after filter conditioning
• Low pressure drop with highest dust-loading capacity for maximum performance and energy savings
• Mechanical efficiency
• Water and moisture-resistant media, frame, and adhesive
• Engineered for high strength, rigidity, and durability; 30 percent heavier than standard commercial pleated filters
• Synthetic media that does not support microbial growth
• Independently tested and verified for performance and quality control
• Proprietary, 100 percent thermally bonded synthetic media
• Heavy-duty media, die-cut frame, and wire backing to prevent delaminating, excessive buckling, collapsing, racking, or warping
• 1-in. depth, with 0.16-in. water gauge initial resistance
Applications:
• Any application or air handling system
• Built-up filter banks, central station air handlers, rooftop units, and side access housings
• Pre-filters in multi-stage systems for both HVAC and process air

Характеристики

Применение:	HVAC
Бренд:	Airguard
Тип продукта:	Pleated Filter
Технологии:	Filtration
Соблюдены требования технических условий:	Classified Per UL Standard 900 for Flammability
Глубина:	1.905 cm, 0.75 inch
Для типа жидкости:	Air
Показатель эффективности фильтра:	MERV 9
Расход:	830 to 1040 ft3/min
Высота:	49.53 to 62.23 cm, 24.5 inch
Начальное сопротивление:	0.16 Ω
Промышленность:	Commercial and Industrial
Материалы изготовления:	27 PointMoisture Resistant Beverage Board Frame
Максимальное рабочее давление:	1 inch
Максимальная рабочая температура:	225 °F, 107 °C
Рабочая среда:	Polyester
Область рабочей среды:	5.3 ft2
Номинальное значение в микронах:	≥75% on 3-10 μm
Минимальное рабочее давление:	0 inch
Тип монтажа:	HVAC Frame Systems
Вес:	0.238 to 0.306 kg, 0.525 to 0.676 lb
Ширина:	39.37 to 49.53 cm, 15.5 to 19.5 inch
