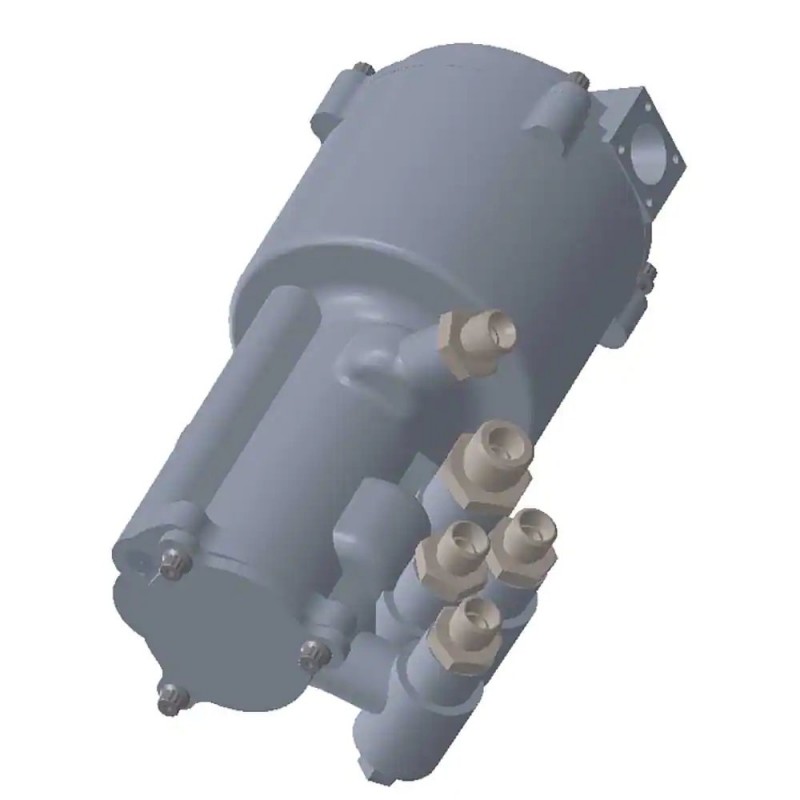

This electric motor-driven scavenge pump assembly is for UAV platforms and ideal for medium and continuous duty; suitable for propulsion or power generation gas turbine engines.
Полное описание продукта
The pump functions as a self-contained variable speed electric motor-driven scavenge pump that scavenges lube oil from bearing sumps. The unit is electric motor driven that does not require a gearbox drive system. The control electronics communicate directly with aircraft electronic controls.APPLICATIONS:
Pump can be used in gas turbine engines as a remote sump auxiliary scavenging system. Product features have ideal applications in the UAV market.
FEATURES AND ATTRIBUTES:
Allows for remote placement of a scavenging pump which is not coupled to the gearbox drive system. Does not extract power from the turbine gearbox drive system.
• Electric motor and speed controller
• Independent Scavenge pump
OPTIONAL FEATURES:
• Input power: 28VDC sinusoidal motor and drive electronics
Характеристики
| Расход: | at 60 psid per scavenge section: 2 Gal/min |
| Тип насоса: | Permanent magnet brushless DC |
| Рабочая скорость: | 0 to 6,000 RPM |
| Тип обратной связи: | Sensorless back EMF |
| Тип датчика: | Speed feedback |
| Тип порта: | -8, (inlet and discharge) |
| Тип монтажа: | Frame/bracket |
| Вес: | 5 to 10 (dry depending on scavenge) lbs |
Характеристики
- Вес
- 5 to 10 (dry depending on scavenge) lbs
- Рабочая скорость
- 0 to 6,000 RPM
- Расход
- at 60 psid per scavenge section: 2 Gal/min
- Тип датчика
- Speed feedback
- Тип монтажа
- Frame/bracket
- Тип насоса
- Permanent magnet brushless DC
- Тип обратной связи
- Sensorless back EMF
- Тип порта
- -8, (inlet and discharge)
