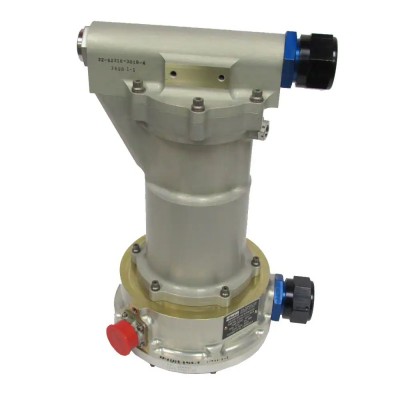

The electric motor-driven pump (EMP) is liquid cooled to increase the efficiency of the motor cooling for aircraft-specific applications, where the flow can be easily adjusted to meet the needs of your application.
Полное описание продукта
The modular electric motor pump (EMP) is a positive-displacement pump designed for aircraft applications using a variety of di-electric fluids. This product is a fixed-speed device and flow can be easily adjusted by changing width of the gerotor to meet the specific application. The maximum-discharge pressure is controlled by a pressure relief valve that can be modified to provide safety margin in the system. The EORU is designed to operate down to -20F.The EMP is designed to work with the engine oil replenishment unit (EORU), another product that can be incorporated into any business jet. The EORU is a 28Vdc system that can accommodate two or three engines and the EORU volume of oil can be customized to accommodate the application
Limiting factors on the EMP are that the fluid must be di-electric to allow for motor cooling. The max pressure and flow are restricted by the max design torque of the motor.
APPLICATIONS:
This product has thermal management systems (TMS) applications that include:
• Electronic cooling systems on military applications
• Supplemental engine oil cooling systems
FEATURES AND ATTRIBUTES:
• Positive-displacement pump designed for aircraft applications using a variety of di-electric fluids
• Fixed-speed device with flow that can be easily adjusted to meet specific applications
• Operates in environments down to -20F
• Maximum-discharge pressure controlled by a pressure-relief valve
OPTIONAL FEATURES:
The pump is designed to accommodate an accumulator.
Характеристики
| Напряжение на входе: | 115VAC 400hz VAC |
| Ток: | Max: 25 amps A |
| Расчетный крутящий момент: | 11.5 in lbs maximum lb-inch |
| Тип гидромотора: | Liquid cooled |
| Расход: | Fixed displacement from 12 to 25 gpm |
| Максимальное рабочее давление: | 150 Psig controlled by a pressure relief valve psig |
| Для типа жидкости: | Di-electric (Mil-L-23699, PAO, Galden, etc.) |
| Рабочая температура: | 20F to 150F °F |
Характеристики
- Для типа жидкости
- Di-electric (Mil-L-23699, PAO, Galden, etc.)
- Максимальное рабочее давление
- 150 Psig controlled by a pressure relief valve psig
- Напряжение на входе
- 115VAC 400hz VAC
- Рабочая температура
- 20F to 150F °F
- Расход
- Fixed displacement from 12 to 25 gpm
- Расчетный крутящий момент
- 11.5 in lbs maximum lb-inch
- Тип гидромотора
- Liquid cooled
- Ток
- Max: 25 amps A
