Артикул: PRK3060

В наличии

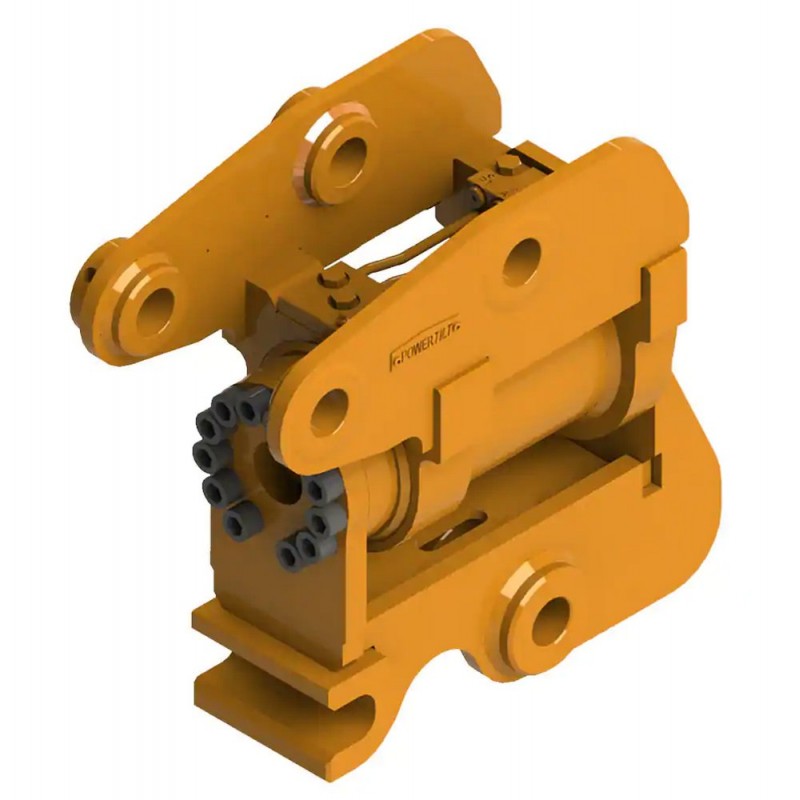

PowerTilt Tilting Coupler - PTNG Series

Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.

Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Не отвечаем 5 минут — скидка на весь заказ!

sale@ru-parker.com

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 134-22-05

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

The Helac PowerTilt tilting coupler, construction equipment attachment, is for excavators and backhoes. Tilt your bucket or attachment up to 180°.

Полное описание продукта

Have a tight work space? Working off a hill? Add a Helac PowerTilt tilting coupler to your machine and eliminate the need for extra machines on the jobsite and increase your productivity over 50%. The new standard for all machines should be the ability to position your bucket up to 180 degrees instead of moving the entire machine. Whether your jobsite requires site development, setting underground utilities, or clearing ditches, the Helac PowerTilt® is the versatile tool for multiple attachments and is engineered for durability and performance. PowerTilt® uses Helac Corporation’s innovative sliding-spline operating technology to convert linear piston motion into powerful shaft rotation. Available for equipment up to 110,000 lbs in nine sizes with standard rotation of up to 180 degrees, each PowerTilt® model is designed for a specific class of machinery and individually customized to fit the carrier.

Markets:
• Agriculture
• Construction
• Material Handling
• Mining

Features/Benefits:
• Tilt any bucket or attachment up to 180 degrees
• Tilt your attachment instead of moving the entire machine
• Reduce manual labor and increase productivity by 50-75%
• Eliminate extra equipment on the jobsite
• Increase the precision of your cut and carefully distribute material
• Eliminate service and maintenance issues with fully enclosed rotary actuator technology

PowerTilt Next Generation Benefits
• Integral Rotary Union for Coupler – Eliminates hoses and hose guards, simplified hose routings
• Reduced Weight – Better stability, decreased fuel costs
• Improved Holding Force – Increased productivity
• Hardened Seal and Bearing Surfaces – Reduced cost of ownership, longer life
• Integrated Cross-Port Relief Valve – Overload protection
• Versatile Coupler Configurations – Available with common couplers, adaptable to a variety of buckets and attachments

PowerTilt Applications:
• Finish grading
• Underground utilities
• Trench safety
• Erosion control
• Metering and fill material
• Road construction and maintenance
• Landscaping
• Brushcutting
• Demolition


Характеристики

Тип продукта:Helical
Угол поворота:180 °
Maximum Machine Weight:4,000 to 110,000 lb, 1,800 to 50,000 kg
Вес:55 to 908 lb, 26 to 411 kg
Drive Torque:8,200 to 392,000 (@ 3,000 psi) lb-inch, 930 to 44,300 (@ 207 bar) Nm
Удерживающий момент:21,900 to 989,500 (@ 3,250 psi relief pressure) lb-inch, 2,470 to 111,800 (@ 225 bar relief pressure) Nm

Технические характеристики PRK3060

Характеристики

Drive Torque
8,200 to 392,000 (@ 3,000 psi) lb-inch, 930 to 44,300 (@ 207 bar) Nm
Maximum Machine Weight
4,000 to 110,000 lb, 1,800 to 50,000 kg
Вес
55 to 908 lb, 26 to 411 kg
Тип продукта
Helical
Угол поворота
180 °
Удерживающий момент
21,900 to 989,500 (@ 3,250 psi relief pressure) lb-inch, 2,470 to 111,800 (@ 225 bar relief pressure) Nm
