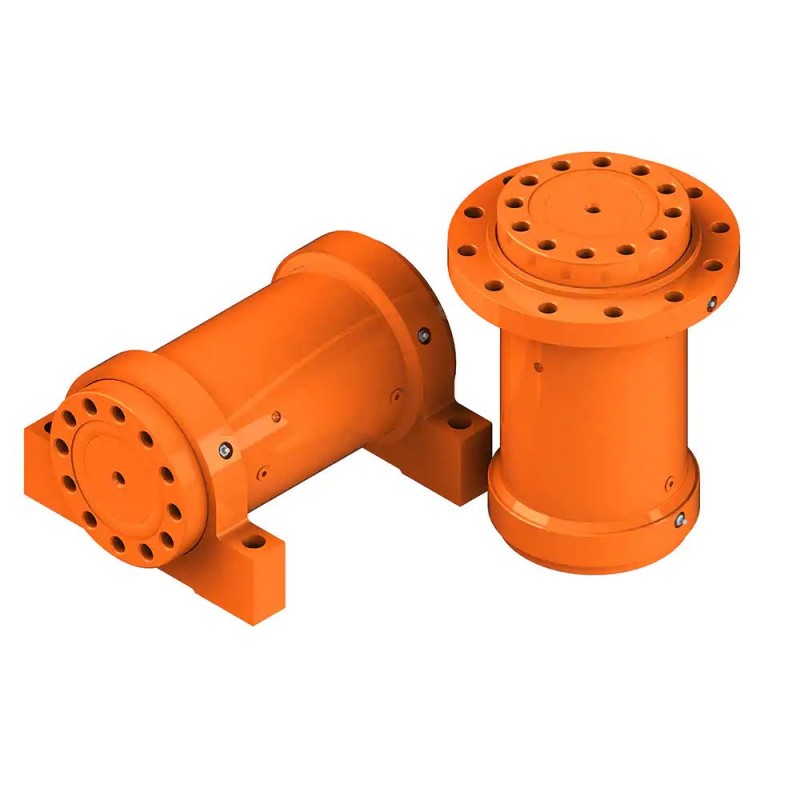

The Helac L30 Series is a heavy duty helical hydraulic rotary actuator that is suitable for harsh environments. Designed for applications that require high bearing capacity, the L30 Series features foot or flange output with 180° or 360° rotation.
Полное описание продукта
Parker Helac L30 Series Helical Hydraulic Actuator is a heavy duty rotary actuator that is suitable for harsh environments. Designed for applications that require high bearing capacity, the L30 Series features foot or flange output with 180-degree or 360-degree rotation. Helac’s helical, sliding spline technology is non self-locking while providing high shock resistance and high-holding torque for demanding applications. Functioning as a rotating device, mounting bracket and load bearing structure the L30 Series eliminates the need for external bearing systems, brakes or locking devices. Nine standard sizes with high torque output up to 380,000 in-lbs at 3,000 psi.
Markets:
Agriculture
Construction
Energy
Marine
Material Handling
Military
Mining
Truck/Trailer
Feature and Benefits:
Powerful – High torque, high bearing capacity
Durable – Moving parts enclosed, suitable for harsh environments
Compact – High power density, fits in tight spaces
Holds Position – Zero internal leakage, smooth operation, no external brake required
Simplifies – Eliminates bearings, linkages & brackets, reduces bill of materials
Backdrives in Overload Conditions – Hydraulic fuse, prevents mechanical damage
Applications:
Steering
Boom positioning
Drill positioning
Conveyor positioning
Blowout Preventer
Davit rotation
Mast / hatch positioning
Access ramp deploy
Attachment rotation
Shotcrete nozzle rotation
Pipe handling
Brush positioning
Tipping and dumping
For over 50 years Helac has led the way in actuator technology and innovation. Our extensive line of compact and powerful rotary actuators offers simple and cost-effective solutions to move, support and position rotating loads in countless applications. Learn more about the performance and benefits of Helical Hydraulic Rotary Actuators under Product Support.
Характеристики
| Тип продукта: | Helical |
| Угол поворота: | 180 and 360 ° |
| Максимальное рабочее давление: | 3,000 psi, 207 bar |
| Drive Torque: | 17,000 to 380,000 lb-inch, 1,921 to 42,940 Nm |
| Удерживающий момент: | 43,600 to 936,000 lb-inch, 4,927 to 105,768 Nm |
| Cantilever Moment: | 45,900 to 570,000 lb-inch, 5,187 to 64,410 Nm |
| Straddle Moment: | 180° rotation: 119,000 to 1,505,000 | 360° rotation: 170,000 to 1,505,000 lb-inch, 180° rotation: 13,447 to 170,065 | 360° rotation: 19,210 to 170,065 Nm |
| Допустимая радиальная нагрузка: | 4,000 to 26,000 lb, 1,814 to 11,794 N |
| Осевая нагрузочная способность: | 3,000 to 18,000 lb, 1,361 to 8,165 N |
| Рабочий объем: | 180° rotation 29.8 to 622 in³ | 360° rotation 60.0 to 732 in³ | 180° rotation 488.3 to 10,192.8 cm³ | 360° rotation 983.2 to 11,995.4 cm³ |
| Вес: | 180° rotation 76.0 to 1,100 | 360° rotation 100 to 1,000lb, 180° rotation 34.5 to 499.0 | 360° rotation 45.4 to 453.6 kg |
| Тип монтажа: | Flange or Foot |
- Cantilever Moment
- 45,900 to 570,000 lb-inch, 5,187 to 64,410 Nm
- Drive Torque
- 17,000 to 380,000 lb-inch, 1,921 to 42,940 Nm
- Допустимая радиальная нагрузка
- 4,000 to 26,000 lb, 1,814 to 11,794 N
- Максимальное рабочее давление
- 3,000 psi, 207 bar
- Осевая нагрузочная способность
- 3,000 to 18,000 lb, 1,361 to 8,165 N
- Тип монтажа
- Flange or Foot
- Тип продукта
- Helical
- Угол поворота
- 180 and 360 °
- Удерживающий момент
- 43,600 to 936,000 lb-inch, 4,927 to 105,768 Nm
