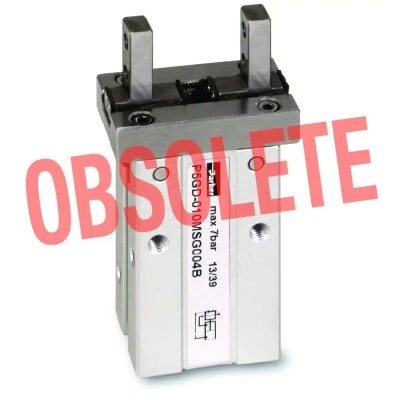

The P5GD is a pneumatically operated parallel double acting gripper in bore sizes Ø10, Ø16, Ø20 and Ø25mm. Integral linear guides provide rigidity and precision for the stainless steel jaw carriers and the anodised aluminium body has mounting points on four sides with integral grooves for sensors.

General Technical Data:
• International Standards : N/A
• Bore Sizes : Ø10, Ø16, Ø20 and Ø25mm
• Total Stroke Length : 4 to 14mm
• Versions : Double acting
• Position Sensing : The P8S family of sensors provides a broad range of reed and solid state sensor types with flying lead or M8 options available. Mounting on all grippers is within the integrated sensor grooves allowing for compact installation.
• Electronic Sensors : Utilise “Solid State” technology, providing operation with no moving parts. These switches are available in NPN and PNP type, both provide built in short circuit and transient protection as standard. The solid state operation allows for high switching on off frequency, ideal for applications where long service life is required.
• Reed Type Sensors : Are based on proven reed switch technology and provide reliable function in many applications. Simple installation and the available AC voltage range are advantages for this range of sensors.
• Installation : Direct mounting.
• Mounting Position : Any
• Maximum Jaw Length : 50 to 100 mm


Operating and Environmental Data:
• Operating Medium : For best possible service life and trouble-free operation dry, filtered compressed air to ISO 8573-1:2010 quality class 3.4.3 should be used. This specifies a dew point of +3°C for indoor operation (a lower dew point should be selected for minus temperature operation and we recommend the use of an inline dryer) and is in line with the air quality from most standard compressors with a standard filter.
• Operating Pressure : 2 to 7 bar (Bore 10mm) / 1.5 to 7 bar (Bores 16mm, 20mm and 25mm)
• Operating Temperature : -10°C to +60°C
• Total Force / Closed Side : 22 to 130 N (at 5 bar)
• Total Force / Open Side : 34 to 208 N (at 5 bar)
• Total Torque / Closed Side : -
• Total Torque / Open Side : -
• Air Consumption (cm³ cycle - open and close) : 0.5 to 14
• Pre-lubricated : Further lubrication is normally not necessary. If additional lubrication is introduced it must be continued.
• Corrosion Resistance : Resistance to corrosion and chemicals.


Material Specification - Cylinder:
• Body : Aluminium alloy
• Jaw Carrier : Stainless steel
• Piston : Aluminium alloy
• Seals : NBR (Nitrile rubber)
• Piston Rod : Stainless steel

Характеристики

Тип продукта:	Parallel Gripper
Функция:	Double Acting
Диаметр отверстия:	10mm | 16mm | 20mm | 25mm
Максимальная длина хода:	4 to 14 mm
Усилие захвата:	22 to 130 N
Размер порта:	M3 | M5
Рабочее давление:	1.5 to 7 bar, 21.76 to 101.5 psi
Рабочая температура:	-10° to +60° °C, +14° to +140° °F
Тип отслеживания положения:	Yes
Тип поршня:	Magnetic Piston
Материал корпуса:	Aluminium Alloy
Материал захвата:	Stainless Steel
Воспроизводимость:	±: 0.01 mm
Время отклика:	15 to 70 (min. closing) ms
Вес:	0.055 to 0.45 kg
Предусмотрено коррозионно-стойкое исполнение:	Yes
Максимальная рабочая частота:	3 Hz
Ремонтопригодный:	No
