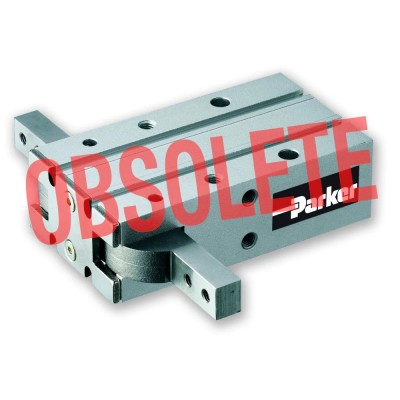

The P5GL is a pneumatically operated 180° angular gripper of compact size and lightweight construction with a closed angle of -3° and an open angle of 180°. Available in bore sizes Ø10, Ø16, Ø20 and Ø25 with double acting mechanism, this gripper is suitable for internal or external gripping applications. The anodised body has mounting points on four sides and sensors can be fitted in any of the four integral grooves.

General Technical Data:
• International standards : N/A
• Bore Sizes : Ø10, Ø16, Ø20 and Ø25mm
• Total Stroke Angle : -3° to +180°
• Versions : Double acting
• Position sensing : The P8S family of sensors provides a broad range of reed and solid state sensor types with flying lead or M8 options available. Mounting on all grippers is within the integrated sensor grooves allowing for compact installation.
• Electronic sensors : Utilise “Solid State” technology, providing operation with no moving parts. These switches are available in NPN and PNP type, both provide built in short circuit and transient protection as standard. The solid state operation allows for high switching on off frequency, ideal for applications where long service life is required.
• Reed type sensors : Are based on proven reed switch technology and provide reliable function in many applications. Simple installation and the available AC voltage range are advantages for this range of sensors.
• Installation : Direct mounting.
• Mounting Position : Any
• Maximum Jaw Length : 60 to 90 mm


Operating and Environmental Data:
• Operating Medium : For best possible service life and trouble-free operation dry, filtered compressed air to ISO 8573-1:2010 quality class 3.4.3 should be used. This specifies a dew point of +3°C for indoor operation (a lower dew point should be selected for minus temperature operation and we recommend the use of an inline dryer) and is in line with the air quality from most standard compressors with a standard filter.
• Operating Pressure : 1 to 6 bar
• Operating Temperature : -10°C to +60°C
• Total Force / Closed Side : 11 to 152 N (at 5 bar)
• Total Force / Open Side : n/a
• Total Torque / Closed Side : 0.32 to 4.56 Nm (at 5 bar)
• Total Torque / Open Side : n/a
• Air Consumption (cm³ cycle - open and close) : 2 to 28
• Pre-lubricated : Further lubrication is normally not necessary. If additional lubrication is introduced it must be continued.
• Corrosion Resistance : Resistance to corrosion and chemicals.


Material Specification - Cylinder:
• Body : Aluminium alloy

Характеристики

Тип продукта:	180° Angular Gripper
Функция:	Double Acting
Диаметр отверстия:	10mm | 16mm | 20mm | 25mm
Угол срабатывания:	-3 to +180 °
Усилие захвата:	11 to 152 (at 5 bar) N
Размер порта:	M5
Рабочее давление:	1 to 6 bar, 21.76 to 87.02 psi
Рабочая температура:	-10° to +60° °C, +14° to +140° °F
Тип отслеживания положения:	Yes
Тип поршня:	Magnetic Piston
Материал корпуса:	Aluminium Alloy
Материал захвата:	Stainless Steel
Воспроизводимость:	±0.02°
Время отклика:	100 to 150 (min. closing) ms
Вес:	0.080 to 0.600 kg
Предусмотрено коррозионно-стойкое исполнение:	Yes
Максимальная рабочая частота:	1 Hz
Ремонтопригодный:	No
