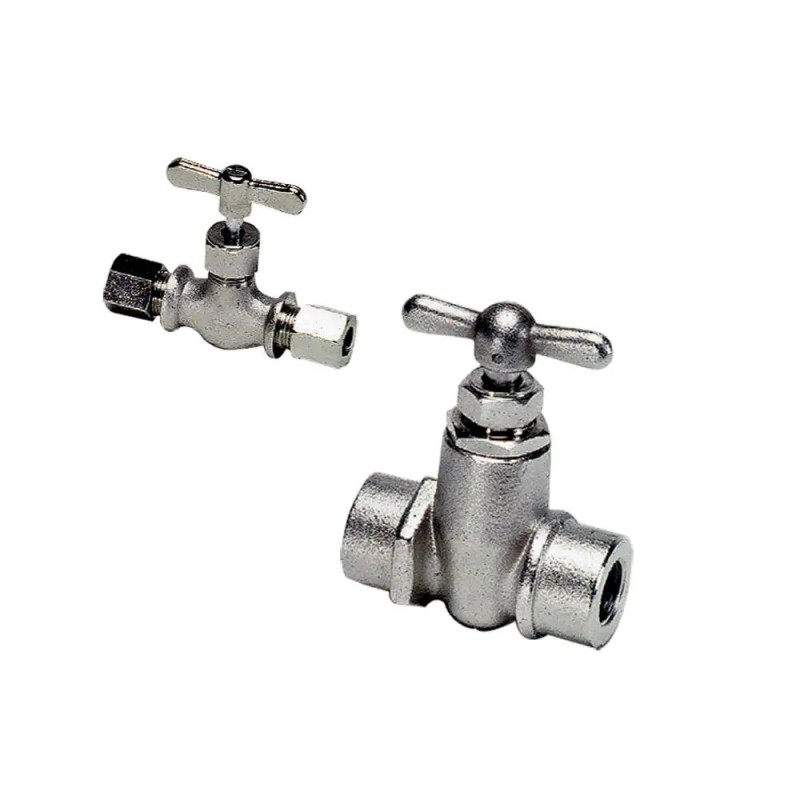

Needle Valves

Parker Legris compact needle valves can be installed in any system and are designed for applications requiring accurate leak-free fluid control and excellent service life.

Полное описание продукта

Parker Legris compact needle valves can be installed in any system and are designed for applications requiring accurate leak-free fluid control and excellent service life.

Features/Benefits:

- Robust and Easy-to-Use

• Accurate flow control
• Forged brass for improved long-term mechanical strength
• Robust stem for good operational reliability
• Corrosion resistance

- Wide range

• Two materials (nickel-plated brass and stainless steel) suitable for many applications
• Numerous valve and safety accessory configurations

Markets:

• Packaging
• Wearing Apparel
• Lumber & Wood
• Rubber & Tire Processing
• Plastic Processing
• Water
• Rail

Applications:

• Allow/Stop Fluid Circulation on Industrial Circuits with Accuracy
• Suitable for Slightly Corrosive Industrial Fluids

Technologies:

• Pressure relief valve
• Industrial valves
• Gauge valve
• Brass needle valve
• Stainless steel needle valve

Technical Characteristics:

• Fluids:
Brass: Compressed air, water, industrial fluids, etc. Other fluids: contact us
Stainless steel: Many fluids
• Materials: zamk, nickel-plated brass or 316L stainless steel, mineral fibre, nickel-plated shot-blasted brass or stainless steel, silicone free
• Pressure:
Brass: 0 to 120 bar
Stainless steel: 0 to 400 bar
• Temperature:
Brass: -20°C to +100°C (except model 0510)
Stainless steel: -20°C to 180°C

Regulations:

• DI: 97/23/EC (module PED A - diameters greater than 25 mm)
• DI: 2006/42/EC (Machinery Directive)
• DI: 2002/95/EC (RoHS)
• RG: 1907/2006 (REACH)

Product Types:

• In-Line Needle Valve, Female BSPP Thread
• In-Line Needle Valve, Male/Female BSPP Thread
• In-Line Needle Valve with Compression Connections
• Right-Angle Needle Valve, Female BSPP Thread
• Right-Angle Needle Valve, Male/Female BSPP Thread
• Needle Drain Valve, Male BSPP and Metric Thread
• Needle Drain Valve, Male NPT Thread
• Automatic Vent Pressure Gauge Valve, Female BSPP Thread
• Pressure Relief Valve, Male BSPP Thread
• Needle Valve, Female BSPP Thread

Характеристики

Бренд:	Legris
Подразделение:	Low Pressure Connectors Europe Division
Промышленность:	Industrial Manufacturing Equipment
Применение:	Pneumatics, Water Circuits, Machine Tools, Rubber Industry, Packaging, Textile
Технологии:	Fluid & Gas Handling, Process Control, Pneumatics
Тип продукта:	Needle Valves
Модель продукта:	Automatic Vent Pressure Gauge Female Valve, Pressure Relief Male Valve, Drain Male Valve, Female Needle Valve, Needle Valve with Brass Compression Fitting, Male and Female Needle Valve
Серия продуктов:	Brass Needle Valves, Stainless Steel Needle Valves
Функция:	2-way
Тип эксплуатации:	Lever-operated, Pressure-piloted
Максимальное рабочее давление:	10 to 400 bar, 1 to 40 MPa, 145 to 5802 psi
Расход:	6.98 Nl/m at 6 bar (H20) to 22.98 Nl/m at 6 bar (H20)
Количество портов:	n/a
Тип соединения:	BSPP, NPT, Metric, Compression Fittings
Присоединительный размер:	G1/8 to G1/2, M10x1
Типоразмер диафрагмы:	3 to 10 mm
Конфигурация:	n/a
Для типа жидкости:	Air, Water, Inert Gas, Oil
Максимальная рабочая температура:	100 °C, 212 °F
Минимальная рабочая температура:	-20 °C, -4 °F
Тип монтажа:	In-line
Тип срабатывания:	Manual
Соблюдены требования технических условий:	DI: 97/23/EC (module PED A - diameters greater than 25 mm)
Количество циклов за срок службы:	n/a
Материал корпуса:	Nickel Plated Brass, Brass, Stainless Steel 316L
Материал уплотнения:	NBR, PTFE, Mineral Fiber
Материал седла:	n/a
Вес:	0.021 to 0.483 kg, 0.046 to 1.062 lb
Количество в одной коробке:	1 to 10
Страна происхождения:	France, Italy
Тип ручки:	Push-button Lever (Stainless Steel), Butterfly Lever (Brass), Butterfly Lever (Stainless Steel), Butterfly Lever (Nickel Plated Brass)
Материал рукава:	Brass
