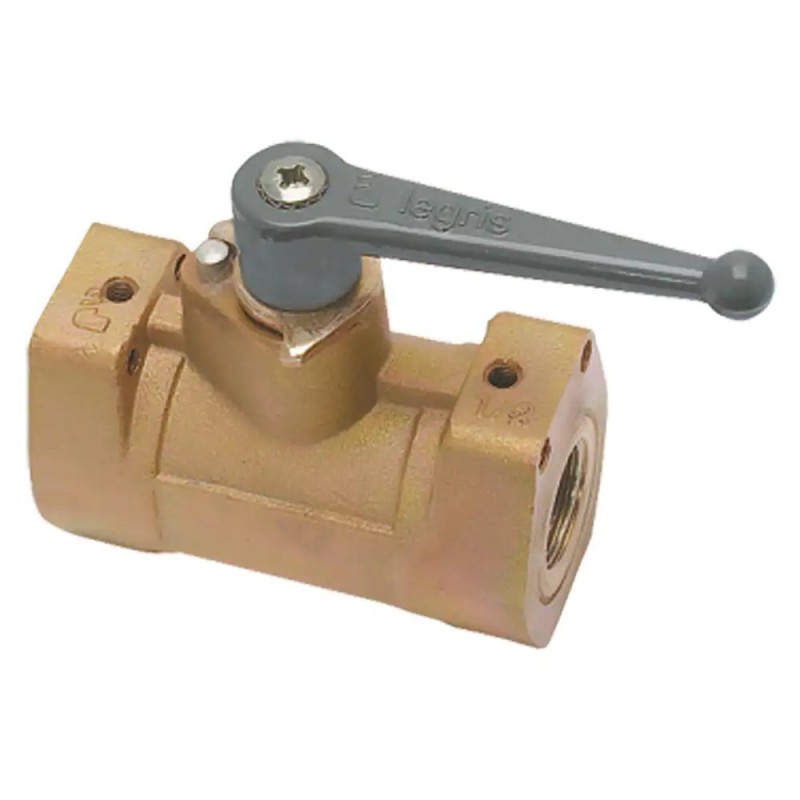

Ball Valves High Pressure Series

These valves are suitable for applications with pressures up to 300 bar.High performance materials and quality manufacturing allow for a wide range of operating pressures and temperatures.

Полное описание продукта

These valves are suitable for applications with pressures up to 300 bar.

High performance materials and quality manufacturing allow for a wide range of operating pressures and temperatures.

Features/Benefits:

- High Pressure & Safety

• Good sealing at low and high pressure
• Robust design with secure, non-removable inlet and outlet ports
• Forged brass providing excellent long-term strength under severe conditions of use
• 100% leak-tested in production
• Date coding to guarantee quality and traceability

- Easy-to-Use

• Fixing screws for through-bulkhead mounting
• The lever may be repositioned or replaced with a handwheel
• Low operating torque

Markets:

• Vehicle Assembly Facilities
• Primary Metal Refining and Processing
• Wearing Apparel
• Power Generation Equipment

Applications:

• Allow/Stop Compressed Air Circulation for High Pressure Applications
• Suitable for Vacuum Applications
• Deep-Sea Diving

Technologies:

• Industrial valve
• High pressure valve
• High pressure ball valve
• Pressure regulator valve
• High pressure equipment
• Regulating valve
• Pneumatic ball valve
• Pneumatic valve

Technical Characteristics:

• Fluids: Compressed air
• Materials: zamak, PTFE, treated steel, polished brass, NBR, dichromate-treated zinc-plated brass, stainless steel, silicone free
• Pressure: Vacuum to 300 bar
• Temperature: -15°C to +80°C

Regulations:

• DI: 97/23/EC (module PED A - diameters greater than 25 mm)
• DI: 2006/42/EC (Machinery Directive)
• DI: 2002/95/EC (RoHS)
• RG: 1907/2006 (REACH)

Product Types:

• 2/2 In-Line High Pressure Ball Valve, Female BSPP Thread

Характеристики

Максимальный расход:	n/a
Бренд:	Legris
Подразделение:	Low Pressure Connectors Europe Division
Промышленность:	Industrial Manufacturing Equipment
Применение:	Pneumatic, Process Control, Safety, Fluid Control, Automotive Process, Foundry, Forming, Machine Tools, Textile, Spectacle-Making Industry, Turbines, Deep-Sea Diving, Fluid & Gas Handling, Process Control, Pneumatics, Process Control, Safety, Fluid Control, Automotive Process, Foundry, Forming, Machine Tools, Textile, Spectacle-Making Industry, Turbines, Deep-Sea Diving, Fluid & Gas Handling, Process Control, Pneumatics
Технологии:	Fluid & Gas Handling, Process Control, Pneumatics
Тип продукта:	Ball Valves
Модель продукта:	Female Ball Valves
Серия продуктов:	High Pressure Series
Функция:	2-Way
Тип эксплуатации:	Lever-operated
Форма:	In-line
Максимальное рабочее давление:	300 bar, 30 MPa, 4350.9 psi
Расход:	n/a
Тип соединения:	BSPP
Присоединительный размер:	G1/4 to G3/8
Типоразмер диафрагмы:	7 to 10 mm
Конфигурация:	2/2
Для типа жидкости:	Air, Inert Gas
Минимальная рабочая температура:	-15 °C, 5 °F
Максимальная рабочая температура:	80 °C, 176 °F
Тип монтажа:	In-line
Тип срабатывания:	Manual
Соблюдены требования технических условий:	DI: 97/23/EC (module PED A - diameters greater than 25 mm), DI: 2006/42/EC (Machinery Directive), RoHS, REACH
Материалы изготовления:	Treated Brass
Материал корпуса:	Treated Brass
Материал седла:	NBR
Материал уплотнения:	NBR
Материал штока:	Stainless Steel
Материал шарика:	Brass
Материал уплотнительного кольца:	NBR
Тип ручки:	Grey long lever (ZAMAK)
Вес:	0.402 to 0.87 kg, 0.804 to 1.714 lb
Количество в одной коробке:	2 to 5
Страна происхождения:	France
Рабочее давление:	Vacuum to 300 bar
Материал уплотнения штока:	PTFE
Материал уплотнения шарика:	NBR
