Cryogenic Globe Valves

Parker Bestobell's cryogenic globe valves feature an innovative loose flange bolted bonnet design that allows for thermal expansion and contraction, therefore eliminating leakage at the bonnet gasket.

Полное описание продукта

Parker Bestobell provides a wide range of high performance cryogenic globe valves, which feature a unique loose flange bolted bonnet design. The design allows for thermal expansion and contraction, therefore eliminating the risk of leakage at the bonnet gasket.
Extremely durable, these valves deliver smooth operation and reduced closing torque by use of a PTFE anti-friction disc between the valve spindle and the disc assembly.

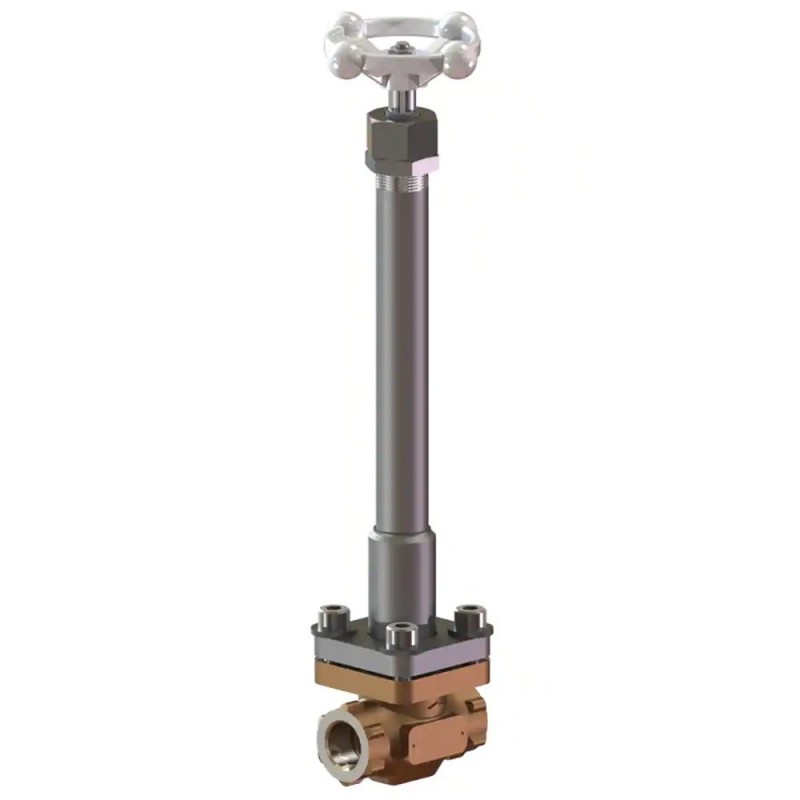

Extended spindle valves are available for liquid service, along with standard spindle lengths for use on ambient gas requirements.
The range is available with an actuated option, using compressed air to open and a spring to close. Double actuation is available upon request.

Markets:
Industrial Gas

Features / Benefits:
• Unique Parker Bestobell loose flange bolted bonnet design. This allows for thermal expansion and contraction and eliminates leakage at the bonnet gasket.
• Designed and engineered specifically for cryogenic service.
• Anti-blowout stem design for operator safety.
• Revolving disc ensures non-rotating seat contact for an extended leak-free life.
• Long life spring loaded gland packing.
• Available in Bronze or Stainless Steel.

Applications:
• Transport
• Storage
• Defence
• Processing

Liquid / Gas Type:
• Oxygen (O2)
• Nitrogen (N2)
• Argon (Ar)
• Carbon Dioxide (CO2)
• Krypton (Kr)
• Neon (Ne)
• Hydrogen (H2)
• Nitrous Oxide (N2O)
• Sulphur Hexafluoride (SF6)
• Natural Gas (CH4)
• Ethylene (C2H4)
• Trifluoromethane (CHF3)

Характеристики

Диаметр:	DN6-DN200 nom
Тип соединения:	BSP-PL, BSP-TR, Butt Weld Schedule 10, NPT, Socket Weld, Stainless Steel Stubs, Flange Class 150, Flange Class 300
Тип штока:	Extended, Non Extended
Длина штока:	230-700 mm
Материал корпуса:	Bronze, Stainless Steel, Stainless Steel with Bronze Internals
Тип клапана:	Manual, Actuated
Максимальное рабочее давление:	725 psi, 50 bar
Минимальная рабочая температура:	-196 °C
Максимальная рабочая температура:	+65 °C
Вес:	1.5-210 kg
Расход:	3.6-400 Gal/min
Тип седла:	Cone
Тип крышки:	Bolted
