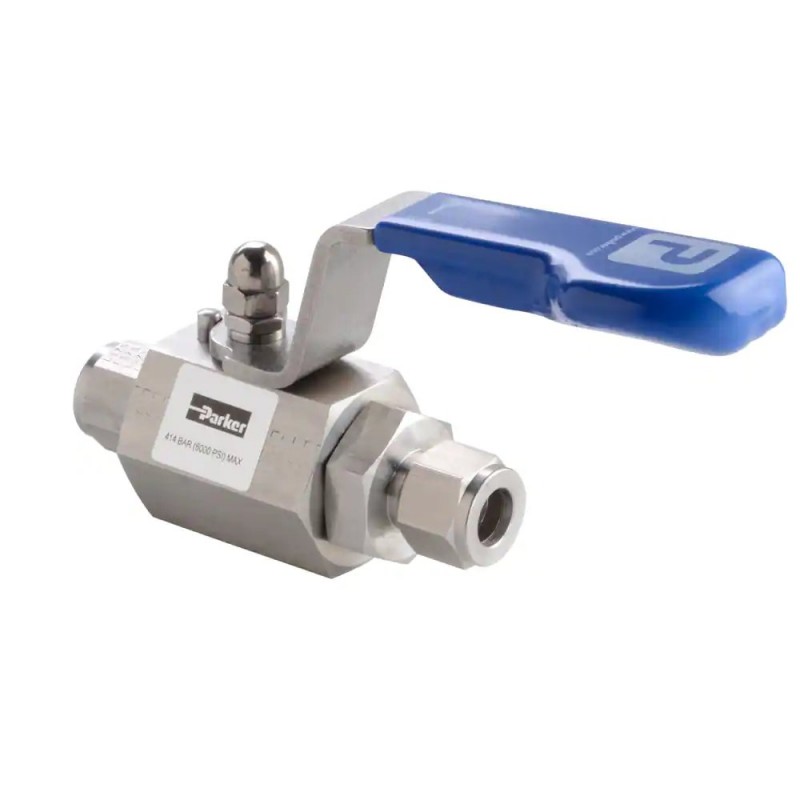

Parker's high performance two piece bi-directional instrumentation Hi-Pro ball valves offer the user full cold working pressure ratings up to 10,000 PSI (689 Bar)
Полное описание продукта
Parker's high performance two piece bi-directional instrumentation Hi-Pro ball valves offer the user full cold working pressure ratings up to 10,000 PSI (689 Bar), giving 100% bubble tight shut off and continuous repeatable performance. The instrumentation ball valves are suitable for the most demanding applications and meet the requirements of ANSI B31.1 for use in power plants. By offering a true two piece design, body leakage paths are reduced to a minimum. With the added opportunity to select integral compression ends the user can eliminate the use of taper threads and thread sealant. This avoids system contamination, reduces leakage paths, installation costs, weight and space.Industries:• Oil & Gas• Chemical Processing• Trucks & Buses• Semiconductor• Industrial Gas• Power Generation & Renewable Energy
Features/Benefits:• Two piece body design - minimal leakage paths• 4:1 Pressure boundary designed safety factor• Bubble tight shutoff• Floating ball principal with dynamic response seats featuring inherent self relief• Anti blowout stem• Low torque operation• PTFE Packing with PEEK Seats• Full hydrostatic and low pressure air tested• Connector thread environmentally sealed• Anti static
Applications• Instrumentation Hook-up Systems• Analytical Installations• Hydrogen Service• Offshore Control Panels• Sensing Lines
Характеристики
| Тип срабатывания: | Manual |
| Материал корпуса: | 316 Stainless Steel, 6Mo, Alloy 400, Alloy 625, Alloy C-276, Super Duplex, Duplex |
| Конфигурация: | N/A |
| Присоединительный размер: | 1/4 inch, 3/8 inch, 1/2 inch, 5/8 inch, 3/4 inch, 7/8 inch, 1 inch, 6 mm, 8 mm, 10 mm, 12 mm, 16 mm, 18 mm, 20 mm, 22 mm, 25 mm |
| Тип соединения: | Female NPT, Male NPT, Female BSPT, Single Ferrule Compression Fitting, Two Ferrule Compression Fitting |
| Функция: | N/A |
| Тип ручки: | N/A |
| Максимальный расход: | N/A |
| Максимальное рабочее давление: | 10,000 psi, 689.0 bar |
| Максимальная рабочая температура: | N/A |
| Минимальная рабочая температура: | N/A |
| Тип монтажа: | In-line/Bodies |
| Тип эксплуатации: | N/A |
| Типоразмер диафрагмы: | 10 mm, 15 mm, 20 mm, 25 mm |
| Тип продукта: | Ball Valve |
| Материал уплотнения: | N/A |
| Материал седла: | PTFE, PEEK |
| Форма: | Ball |
Характеристики
- Конфигурация
- N/A
- Максимальная рабочая температура
- N/A
- Максимальное рабочее давление
- 10,000 psi, 689.0 bar
- Максимальный расход
- N/A
- Материал корпуса
- 316 Stainless Steel, 6Mo, Alloy 400, Alloy 625, Alloy C-276, Super Duplex, Duplex
- Материал седла
- PTFE, PEEK
- Материал уплотнения
- N/A
- Минимальная рабочая температура
- N/A
- Присоединительный размер
- 1/4 inch, 3/8 inch, 1/2 inch, 5/8 inch, 3/4 inch, 7/8 inch, 1 inch, 6 mm, 8 mm, 10 mm, 12 mm, 16 mm, 18 mm, 20 mm, 22 mm, 25 mm
- Тип монтажа
- In-line/Bodies
- Тип продукта
- Ball Valve
- Тип ручки
- N/A
- Тип соединения
- Female NPT, Male NPT, Female BSPT, Single Ferrule Compression Fitting, Two Ferrule Compression Fitting
- Тип срабатывания
- Manual
- Тип эксплуатации
- N/A
- Типоразмер диафрагмы
- 10 mm, 15 mm, 20 mm, 25 mm
- Форма
- Ball
- Функция
- N/A
