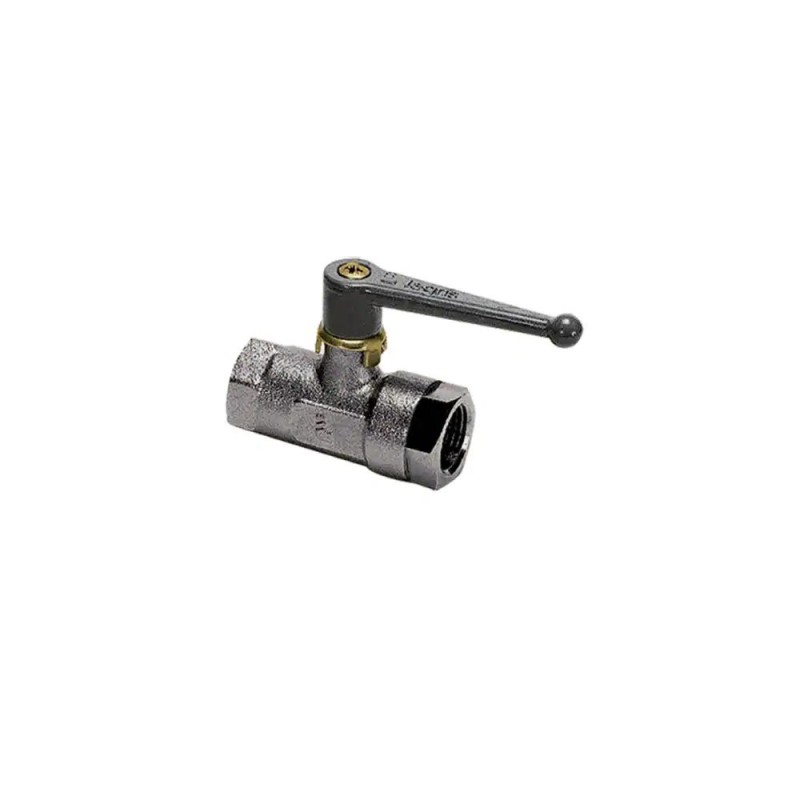

Ball Valves Universal Series

This range of valves has patented seal wear compensating technology for reliable and durable sealing, protecting any system whether under pressure or vacuum.

Полное описание продукта

This range of valves has patented seal wear compensating technology for reliable and durable sealing, protecting any system whether under pressure or vacuum.

Features/Benefits:

- Durability & reliability

• Automatic seal wear compensation for long-term reliability
• Robust, corrosion-resistant materials
• 100% leak-tested in production
• Date coding to guarantee quality and traceability

- Versatility & Performance

• Ideal for ensuring the performance of pneumatic circuits
• Customised valves for all special applications
• Unequalled performance under vacuum
• Smooth operation thanks to self-lubricating seals
• Large range of working pressures and temperatures
• Lever can be repositioned and replaced
• Many configurations to satisfy all system requirements

Markets:

• Packaging
• Wearing Apparel
• Lumber & Wood
• Rubber & Tire Processing
• Plastic Processing
• Rail

Applications:

• Allow/Stop Fluid Circulation on Industrial Circuits
• Suitable for Slightly Corrosive Industrial Fluids
• Suitable for Vacuum Applications

Technologies:

• Industrial valves
• Corrosion resistant
• Pneumatic circuits
• Pneumatic systems

Technical Characteristics:

• Fluids: Industrial fluids
• Materials: brass, galvanised steel, treated zamak, NBR, nickel-plated brass, nickel-plated shot-blasted brass, nickel-plated polished brass, silicone free
• Pressure: Vacuum to 40 bar
• Temperature: -20°C to +80°C

Regulations:

• DI: 97/23/EC (module PED A - diameters greater than 25 mm)
• DI: 2006/42/EC (Machinery Directive)
• DI: 2002/95/EC (RoHS)
• RG: 1907/2006 (REACH)

Product Types:

• 2/2 In-Line Ball Valve, Female BSPP Thread
• 2/2 In-Line Ball Valve, Male/Female BSPP Thread
• 2/2 In-Line Ball Valve, Male BSPP Thread
• 2/2 In-Line Ball Valve with Connections for Use with Steel Tube
• 2/2 In-Line Ball Valve with Compression Connections
• 2/2 In-Line Panel-Mountable Ball Valve, Female BSPP Thread
• 2/2 In-Line Ball Valve for Screw Fixing, Female BSPP Thread
• 2/2 In-Line Ball Valve for Screw Fixing, Male/Female BSPP Thread
• 2/2 Right-Angled Ball Valve, Female BSPP Thread
• 2/2 Right-Angled Ball Valve, Male/Female BSPP Thread
• 3/3 Right-Angle Ported Ball Valve, Female BSPP Thread
• 3/3 Right-Angle Ported Ball Valve without Closed Position, Female BSPP Thread
• 3/2 Panel-Mountable Right-Angled Ball Valve, Female BSPP Thread
• 3/2 Panel-Mountable Equal Plane Ball Valve, Female BSPP Thread
• 3/2 In-Line Vented Ball Valve, Female BSPP and Metric Thread
• 3/2 Panel-Mountable In-Line Ball Valve, Female BSPP and Metric Thread
• 3/2 In-Line Vented Ball Valve, Female BSPP Thread
• 3/2 Right-Angled Ball Valve with Vent, Female BSPP Thread
• 3/2 Right-Angled Ball Valve with Vent, Male/Female BSPP Thread
• 2/2 In-Line Lockable Ball Valve, Female BSPP Thread
• 3/2 In-line Vented Lockable Ball Valve, Female BSPP Thread
• 3/2 In-Line Lockable Ball Valve with Threaded Exhaust Port, Female BSPP and Metric Thread
• 3/2 In-line Vented 3-Point Lockable Ball Valve, Female BSPP Thread
• 3/2 Right-Angled 3-Point Lockable Ball Valve, Female BSPP Thread

Характеристики

Для типа жидкости:	Water, Inert Gas, Air, Industrial fluids
Типоразмер диафрагмы:	4 to 40 mm
Серия продуктов:	Universal Series
Промышленность:	Industrial Manufacturing Equipment
Присоединительный размер:	G1/8 , G1/4 , G3/8 , G1/2 , G3/4 , G1 , G1 1/4 , G1 1/2 , NPT1/4 , NPT3/8 , NPT1/2 inch
Максимальная рабочая температура:	80 °C, 176 °F
Максимальный расход:	n/a L/min
Конфигурация:	2/2 , 3/2 , 3/3
Минимальная рабочая температура:	-20 °C, -4 °F
Тип монтажа:	Screw fixing , In-Line , Panel-Mountable
Тип срабатывания:	Manual
Тип ручки:	Grey long lever (ZAMAK) , Red long lever (ZAMAK)
Максимальное рабочее давление:	Vacuum to 40 bar, Vacuum to 580.16 psi, Vacuum to 4 MPa
Форма:	Right angled , In-line
Применение:	Pneumatics, Process Control, Safety, Fluid Control
Тип продукта:	Ball Valves
Технологии:	Fluid & Gas Handling, Process Control, Pneumatics
Функция:	2-Way , 3-Way
Материал штока:	Brass , Nickel Plated Brass
Подразделение:	Low Pressure Connectors Europe Division
Материал шарика:	Nickel Plated Brass , Chemical Nickel Plated Brass , Polish Nickel Plated Brass
Материал уплотнительного кольца:	NBR , EPDM , FKM
Материал уплотнения:	NBR , EPDM , FKM
Вес:	0,112 to 1,295 kg, 0,224 to 2,390 lb
Расход:	n/a L/min
Бренд:	Legris
Тип соединения:	BSPP , Compression fittings
Материал седла:	Rilsan Graphited , PTFE
Материал уплотнения штока:	NBR , EPDM , FKM
Материал корпуса:	Nickel Plated Brass
Тип эксплуатации:	Lever-operated
Страна происхождения:	France
Модель продукта:	Female Ball Valve for Screw fixing , Female Ball Valve , Ball Valve with Steel Compression Fitting , Lockable Female Ball Valve , Vented 3 point lockable Female Ball Valve , 3 point lockable Female Ball Valve , Vented lockable Female Ball Valve , Panel mountable Female Ball Valve , Vented panel mountable Female Ball Valve , Vented Male and Female Ball Valve , Vented Female Ball Valve , Male and Female Ball Valve , Female Ball Valve without Closed position , Vented (Thread M5x0.8) Female Ball Valve , Vented (Thread G1/8) Female Ball Valve , Vented (Thread G1/4) Female Ball Valve , Male Ball Valve , Ball Valve with Brass Compression Fitting , Plane panel mountable Female Ball Valve , Female Ball Valve without Closed position ,
Количество в одной коробке:	1 to 40
Материал уплотнения шарика:	NBR , EPDM , FKM
Соблюдены требования технических условий:	DI: 97/23/EC (module PED A - diameters greater than 25 mm) , DI: 2006/42/EC (Machinery Directive) , RoHS , REACH
