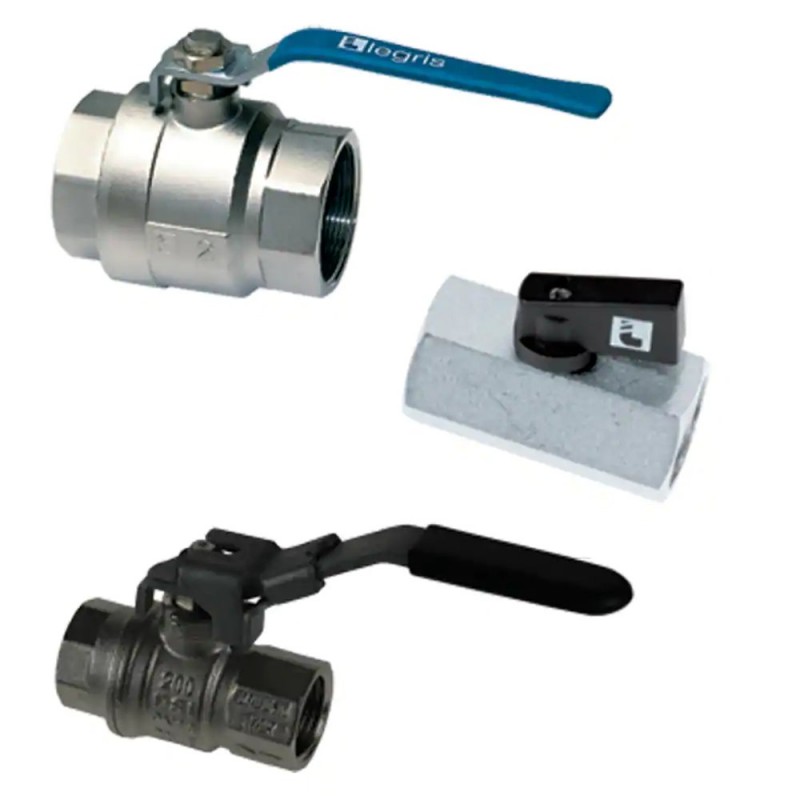

Ball Valves Standard Series

This range of valves with fluoropolymer seals, available in compact, standard and lockable series, covers many industrial applications for which the fluids conveyed and working temperatures require this seal material.

Полное описание продукта

This range of valves with fluoropolymer seals, available in compact, standard and lockable series, covers many industrial applications for which the fluids conveyed and working temperatures require this seal material.

Features/Benefits:

- Optimised Installation

• Full fluid flow
• Long or butterfly lever
• Corrosion resistance
• A lockable version for operational safety
• Good value/performance ratio

- Wide Compatibility

• Numerous compatible fluids
• Can be used for low and medium pressure applications
• Surface treatment for corrosion protection

Markets:

• Machine Tools
• Agricultural Machinery
• Wearing Apparel
• Plumbing
• Air Conditioning
• Heating

Applications:

• Allow/Stop Industrial Fluids Circulation on Industrial Circuits
• Suitable for Low and High Temperatures

Technologies:

• Industrial valves
• Lockable valve
• Standard valve
• Compact valve
• Corrosion resistance
• Ball valve manufacturer

Technical Characteristics:

• Fluids: Compressed air, gas, water, water vapour, oil and all fluids compatible with the component materials
• Materials: steel with plastic sleeve, technical polymer, treated zamak, treated steel, PTFE, galvanised steel, nickel-plated brass, nickel-plated or chromium-plated shot-blasted brass, nickel-plated or hard chromium-plated brass, FPM, silicone free
• Pressure:
Standard and Lockable Series: 0 to 40 bar
Compact series: 0 to 35 bar
• Temperature:
Standard and Lockable Series: -20°C to +130°C
Compact series: -10°C to +90°C

Regulations:

• DI: 97/23/EC (module PED A - EC diameters greater than 25 mm)
• DI: Machinery Directive 2006/42/EC
• DI: 2002/95/EC (RoHS)
• RG: 1907/2006 (REACH)
• DI: 89/392/EC

Product Types:

• 2/2 Standard In-Line Ball Valve, Female BSPP Thread
• 2/2 Standard Compact In-Line Ball Valve, Male/Female BSPP Thread
• 2/2 Standard Compact In-Line Ball Valve, Female BSPP Thread
• 2/2 In-Line Lockable Ball Valve, Female BSPP Thread
• 2/2 In-Line Lockable Vented Ball Valve, Female BSPP Thread

Характеристики

Бренд:	Legris
Подразделение:	Low Pressure Connectors Europe Division
Промышленность:	Industrial Manufacturing Equipment
Применение:	Pneumatics, Process Control, Safety, Fluid Control, Agricultural Machinery, Textile, Plumbing, Air Conditioning, Heating
Технологии:	Fluid & Gas Handling, Process Control, Pneumatics
Тип продукта:	Ball Valves
Модель продукта:	Female Ball Valve, Male and Female Compact Ball Valve, Female Compact Ball Valve, Vented Lockable Female Ball Valve
Серия продуктов:	Standard Series
Функция:	2-Way
Тип эксплуатации:	Lever-operated
Форма:	In-line
Максимальное рабочее давление:	40 bar, 4 MPa, 580 psi
Расход:	n/a
Тип соединения:	BSPP
Присоединительный размер:	G1/8 to G4
Типоразмер диафрагмы:	6 to 100 mm
Конфигурация:	2/2
Для типа жидкости:	Gas, Water, Water Vapour, Oil, All fluids compatible with the component materials
Минимальная рабочая температура:	-20 °C, -4 °F
Максимальная рабочая температура:	170 °C, 338 °F
Тип монтажа:	In-line
Тип срабатывания:	Manual
Соблюдены требования технических условий:	DI: 97/23/EC (module PED A - diameters greater than 25 mm), DI: 2006/42/EC (Machinery Directive), RoHS, REACH
Материал корпуса:	Nickel Plated Brass, Chrome Plated Brass
Материал седла:	PTFE
Материал уплотнения:	PTFE
Материал штока:	Nickel Plated Brass, Brass
Материал шарика:	Nickel Plated Brass, Chrome Plated Brass
Материал уплотнительного кольца:	PTFE, FPM
Тип ручки:	Blue long lever (Treated Steel), Black short lever (Polymer), Yellow butterfly lever (treated aluminium), Black long lever (treated steel), Red long lever (Treated Steel)
Вес:	0.082 to 9.04 kg, 0.180 to 9.900 lb
Количество в одной коробке:	1 to 20
Страна происхождения:	Italy
