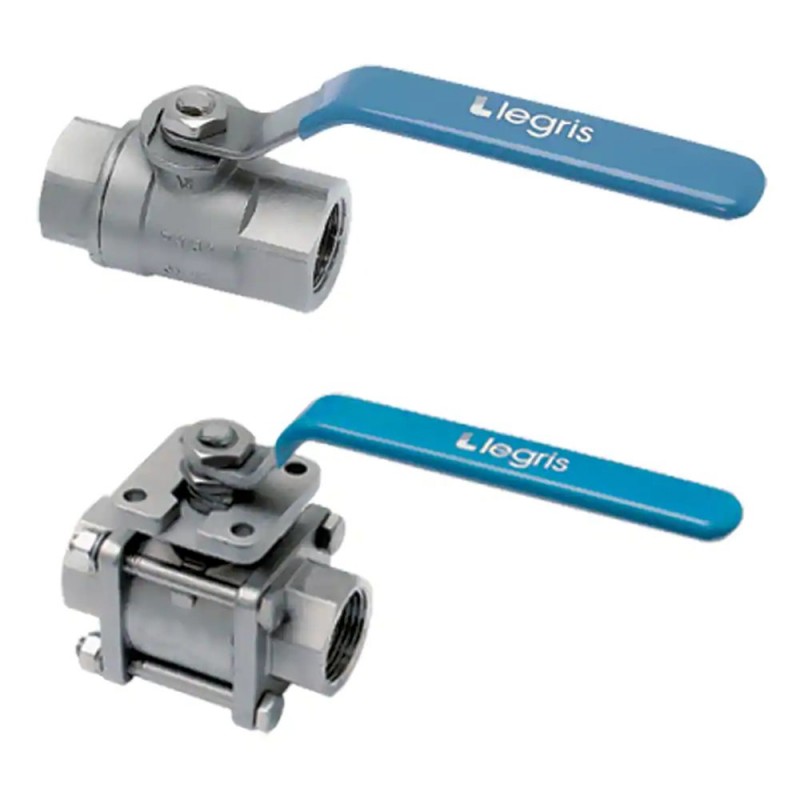

Ball Valves Stainless Steel Series

Stainless steel series ball valves can withstand corrosive fluids and environments.With full flow, high pressure and temperature capabilities, these valves are suitable for many applications.

Полное описание продукта

Stainless steel series ball valves can withstand corrosive fluids and environments.

With full flow, high pressure and temperature capabilities, these valves are suitable for many applications.

Features/Benefits:

- Reliability

• Full flow
• Excellent chemical compatibility
• High resistance to pressure/temperature
• Light series version: 100% leak-tested in production, date coding to guarantee quality and traceability

- Versatility

• Three in-line versions:
One-piece: cannot be disassembled
3-piece: easily disassembled for maintenance and cleaning
Light Series: for maximum compactness
• Fixing plate: 4812 and 4832
Through-bulkhead fitting
Pneumatic or electronic actuation (ISO 5211 standard)

Markets:

• Food and Beverage
• Commercial Aircraft
• Industrial Chemical Processing
• Semiconductor
• Medical
• Lab / Diagnostic
• Pharmaceutical

Applications:

• Allow/Stop Corrosive Fluid Circulation in Harsh Environment
• Suitable for Low and High Temperatures

Technologies:

• Industrial valves
• Pneumatic actuation
• Electric actuation

Technical Characteristics:

• Fluids: All fluids
• Materials: nickel-plated brass or 430 stainless steel, 316L stainless steel or 303 stainless steel, PTFE, FKM, silicone free
• Pressure:
Type 4810, 4812 and 4832: 0 to 65 bar
Type 0465: Vacuum to 20 bar
• Temperature:
Type 4810, 4812 and 4832: -20°C to +150°C
Type 0465: -20°C to +120°C

Regulations:

• DI: 97/23/EC (module PED A - EC diameters greater than 25 mm)
• DI: Machinery Directive 2006/42/EC
• DI: 2002/95/EC (RoHS)
• RG: 1907/2006 (REACH)
• DI: 89/392/EC

Product Types:

• 2/2 In-Line 3-Piece Ball Valve with Fixing Plate, Female BSPP Thread
• 2/2 In-Line Ball Valve with Fixing Plate, Female BSPP Thread
• 2/2 In-Line Ball Valve, Female BSPP Thread
• 2/2 In-Line Light Series Ball Valve, Female BSPP Thread

Характеристики

Бренд:	Legris
Подразделение:	Low Pressure Connectors Europe Division
Промышленность:	Industrial Manufacturing Equipment
Материал уплотнительного кольца:	PTFE
Применение:	Pneumatics, Process Control, Safety, Fluid Control, Aviation, Chemical, Semi-Conductors, Medical, Petrochemical, Laboratories, Pharmaceutical
Технологии:	Fluid & Gas Handling, Process Control, Pneumatics
Тип продукта:	Ball Valves
Модель продукта:	Female Ball Valve, Female Ball Valve with fixing plate, 3 pieces Female Ball Valve with fixing plate, Female Ball Valve - Light
Серия продуктов:	Stainless Steel Series
Функция:	2-Way
Тип эксплуатации:	Lever-operated
Форма:	In-line
Максимальное рабочее давление:	20 to 65 bar, 2 to 6.5 MPa, 290 to 943 psi
Расход:	n/a L/min
Тип соединения:	BSPP
Присоединительный размер:	G3/8 to G1 1/2
Типоразмер диафрагмы:	4 to 50 mm
Конфигурация:	2/2
Для типа жидкости:	Air, Inert Gas, Water
Минимальная рабочая температура:	-20 °C, -4 °F
Максимальная рабочая температура:	120 to 150 °C, 248 to 302 °F
Тип монтажа:	In-line
Тип срабатывания:	Manual
Соблюдены требования технических условий:	n/a
Материал корпуса:	Stainless Steel 316L, Stainless Steel 303
Материал седла:	PTFE
Материал уплотнения:	PTFE
Материал штока:	Stainless Steel 316L, Stainless Steel
Материал шарика:	Stainless Steel 316L, Stainless Steel 303
Тип ручки:	Blue long lever (Stainless Steel), Short lever (Nickel plated brass)
Вес:	0.194 to 3.262 kg, 0.427 to 7.176 lb
Количество в одной коробке:	1 to 10
Страна происхождения:	Italy, France
Рабочее давление:	0 to 65, Vacuum to 60 bar
Материал уплотнения штока:	PTFE
Материал зажимного кольца:	Stainless Steel
