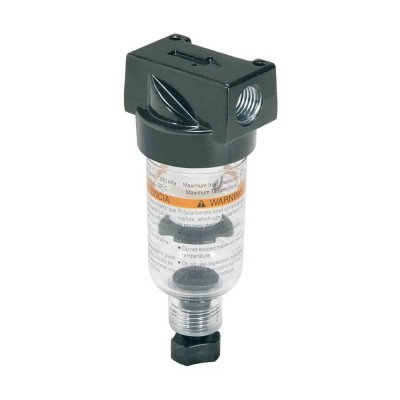

Miniature Particulate Filter - 14F Series - Pneumatic Division Europe 14F11BB1

14F is a 40mm mini particulate filter, 1/8" & 1/4" ported BSPP/NPT, 5µ element, poly bowl fitted with twist/automatic drain. Max P1 pressure of 10 bar. Temp from 0°C to 52°C.

Parker's 14F is a miniature particulate filter that delivers high moisture removal in a compact package. This type of filter is generally used in industrial applications where liquid water, oil, and harmful dirt particles must be removed from the compressed air system. For specific flow and space restricted applications, this product can provide a solution that does not sacrifice performance. With excellent water, removal and various options available (such as auto drain, manual drain, and an assortment of bowl options) make this series easy to design to your application.

• Miniature Particulate Filter
• Element: 5µ
• Port Type: BSPP, NPT
• Port Size: 1/8" | 1/4"
• Body Material: Zinc
• Bowl Material: Polycarbonate
• Filter Material: Sintered Polyethylene
• Seals: Nitrile
• Pressure Rating (psig): 150
• Pressure Rating (bar): 10
• Temperature Rating (F): 32° to 125°
• Temperature Rating (C ): 0° to 52°
• Flow SCFM: 21 (1/8"), 23 (1/4")
• Flow dm³/s: 10 (1/8"), 11 (1/4")
• Drain Type: Manual, Semi-auto
• Weight: 0.4 lb (0.18 kg)
