Water monitor providing a maximum flow rate of 212 l/min (56 usgpm) in aviation fuel.

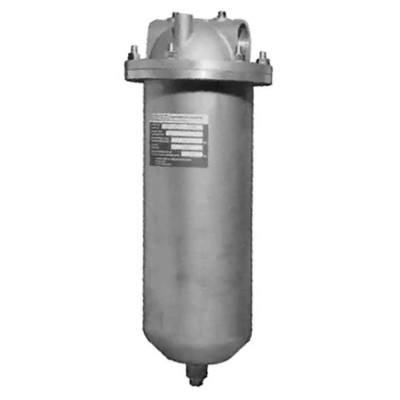

The VF-61SS stainless steel filter water monitor provides a maximum flow rate of 212 l/min (56 usgpm) in aviation fuel, when fitted with a Parker Velcon ACOX water barrier element model ACOX-614A.
The VF-61SS has a die cast aluminium alloy head with 1¼" BSP inlet and outlet. There are ⅛" BSP threaded connections for differential pressure and air vent and a 1½" drain connection. The main filter housing is stainless steel with a nitrile 'o' ring seal.
The housing can be removed quickly for easy element changes.
Differential pressure gauges available include either a go/no-go type gauge or a 0-25 psi graduated gauge. An automatic air eliminator, drain valve and fastening bar are also available.
Features
• 212 l/min (56 usgpm) maximum flow rate
• Quick release housings for easy element changes
• Fastening bar - option A
• Element changing indicator - option B
• Automatic air eliminator - option C
• Electrical pressure switch - option D
• Inlet / outlet flange - option K
• Differential pressure gauge - option L
• Ball valve (drain) - option M
Характеристики
| Максимальное рабочее давление: | 10 bar (145 psi) |
| Максимальная рабочая температура: | 120°C (248°F) |
| Соблюдены требования технических условий: | PED2014 Article 4.3 |
| Подразделение: | Hydraulic and Industrial Process Filtration EMEA |
| Бренд: | Velcon |
| Технологии: | Filtration |
| Применение: | Aviation Refuelling |
| Тип продукта: | Filter Water Monitor |
| Модель продукта: | Filter Housing |
| Серия продуктов: | VF61 |
| Промышленность: | Aviation Refuelling |
| Материалы изготовления: | Housing: Stainless steelHead: AluminiumHousing gasket: O-Ring-NBR70 |
| Присоединительный размер: | Inlet/Outlet: G1¼Drain: G½Vent and gauge: G⅛ |
| Вес: | Weight: 6.5 kg (14.3 lbs) |
| Объем: | 9 Litres |
| Совместимый элемент: | VELCON elements: Micronic filter element qualified to EI1590 3.Ed: Available from 1 to 5 Micron. FO-614A-XVELCON water adsorbent Aquacon-Elements: Diesel fuel AD-61425 and additionally for gasoline or hydraulic oil AC-61405VELCON water barrier elements: Jet Fuel (JET A 1- JP-5 JP-8) AV-Gas. ACOX-614AVELCON Acox Water Barrier elements meet the effluent fuel quality and structural requirements of EI-1588 Specification. |
| Дополнительное оборудование: | Option A - Fastening barOption C - Automatic air eliminatorOption D - Electrical pressure switchOption K - Inlet/outlet flangeOption L - Differential pressure gaugeOption M - Ball valve (drain) |
- Бренд
- Velcon
- Вес
- Weight: 6.5 kg (14.3 lbs)
- Дополнительное оборудование
- Option A - Fastening barOption C - Automatic air eliminatorOption D - Electrical pressure switchOption K - Inlet/outlet flangeOption L - Differential pressure gaugeOption M - Ball valve (drain)
- Максимальная рабочая температура
- 120°C (248°F)
- Максимальное рабочее давление
- 10 bar (145 psi)
- Материалы изготовления
- Housing: Stainless steelHead: AluminiumHousing gasket: O-Ring-NBR70
- Модель продукта
- Filter Housing
- Объем
- 9 Litres
- Подразделение
- Hydraulic and Industrial Process Filtration EMEA
- Применение
- Aviation Refuelling
- Присоединительный размер
- Inlet/Outlet: G1¼Drain: G½Vent and gauge: G⅛
- Промышленность
- Aviation Refuelling
- Серия продуктов
- VF61
- Соблюдены требования технических условий
- PED2014 Article 4.3
- Совместимый элемент
- VELCON elements: Micronic filter element qualified to EI1590 3.Ed: Available from 1 to 5 Micron. FO-614A-XVELCON water adsorbent Aquacon-Elements: Diesel fuel AD-61425 and additionally for gasoline or hydraulic oil AC-61405VELCON water barrier elements: Jet Fuel (JET A 1- JP-5 JP-8) AV-Gas. ACOX-614AVELCON Acox Water Barrier elements meet the effluent fuel quality and structural requirements of EI-1588 Specification.
- Технологии
- Filtration
- Тип продукта
- Filter Water Monitor
