Артикул: VB-0750-C31CSS

В наличии

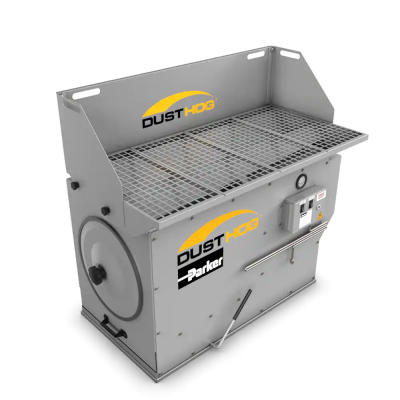

VB-⁠750 Downdraft Dust Collector VB-⁠0750-⁠C31CSS

Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.

Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Не отвечаем 5 минут — скидка на весь заказ!

sale@ru-parker.com

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 134-22-05

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

A source capture downdraft dust collector with an integrated open metal grate benchtop to remove dust, fumes or particles. Simply apply input power, a compressed air source and press start. Filter cartridge and accessories ordered separately.

The Parker VB Benchtop Downdraft Filtration Unit is a stationary self-contained source capture extraction system for intermittent use. The VB 750 downdraft bench provides a worktop area of 32" wide and 24" deep with a downflow of 750 CFM and is specifically designed for applications where workers need an integrated collection area and work surface that also draws contaminants downward and away from the worker’s breathing zone then traveling through a filtration media to remove particles entrained in the airstream before returning the clean air back into the work space. Model VB is ideal for grinding and finishing operations of small parts and components. This self-contained system is the perfect choice for economical and efficient dust collection. Typical applications include the extraction of fume, soldering smoke, bulk powders and other miscellaneous dusts. The Parker VB downdraft filtration units are constructed with mild steel and are fully powder coated to protect from the harsh industrial production environments. The VB series is available in 1 HP and voltages including 115V/1P/60H and 230V/1P/60H. On board are the controls for fan operation, a filter pressure indicator and manual or automatic filter pulse cleaning system using an outside compressed air source that is plugged into the unit. There are several filtration medias available including, a filter monitor gauge, HEPA and carbon after filters to handle the most difficult dust and particulates.


Характеристики

Входная мощность:230V/1P/60H
Расход воздуха:750 CFM
Вес:385 lbs
Применение:Dust, Fume, Smoke
Тип оборудования:Downdraft Media Filter Unit
Площадь фильтрования:141/13 ft2/m2
Фильтр входит в комплект:No
Размер всасывающего порта:Metal Tabletop Work Grid, None
Выходная мощность электродвигателя:1 HP
Ток:7.5 amp
Sound Level:79 dBA
Потребление воздуха:1.1 SCFM
Глубина:30 inch
Ширина:39 inch
Высота:39 inch
Тип краски:Powder Coated
Материал корпуса:Mild Steel
Бренд:Dusthog
Варианты исполнения:Sold seperately: Filter media, After Filter, Wheels
Серия продуктов:VB 750
Фильтрующий материал:Media
Цвет:HOG Gray

Технические характеристики VB-0750-C31CSS

Характеристики

Sound Level
79 dBA
Бренд
Dusthog
Варианты исполнения
Sold seperately: Filter media, After Filter, Wheels
Вес
385 lbs
Входная мощность
230V/1P/60H
Высота
39 inch
Выходная мощность электродвигателя
1 HP
Глубина
30 inch
Материал корпуса
Mild Steel
Площадь фильтрования
141/13 ft2/m2
Потребление воздуха
1.1 SCFM
Применение
Dust, Fume, Smoke
Размер всасывающего порта
Metal Tabletop Work Grid, None
Расход воздуха
750 CFM
Серия продуктов
VB 750
Тип краски
Powder Coated
Тип оборудования
Downdraft Media Filter Unit
Ток
7.5 amp
Фильтр входит в комплект
No
Фильтрующий материал
Media
Цвет
HOG Gray
Ширина
39 inch
