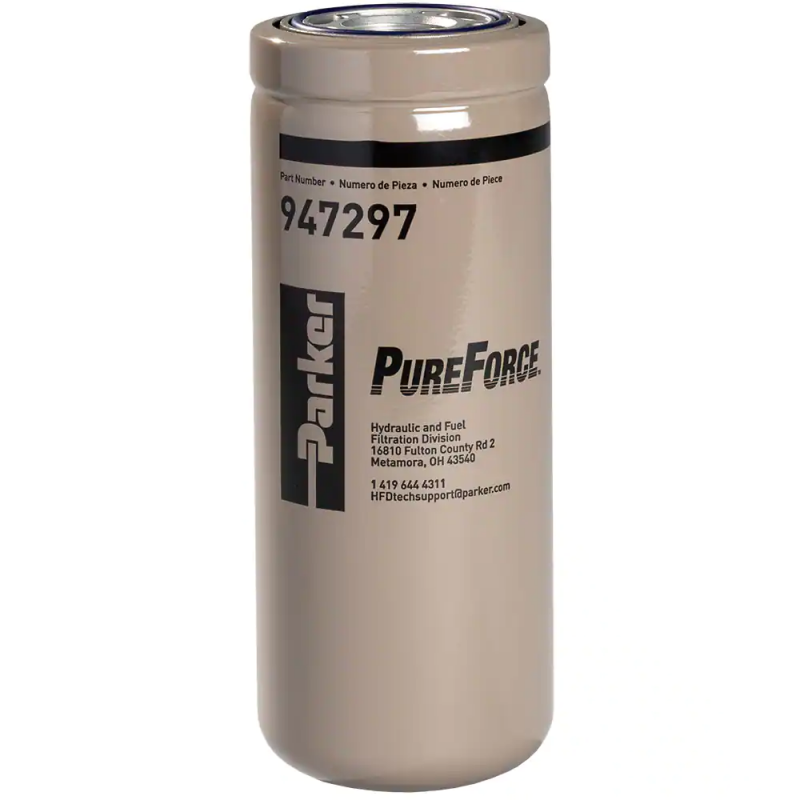

PureForce Medium Pressure Spin-On

Parker’s dedication to protecting critical process equipment has led to the development of our new PureForce medium pressure spin on filte. PureForce elements provide filtration for hydraulic systems up to 500psi.

Полное описание продукта

The PureForce medium pressure spin on filters utilize a heavy duty all metal housing with an L-Lock hem to provide industry leading fatigue and burst strength. The increased strength stands up to modern hydraulic systems requiring operating pressures up to 500psi. PureForce utilizes efficient microglass media to meet or exceed fluid cleanliness requirements. Tool-free installation allows for easy filter changes in diverse manufacturing environments.

Applications:
Closed circuit hydrostatic charge pump
Skid steer loaders
Road rollers
Crawler tractors
Combine harvester
Forage harvesters
Industrial power units
Machine tools

Features
Heavy-Duty, All-Metal Housing is built to handle the stress and punishment of sophisticated, modern hydraulic systems.
High Strength Spiral Louvered Centertube helps prevent collapse caused by a sudden difference between internal and external pressure.
High Efficiency Media, either synthetic or cellulose, is designed to meet or exceed the requirements designated by the OEM.
Seamless Canister Design provides highest possible integrity.
L-Lock Hem joins the canister and baseplate to protect against high-pressure surges.
Integral Housing Seal prevents leakage.
Heavy-Duty Baseplate is constructed of aluminum, offering the strength and durability necessary for 500 psi hydraulic systems.
Heavy-Duty O-Ring Seal ­­­­ requires only 1/2 turn after gasket contact, for easier installation.

Характеристики

Рабочая температура:	-20° to 225°F / -29° to 107°C
Давление смятия:	150 psi / 1035 kPA / 10.4 bar
Наружный диаметр:	3.75 in (95.3 mm), 4.75 in (120.7 mm)
MEDIA MATERIAL:	Maximum Performance Glass
