VARI-PLUS VPL

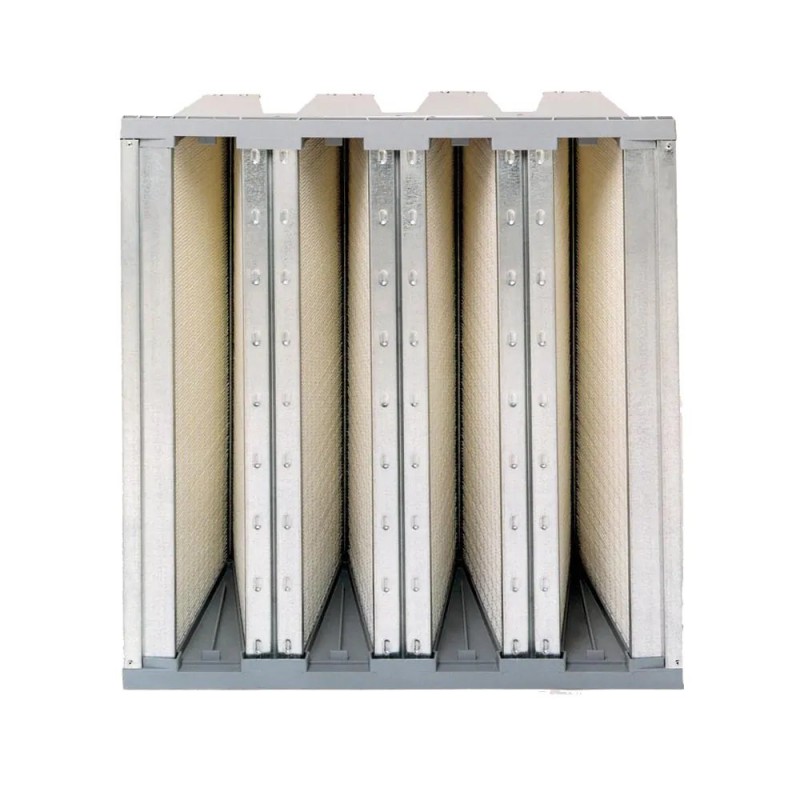

The Vari+Plus® VPL extended-surface air filter is another superior product in the Airguard® family of rigid high-efficiency products, offering a wide range of dirt-removal efficiencies coupled with extremely low resistance to air flow.

Полное описание продукта

The Vari+Plus® VPL extended-surface air filter is another superior product in the Airguard® family of rigid high-efficiency products, offering a wide range of dirt-removal efficiencies coupled with extremely low resistance to air flow. The combination of these two values offers high performance filtration, long service life, and low operating costs. This filter provides between 40 percent and 300 percent more filter surface area, ensuring long service life and economical operation.
Features/Benefits:
• High-efficiency, water-repellent microglass paper media
• Four efficiencies: Minimum Efficiency Reporting Value (MERV) 11, MERV 13, MERV 14, and MERV 16
• Rigid plastic end panels and galvanized steel support struts
• Urethane sealant in vertical struts
• Mini-pleat bead separator packs
• Latches or clamping devices to assist installation
• May be inserted into side access housings with a 1-in. track
• Three height sizes available (12-in., 20-in., and 24-in.)
• Single-flange or double-flange frame styles available
• Optional air-entering (upstream) or air-exiting (downstream) gasket
• Bio-Pure® Vari+Plus antimicrobial available in 90-95 percent efficiency with EPA registered agent
• Option in reverse flow available
• Guaranteed leak free media pack
Applications:
Vari+Plus VPL filters are excellent for hospitals, museums, pharmaceutical facilities, electronics facilities, computer rooms, airports, laboratories, automotive plants, and any facility with the following conditions:
• Variable air volume systems
• Hostile environments
• High-humidity situations
• Turbulent conditions
• High-volume air flow systems (up to 3000 CFM)
• Corrosive atmospheric conditions

Характеристики

Применение:	HVAC
Бренд:	Airguard
Тип продукта:	Extended Surface Rigid Cell Filters
Соблюдены требования технических условий:	Classified Per UL Standard 900 for Flammability
Расход воздуха:	1000 & 2000 CFM
Глубина:	29.21 cm, 11.5 inch
Для типа жидкости:	Air
Показатель эффективности фильтра:	MERV 13, 14 & 16
Расход:	1000 & 2000 ft3/min
Высота:	28.89 to 59.37 cm, 11.375 to 23.375 inch
Начальное сопротивление:	0.034 to 0.085 Ω
Максимальное рабочее давление:	1.5 in.
Максимальная рабочая температура:	180 °F
Рабочая среда:	High Efficiency, Microglass Paper
Область рабочей среды:	97 & 194 ft2
Номинальное значение в микронах:	≥75% 0.3 to 1.0 ≥m to ≥95% 0.3 to 1.0 μm
Вес:	10.5 lb
Ширина:	59.3725 cm, 23.375 inch
