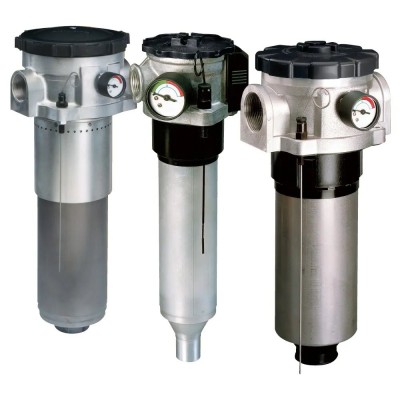

Tanktop Mounted Return Line Filter - Tanktopper Series

The Tanktopper return line filter series features an integrated, 10µ abs. air breather. LEIF® Ecoglass elements available. An all-in-one, easy-to-mount filter range for more compact tank design. Maximum pressure 10 bar. Maximum flow 650 l/min.

Полное описание продукта

Items marked with an asterisk * in the drop-down menus are standard choices.

The TPR Series I, II & III tank mounted return line filters offer a total filtration solution.

A 10 micron abs. air breather that is integrated into the filter housing, a magnet column for pre-filtration, 'In-to-Out' filtration, a full-flow bypass with low hysteresis, and the high performance glassfibre filter element materials are all proven success factors in efficient return-line filtration for flow rates up to 650 l/min.

Several pressure gauges and switches can be applied and a dipstick option is available.

The all-in-one, easy-to-mount cost-saving TPR solution allows for a more compact tank design.

Product Features:
• Tanktopper offers a total filtration solution with integrated air breather.
• In-to-Out filtration plus gauge and switch options.
• Maximum pressure 10 bar. Maximum flow 650 l/min.
• Patented LEIF® Ecoglass elements safeguard filtration quality.

Typical Applications:
TPR I
• Fork lift trucks
• Power packs
• Mini excavator
TPR II
• Gully-sucker
• Power packs
• Dredging ships
TPR III
• Mobile cranes
• Refuse vehicles

For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor.

Характеристики

Тип монтажа:	Tank Mounted
Номинальное давление:	0-34 bar
Расход:	500-1,000 L/min
Материал корпуса:	Aluminium
Рабочая температура:	-40 / +80°C
