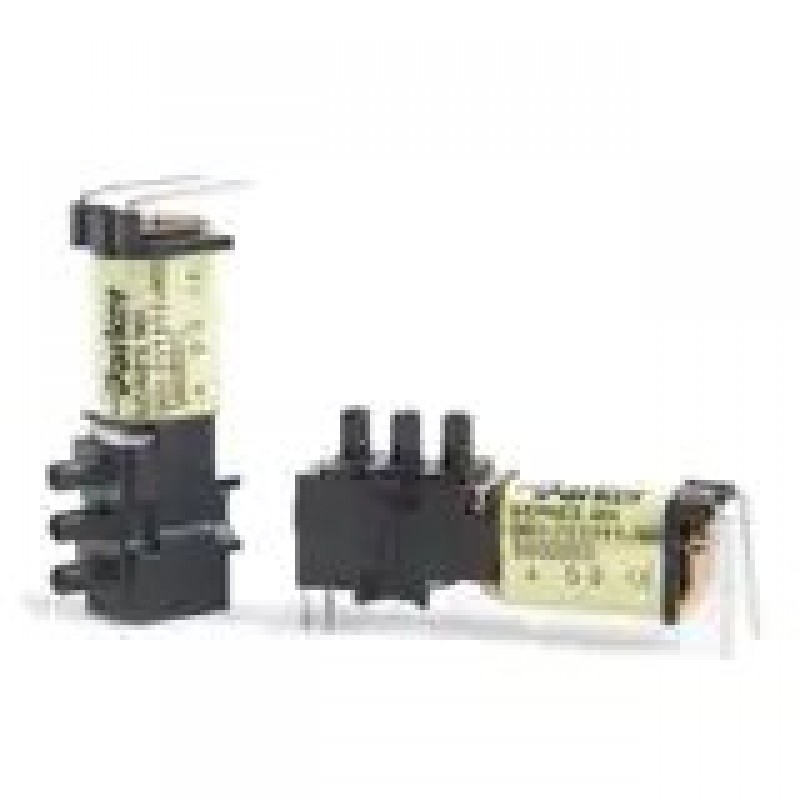

Series MX - Miniature Solenoid Actuated Poppet Valve

Parker's Series MX is a compact, light weight 10 mm wide valve designed to deliver high flow at low pressure for portable medical devices with limited space and power. Available with universal mounting and multiple pneumatic configurations.

Полное описание продукта

The Series MX is a miniature solenoid valve that delivers high flow at low pressure in a compact, 10 mm wide size. Using hit and hold control, the Series MX miniature solenoid consumes very little power helping medical device manufacturers increase battery life and reduce system weight without sacrificing performance. The universal design supports manifold and barbed-tube mounting and is available in 2-way and 3-way configurations. The Series MX is the ideal solution for portable medical devices with limited space and available power.

Features
• Small, 10mm size enables compact integration and reduces device size
• Highest flow to power consumption ratio increases device battery life
• Lightweight 0.3 oz (8.5 g) design helps reduce portable device weight
• Universal barbed-tube or manifold mount eases valve integration
• CE and RoHS compliant

Typical Applications:
• Oxygen Concentrators
- Sieve bed switching/equalization
- Oxygen delivery
• Deep Vein Thrombosis
- Cuff Inflation/Deflation Control
• Negative Pressure Wound Therapy
- High Volume Vacuum/Pressure Control

Характеристики

Расход:	Up to 48 SLPM
Максимальный расход:	48 SLPM
Максимальное рабочее давление:	30 psi, 2.0 bar
Типоразмер диафрагмы:	0.075 inch, 1.91 mm
Максимальная рабочая температура:	122 °F, 50 °C
Минимальная рабочая температура:	32 °F, 0 °C
Функция:	2/3 Way NC, 2/3 Way NO, 3 Way Distributor
Количество циклов за срок службы:	25 Million
Тип срабатывания:	Solenoid
Тип эксплуатации:	Electronic
Метод регулирования:	Hit and Hold, Voltage
Потребляемая мощность:	0.25, 0.75 W
Напряжение на входе:	5, 12, 24 VDC
Электрические соединения:	2 Pin-Up, 2 Pin-PCB
Материал корпуса:	PPE/PA (Polyphenylene Ether/Polyamide)
Материал уплотнения:	Silicone, FKM
Длина:	1.50 inch, 38.1 mm
Ширина:	0.40 inch, 10.1 mm
Высота:	0.62 inch, 15.7 mm
Вес:	0.3 oz, 8.5 g
Время отклика:
Интенсивность утечек:
Тип монтажа:	Manifold Mount (Gasket Required)
Тип соединения:	Barbs for 3/32 in (2 mm) I. D. Tubing; Mounting screw (manifold mount)
Присоединительный размер:	2-56 x 1/2" Pan Head, Philips Screw
Для типа жидкости:	Gases
Область примиенения в промышленности:	Medical device applications such as Portable and Transportable Oxygen Concentrators, Deep Vein Thrombosis and Negative Pressure Wound Therapy
Конфигурация:	N/A
