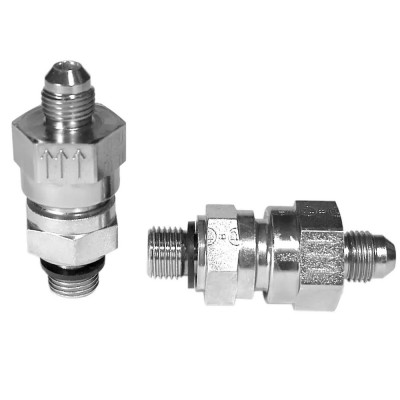

SAE Non return valves

Parker non-return valves with an ISO 8434-2 (Triple-Lok®) or 8434-3 (O-Lok®) connection offer a wide range of sizes, male threads and cracking pressures, making them very flexible.

Полное описание продукта

Parker non-return valves with an ISO 8434-2 (Triple-Lok®) or 8434-3 (O-Lok®) connection offer a wide range of sizes, male threads and cracking pressures, making them very flexible.
The principle of a two-part non-return valve with an integrated soft sealing element has been proven by many applications in the market.
This reliability is the reason for its successful use in applications with Triple-Lok® (37° flare) or O-Lok® (O-Ring face seal).
Parker non-return valves are available with Cr(VI)-free surfaces. The broad product range goes from sizes 4 to 24 (6 mm to 38 mm O.D.); UNF, BSPP and metric male threads are available. The cracking pressures are from 0.2 to 6 bar. The maximum flow velocity is 8 m/sec. The nominal pressure PN: Triple-Lok® up to PN 350 bar and O-Lok® up to PN 400 bar.
Markets:
• Automotive
• Defence
• Energy
• Environment
• Industrial
• Infrastructure
• Machine Tools
• Materials Handling
• Mobile
• Oil and Gas
• Power Generation
• Process
• Transportation
• Water
Applications:
• Suitable for general hydraulic applications.
Features/ benefits of SAE non-return valves:
• The precise functioning of Parker SAE non-return valves has been proven a million times over and stands for the reliability of this product range.
• Combined soft and metal sealing – leak-free due to soft sealing at cone and metal-supported sealing at cone – extends the safety of the product and the entire hydraulic application.
• The usage of Parker SAE non-return valves is flexible due to the wide range of cracking pressures available.
• For yet more applications, internal parts in stainless steel with FPM are also available.
• The wide range of male threads also increases the number of potential applications.

Характеристики

Наружный диаметр трубки соединения 1:	1/4 to 1 1/2 inch, 06 to 38 mm
Наружный диаметр трубки соединения 2:	1/4 to 1 1/2 inch, 06 to 38 mm
Максимальный расход:	n/a
Присоединительный размер:	G 1/8 to G 1 1/2, 7/16-2 UNF to 1 7/8-12 UN, M 10x1.0 to M 48x2.0
Материал уплотнения:	NBR
Максимальное рабочее давление:	420 bar
Максимальная рабочая температура:	+120 °C
Конфигурация:	n/a
Направление потока:	na, Port to Tube, Tube to Port
Тип монтажа:	Screw
Минимальная рабочая температура:	-40 °C
Материал корпуса:	Steel
Тип срабатывания:	Mechanical
Тип соединения:	Male metric thread - ED-Seal (ISO 9974), Male BSPP thread - ED-Seal (ISO 1179), Male UN/UNF thread - O-ring (ISO 11926), Triple-Lok 37° flare end, O-Lok ORFS end
Давление открытия:	1 bar
