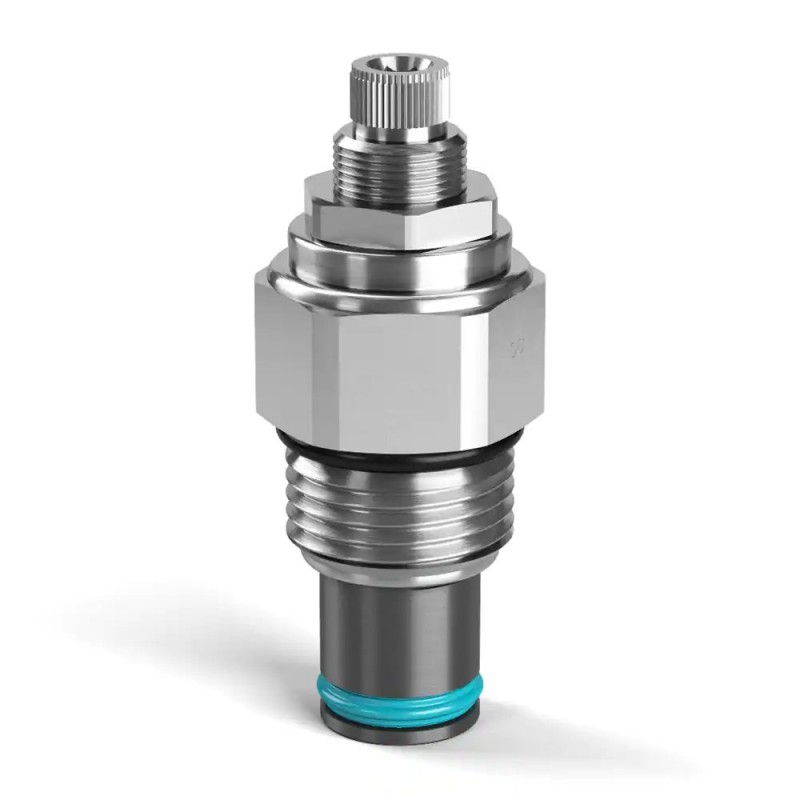

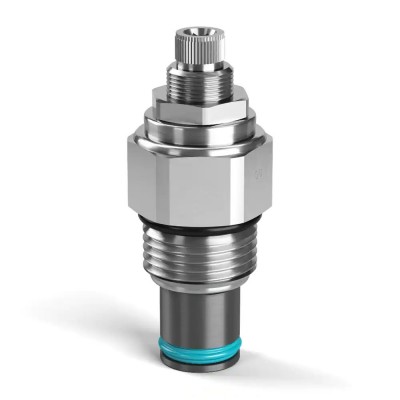

Direct Acting Relief Valves

Parker’s direct acting relief valves are available in several cavity sizes and are designed for continuous duty applications with pressures up to 420 bar (6000 psi) and flows up to 200 lpm (53 gpm).

Полное описание продукта

Parker’s selection of direct acting relief valves are fast acting and designed for continuous duty applications with pressures up to 420 bar (6000 psi) and flows up to 200 lpm (53 gpm) in a variety cavity sizes. The variety of pressure adjustment styles available makes these valves an economical solution for clipping pressure spikes and can handle up to full system flow if needed. Poppet style direct acting valves have low leak conditioned seats and are ideal port reliefs in cylinder control applications. Parker’s small, low flow, direct acting valves perform well when controlling pilot circuits or limiting load sense pressure.

Markets:
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile

Features/Benefits:
• Hardened, precision ground parts for durability
• Compact size for reduced space requirements
• Low leakage design poppet design available
• Fast response
• All external parts zinc plated
• High pressure (6000 psi) product available in some models
• Adjustable, fixed, or tamper resistant adjustments available
• Multiple spring ranges are available
• All valves are 100 % tested

Applications:
• Port/cross-port relief
• System relief
• Pilot and/or load sense relief
• Braking

Additional Technical Insight:
Full flow direct acting relief valves can be used as a main system relief valves in low flow circuits. Direct acting valves are fast acting, therefore, these devices and can be an economical solution for clipping pressure spikes. Poppet style direct acting valves have low leak conditioned seats and are often used as a port relief in a cylinder control applications. Small, low flow, direct acting valves are ideal for controlling pilot circuits or limiting load sense pressure.

Характеристики

Расход:	0.5, 1, 1.6, 8, 10, 26, 53 Gal/min, 1.9, 3.8, 6, 30, 38, 100, 200 L/min
Максимальное расчетное давление на входе:	725, 1450, 3000, 3600, 5500, 6000 psi, 50, 100, 210, 250, 380, 420 bar
Диапазон регулирования давления:	50-300, 29-725, 100-900, 100-1000, 29-1450, 100-1500, 200-1800, 100-2000, 72-3000, 100-3000, 145-3000, 200-3000, 250-3000, 600-3000, 200-5000, 500-5000, 1500-5000, 72-6000, 145-6000 psi, 3.5-20.7, 2-50, 6.9-62, 6.9-69, 2-100, 6.9-103, 13.8-124, 6.9-137, 5-210, 6.9-210, 10-210, 13.8-210, 17.2-210, 41.4-210, 13.8-350, 34.5-350, 103.4-350, 5-420, 10-420 bar
Регулировочный механизм:	Fixed, Knob, Non-Adjustable, Screw, Tamper Resistant
Материал уплотнения:	D-Ring (Standard), Fluorocarbon, Nitrile
Максимальный расход:	0.5, 1, 1.6, 8, 10, 26, 53 Gal/min, 1.9, 3.8, 6, 30, 38, 100, 200 L/min
Максимальное рабочее давление:	725, 1450, 3000, 3600, 5500, 6000 psi, 50, 100, 210, 250, 380, 420 bar
Максимальное давление в баке:	3000, 5000, 6000 psi, 210, 350, 420 bar
Стандартное давление посадки:	150, 360, 450, 500, 725, 750, 900, 1000, 1400, 1450, 1500, 2500, 2900 psi, 10.3, 25, 31, 34.5, 50, 51.7, 62, 69, 97, 100, 103.4, 172.4, 200 bar
Уставка максимального давления:	300, 725, 900, 1000, 1450, 1500, 1800, 2000, 3000, 5000, 6000 psi, 20.7, 50, 62, 69, 100, 103.4, 124, 138, 210, 350, 420 bar
Чувствительность регулирования давления:	N/A, 39 per turn, 76 per turn, 104 per turn, 147 per turn, 228 per turn, 234 per turn, 285 per turn, 305 per turn, 435 per turn, 446 per turn, 570 per turn, 630 per turn, 800 per turn, 859 per turn, 881 per turn, 1500 per turn, 1522 per turn, 1710 per turn, 1910 per turn psi, N/A, 2.7 per turn, 5.2 per turn, 7.2 per turn, 10.1 per turn, 15.7 per turn, 16.1 per turn, 19.6 per turn, 21 per turn, 30 per turn, 30.7 per turn, 39.3 per turn, 43.4 per turn, 55.1 per turn, 58.9 per turn, 60.7 per turn, 103.4 per turn, 105 per turn, 117.9 per turn, 131.7 per turn bar
Давление закрытия:	N/A, 80% of pressure setting, 85% of pressure setting, 90% of pressure setting
Тип срабатывания:	Pressure Sensing
Конфигурация:	Pressure Relief
Интенсивность утечек:	N/A, 5 @ 75% Crack Pressure, 10 @ 75% Crack Pressure, 5 @ 80% Crack Pressure, 5 @ 1450 PSI (100 BAR) drops/min, 25 @ 725 PSI (50 BAR), 0.33 @ 75% Crack Pressure, 0.66 @ 75% Crack Pressure, 0.33 @ 80% Crack Pressure, 0.33 @ 1450 PSI (100 BAR) cm3/min
Тип монтажа:	Screw in cartridge valve
Размер полости:	C04-2, C08-2, C10-2
Функция:	Direct Acting
Тип эксплуатации:	Automatic
Для типа жидкости:	Mineral-based or synthetic hydraulic fluids
Максимальная кинематическая вязкость:	45-2000 SSU (6 to 420 cSt) cSt
Показатель эффективности фильтра:	ISO 4406 18/16/13, SAE Class 4
Материал клапана:	All parts steel. All operating parts hardened steel
Момент затяжки при монтаже:	7, 9, 23-27, 30, 37, 37-41 lb-ft, 10, 15, 31-37, 40, 50, 50-56 Nm
Рабочая температура:	-35 to +200, -30 to +250, -15 to +400 °F, -37 to +93, -34 to +121, -26 to +204 °C
Максимальная рабочая температура:	+200, +250, +400 °F, +93, +121, +204 °C
Минимальная рабочая температура:	-35, -30, -15 °F, -37, -34, -26 °C
Вес:	0.07, 0.2, 0.24, 0.4, 0.44, 0.5, 0.62 lb, 0.03, 0.09, 0.11, 0.18, 0.2, 0.23, 0.28 kg
Сетчатый экран входит в комплект:	N/A, Yes
Материал корпуса:	N/A
