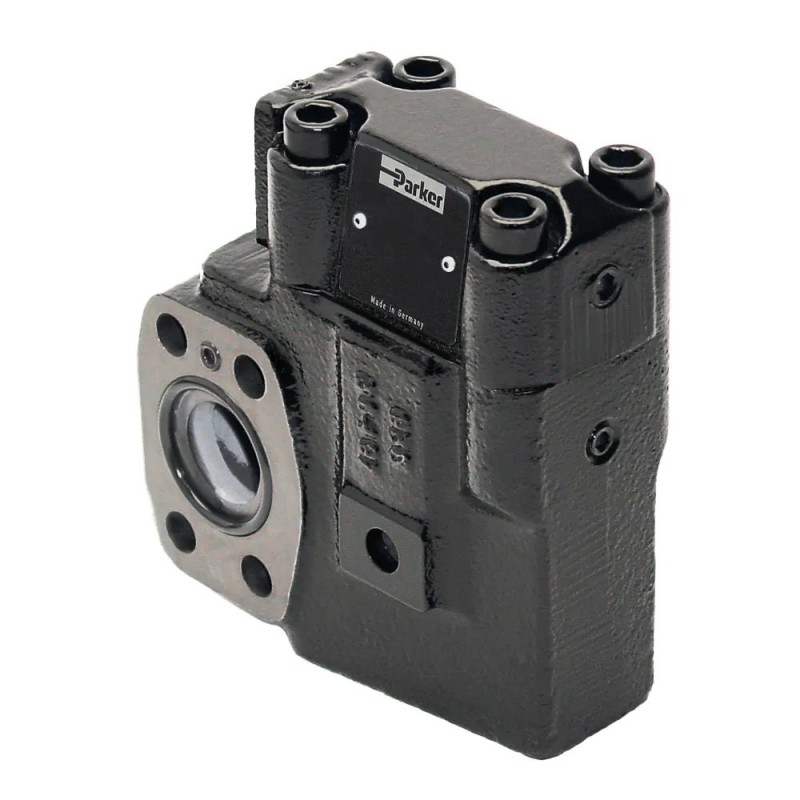

OBSOLETE: 2-Port Pressure Compensator, SAE Flange - Series R5A

Примечание: Этот продукт больше не доступен - пожалуйста, свяжитесь с нами для получения дальнейшей помощи.

Полное описание продукта

Parker's direct operated 2-way pressure compensators series R5A can be combined with any type of fixed or adjustable flow resistor (throttle) to provide a load compensated flow even under high flow conditions. They are part of the Parker valve range with SAE flanges which is unique in its variety. The SAE flanges allow to mount the valves directly on the outlet flanges of pumps to achieve a very compact design.

The combination with the proportional throttle valve F5C serves as a compact 2-way flow control unit in SAE flange design. The R5A is typically used as meter-out compensator behind the flow resistor.

Markets:
• Industrial

Features/Benefits:
• Proven, robust design - ensures reliable operation
• SAE61 flange - enables compact design
• Maximum pressure of 350 bars and flow capacity ranging from 90 l/min to 600 l/min - high performance
• Good price-performance ratio - fast return of investment
• Short delivery time - no warehousing necessary
• Seated type 2-way pressure compensator
• 8.4 bar control pressure
• 3 sizes, SAE 3/4“, 1“, 1 1/4“
• Load compensated flow in combination with F5C

Applications:
• Suitable for general hydraulic applications

Характеристики

Тип корпуса:	2-port
Тип монтажа:	Flanged according SAE61
Тип эксплуатации:	Direct
Серия продуктов:	Flow valve
Вес:	Depending on size, 3.6 - 5.6 kg
Тип срабатывания:	Oil Pilot
Максимальный расход:	N/A
Расход:	Depending on size, 90 - 600 L/min
Функция:	2-Way pressure compensator
Максимальное рабочее давление:	Depending on size, 280 - 350 bar
Максимальная рабочая температура:	60 °C
Минимальная рабочая температура:	-20 °C
Материал уплотнения:	NBR, FPM
Материал корпуса:	Cast iron
Конфигурация:	N/A
Присоединительный размер:	3/4", 1", 1 1/4"
Тип соединения:	N/A
Для типа жидкости:	Hydraulic oil according to DIN 51524, Water glycol
