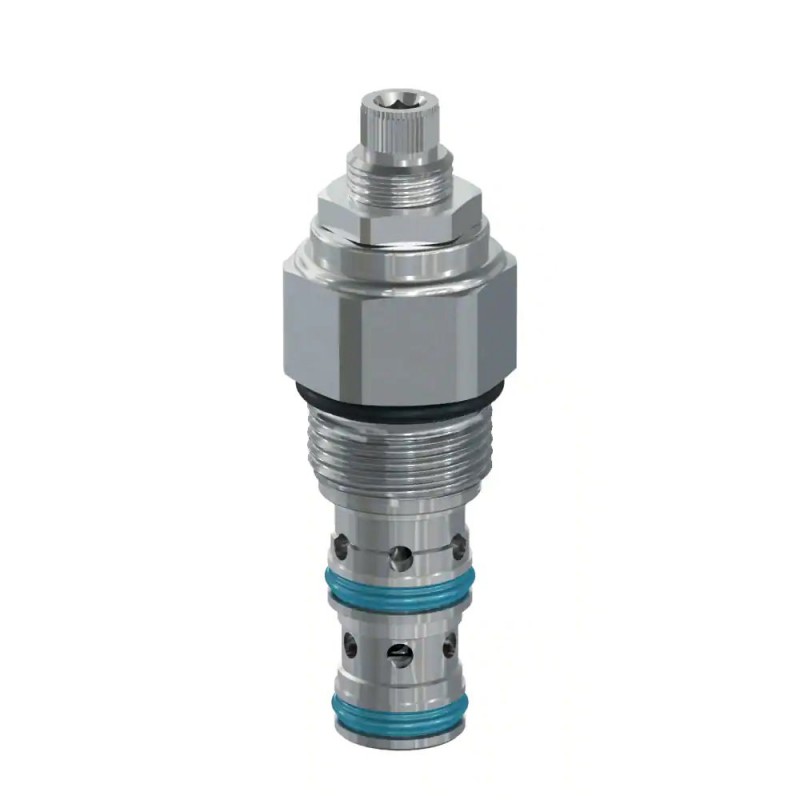

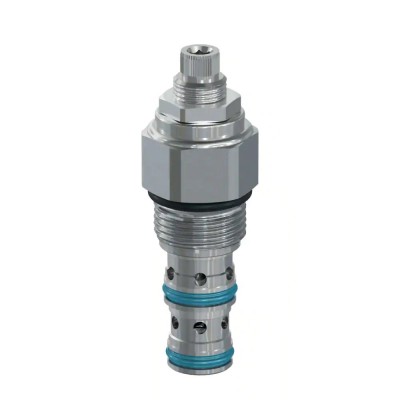

Pilot Operated Pressure Reducing Relieving Valves

Parker’s pilot operated acting reducing & relieving valves are used in applications where specific functions require reduced and regulated pressure. Capable of flows up to 150 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Полное описание продукта

Parker's family of pilot operated acting reducing & relieving valves provide superior pressure control in applications where specific regulated and relief pressures are needed for precise operation on functions that require regulated pressures up to 380 bar (5500 psi) and flows up to 150 lpm (40 gpm). Parker's pilot operated acting reducing & relieving valves are designed with several pressure ranges in order to give a higher degree of control with a variety of adjustment style options available. The additional valve stability due to the pilot operation make these valves ideal for sensitive functions such as up or downforce, clamping, or braking applications on various types of machinery within the mobile and industrial markets.

Markets:
• Agriculture
• Construction Equipment
• Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile

Features/Benefits:
• Multiple pressure ranges available for more accurate pressure control
• Compact size for reduced space requirements
• Adjustable and tamperproof versions available
• High pressure capacity
• All external parts zinc plated

Applications:
• Brakes
• Clamps
• Suspension systems
• Up/down-force systems

Additional Technical Insight:
Typical applications are in mobile & industrial equipment, where a branch of the system is intended to operate at a lower setting than high system pressure. Hydraulic functions such as brake circuits, clamping or clutch circuits, suspension systems, street sweepers, or seeding and planting rows in agricultural equipment are common applications for these products.

Характеристики

Расход:	8, 15, 30, 40 Gal/min, 30, 56.3, 113.7, 150 L/min
Диапазон регулирования давления:	100-500, 100-1000, 200-1000, 100-2000, 200-2000, 400-2000, 200-3000, 300-3000, 600-3000, 200-5000, 500-5000, 1200-5000 psi, 6.9-34.5, 6.9-69, 13.7-69, 6.9-138, 13.8-138, 27-138, 13.8-210, 20.7-210, 41.4-210, 13.8-350, 34.5-350, 82.8-350 bar
Регулировочный механизм:	Fixed, Knob, Screw, Tamper Resistant
Материал уплотнения:	D-Ring (Standard), Fluorocarbon, Nitrile
Тип монтажа:	Screw in cartridge valve, Line Mounted
Давление открытия:	N/A, 5, 15, 20, 40, 50, 65, 80 psi, N/A, 0.3, 1, 1.4, 2.8, 3.5, 4.5, 5.5 bar
Максимальный расход:	8, 15, 30, 40 Gal/min, 30, 56.3, 113.7, 150 L/min
Максимальное рабочее давление:	5500 psi, 380 bar
Максимальное расчетное давление на входе:	5500 psi, 380 bar
Максимальное давление в баке:	5000 psi, 350 bar
Стандартное давление посадки:	250, 500, 1000, 1500, 2500 psi, 17.2, 34.5, 69, 103.5, 172 bar
Уставка максимального давления:	500, 1000, 2000, 3000, 5000 psi, 34.5, 69, 138, 210, 350 bar
Чувствительность регулирования давления:	N/A, 285 per turn, 334 per turn, 539 per turn, 570 per turn, 859 per turn, 870 per turn, 1711 per turn, 1910 per turn psi, N/A, 19.6 per turn, 23 per turn, 37 per turn, 39.3 per turn, 58.9 per turn, 60 per turn, 118 per turn, 131.7 per turn bar
Тип срабатывания:	Pressure Sensing
Конфигурация:	Pressure Reducing/Relieving, Pressure Reducing/Relieving w/Reverse Flow Check
Максимальный расход слива:	0.15, 0.25, 0.5 Gal/min, 0.56, 0.94, 1.9 L/min
Интенсивность утечек:	N/A, 5 per 100 PSI (6.9 BAR) setting cc/min
Размер полости:	N/A, C08-3, C10-3, C12-3, C16-3
Функция:	Pilot Operated
Тип эксплуатации:	Automatic
Для типа жидкости:	Mineral-based or synthetic hydraulic fluids
Максимальная кинематическая вязкость:	45-2000 SSU (6 to 420 cSt)
Показатель эффективности фильтра:	ISO 4406 18/16/13, SAE Class 4
Материал клапана:	All parts steel. All operating parts hardened steel
Материал корпуса:	N/A, Steel
Размер резьбы порта:	N/A, SAE-8
Момент затяжки при монтаже:	N/A, 32-36, 51-55, 56, 121-125 lb-ft, N/A, 43-49, 69-75, 76, 164-170 Nm
Рабочая температура:	-35 to +200, -30 to +250, -15 to +400 °F, -37 to +93, -34 to +121, -26 to +204 °C
Максимальная рабочая температура:	+200, +250, +400 °F
Минимальная рабочая температура:	+93, +121, +204 °C, -35, -30, -15 °F, -37, -34, -26 °C
Вес:	0.25, 0.5, 0.6, 2, 2.2 lb, 0.11, 0.23, 0.27, 0.9, 1 kg
