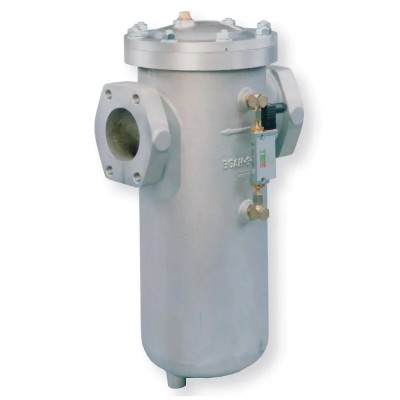

The BGAH is a series of low pressure in line filters, featuring magnetic pre-filtration and a wide range of filter media.It has a light weight aluminium housing design.Suitable for a max. flow of 500 l/min and a max. pressure of 25 bar.
Полное описание продукта
Items marked with an asterisk * in the drop-down menus are standard choices.The BGAH series offers an light weight in-line solution for a wide range of applications.
It features pre-filtration by magnet column, making it ideal for use in hydraulic and lubrication oil systems that can contain high levels of iron and other ferrous contaminants.
Available with a full-flow bypass with low hysteresis.
The BGAH makes use of the In-to-Out filter principle, which means there is no possibility for contaminated oil to leak back into the system.
The In- and outlet configuration allows integration of the BGAH in a straight pipeline.
The BGAH can be specified with Microglass, Ecoglass (Leif), Cellulose and Wire mesh filter media.
Available with optional Visual or Visual/Electronic differential pressure indicators.
Max. nominal flow 500 l/min. Max. working pressure 25 bar.
Applications:
• Industrial gearboxes
• Wind turbines
• Stone crushers
• Bypass and off-line filtration
• Designed for hydraulic and lube applications
Характеристики
| Материал уплотнения: | Nitrile |
| Тип порта: | 3" SAE-3000M |
| Тип монтажа: | Inline |
| Номинальное давление: | 0-34 bar, 0-500 psi bar |
| Расход: | 250-500 L/min |
| Материал корпуса: | Aluminium |
| Рабочая температура: | -40 / +100 °C |
Характеристики
- Материал корпуса
- Aluminium
- Материал уплотнения
- Nitrile
- Номинальное давление
- 0-34 bar, 0-500 psi bar
- Рабочая температура
- -40 / +100 °C
- Расход
- 250-500 L/min
- Тип монтажа
- Inline
- Тип порта
- 3" SAE-3000M
