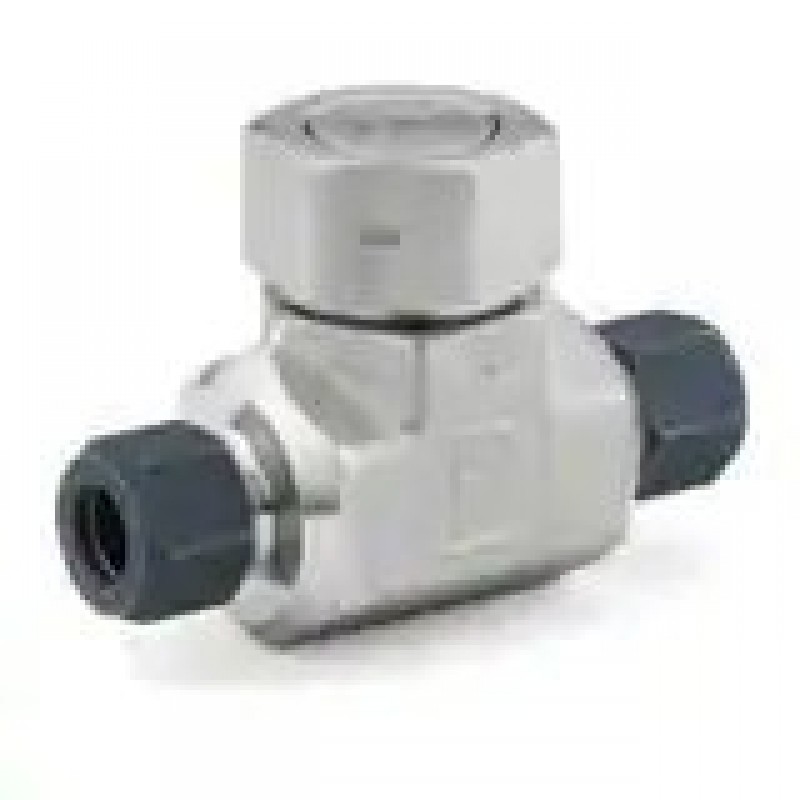

Parker’s LC-Series Lift Check Valves are a compact design and utilize a gravity assisted poppet to seal a wide variety of temperature extremes in instrumentation systems
Полное описание продукта
Parker’s LC-Series Lift Check Valve has been designed for a wide variety of temperature extremes from -100⁰F to 900⁰F (-148⁰C to 482⁰C). To achieve this performance, the check valve must be mounted in the proper orientation as the bonnet nut is clearly marked. In contrast to a general purpose lift check valve, the LC-Series has been designed to prevent flow in the reverse direction to within 99.9% of forward flow. This is ideal for liquid service applications. The gravity assisted poppet uses back pressure to achieve a seal.Many industrial valves of this type require additional fittings (adapters) when connecting to tubing system. The LC Series does not require adapters and offers both single ferrule and two ferrule compression end connection integral to the valve body
Markets:
• Chemical
• Power
• Petrochemical
• Oil & Gas
• Research
Features/benefits:
• Wide temperature range
• Variety of end connections available
• Compact design
• Rugged, forged body construction
• 316 Stainless Steel construction
Applications:
• Back Flow Preventers
• Test Panels
• High Temperature Fill Systems
Характеристики
| Максимальное рабочее давление: | 6000 psi, 414 bar |
| Присоединительный размер соединения 1: | 1/8" to 1/2", NPT F, Two Ferrule Compression, Single ferrule Compression |
| Присоединительный размер соединения 2: | 1/8" to 1/2", NPT F, Two Ferrule Compression, Single ferrule Compression |
| Минимальная рабочая температура: | -148 °C, -100 °F |
| Соблюдены требования технических условий: | DNV-ISO 9001, ASME N STAMP (NCA400/NQA-1), NUPIC, RCC-M |
| Максимальная рабочая температура: | 900 °F, 482 °C |
| Тип соединения: | Two Ferrule Inverted Medium Pressure Compression Tube Fitting, NPT |
| Область примиенения в промышленности: | Chemical, Petrochemical, Hydraulic Power Units, Refining, Research Laboratories |
| Максимальный наружный диаметр трубки: | 12 mm, 1/2 inch |
| Материал корпуса: | 316 Stainless Steel |
Характеристики
- Максимальная рабочая температура
- 900 °F, 482 °C
- Максимальное рабочее давление
- 6000 psi, 414 bar
- Максимальный наружный диаметр трубки
- 12 mm, 1/2 inch
- Материал корпуса
- 316 Stainless Steel
- Минимальная рабочая температура
- -148 °C, -100 °F
- Область примиенения в промышленности
- Chemical, Petrochemical, Hydraulic Power Units, Refining, Research Laboratories
- Присоединительный размер соединения 1
- 1/8" to 1/2", NPT F, Two Ferrule Compression, Single ferrule Compression
- Присоединительный размер соединения 2
- 1/8" to 1/2", NPT F, Two Ferrule Compression, Single ferrule Compression
- Соблюдены требования технических условий
- DNV-ISO 9001, ASME N STAMP (NCA400/NQA-1), NUPIC, RCC-M
- Тип соединения
- Two Ferrule Inverted Medium Pressure Compression Tube Fitting, NPT
