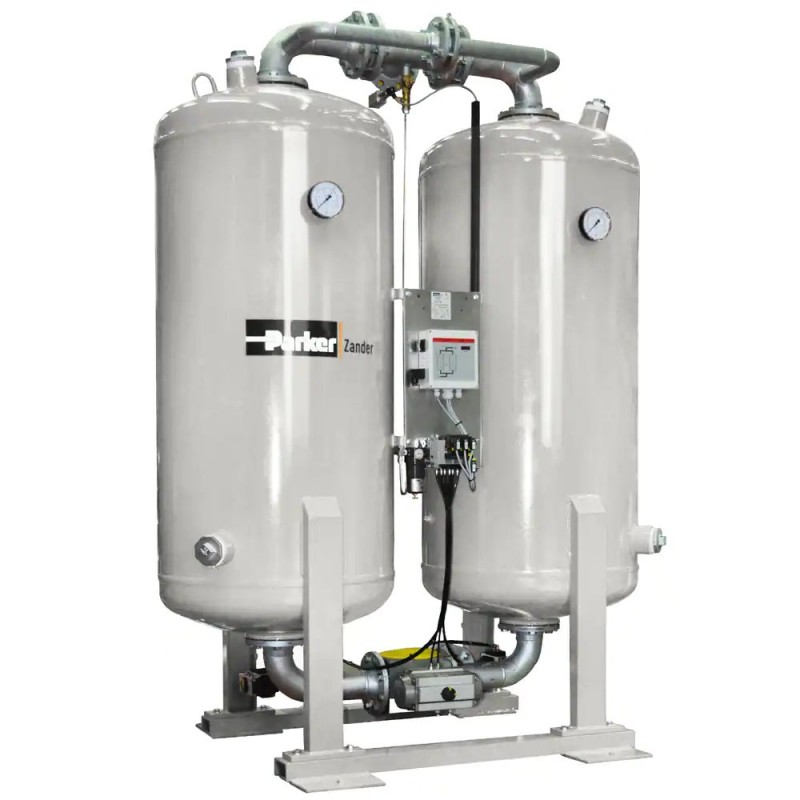

KE-MT Series Large Flow Heatless Compressed Air Dryer

Large flow heatless compressed air dryers with available flow rates up to 6100m³/h @ 7 barg and pressure dew points of -25°C to -70°C, for industrial compressed air treatment applications.

Полное описание продукта

The Parker Zander K-MT 1-8 range of heatless adsorption dryers are designed to dry industrial compressed air reliably and efficiently down to a pressure dew point of -70°C. The units are compact and can be installed either free-standing or wall mounted. They come equipped with integrated high performance pre- and after filtration and are capable of volume flows up to 86 m³/h in a system operating at 7 barg (100 psig).

Features
• Pressure dew point down to -70°C stable

• Volume flows up to 86 m³/h @ 7 barg (100 psig)

• High performance pre- and after filters installed as standard

• Energy saving dew point dependent switching (DDS) as an option

Benefits
• Highest quality air

• Compact and space saving

• Energy efficient

• Very flexible due to a wide range of options and accessories

Energy Savings
Where an application calls for a unit able to cope with variations in operating pressure and load, the installation of a dew point sensor at the outlet of the dryer is available as an option. In such an operating mode, the changeover cycle between chambers only takes place when required, and is dependent on the required dew point being achieved. Only upon reaching this adjustable set dew point, does changeover to the regenerated chamber occur. This feature enables the drying phase to be lengthened and thus avoids the unnecessary use of purge air for regeneration and consequently provides energy savings.

Compressed air can be selectively dried to meet a dew point of -25°C down to -70°C.

Sizing and Selection
To ensure quoted air purity performance is met, a compressed air dryer must be sized correctly for minimum operating pressure, maximum inlet temperature and maximum inlet flow rate using the correction factors found in the Product Information Sheet.

For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor.

Характеристики

Максимальный расход:	706 to 3590 (@101 psig / PDP -13°F) CFM
Максимальное рабочее давление:	10 barg, 145 psig
Максимальная температура окружающей среды:	50 °C
Минимальная температура окружающей среды:	1.5 °C
Степень защиты, обеспечиваемая оболочкой:	IP54
Максимальная рабочая температура:	50 °C, 122 °F
Минимальная рабочая температура:	25 °C, 77 °F
Размер порта:	DN50 to DN125
Тип соединения:	Flanged according to EN1092-1
Вес:	640 to 2850 kg
Ширина:	1060 to 2160 mm
Глубина:	840 to 1565 mm
Высота:	2080 to 2820 mm
Требования к электроснабжению:	230V, 50-60Hz
Тип контроллера:	Multitronic
Минимальное рабочее давление:	5 barg, 72.52 psig
Потребляемая мощность:	7.2 VA
Тип продукта:	Heatless
Точка росы под давлением:	-25 to -70 °C, -13 to -97 °F
Бренд:	Parker Zander
Соблюдены требования технических условий:	PED 97/23/EG Module D+B Category II, others on request
Совместимый фильтр грубой очистки:	CF0372CFD to CF1116CFD
Совместимый фильтр тонкой очистки:	CF0372EMD to CF1116EMD
