Insert Shuttle Valves

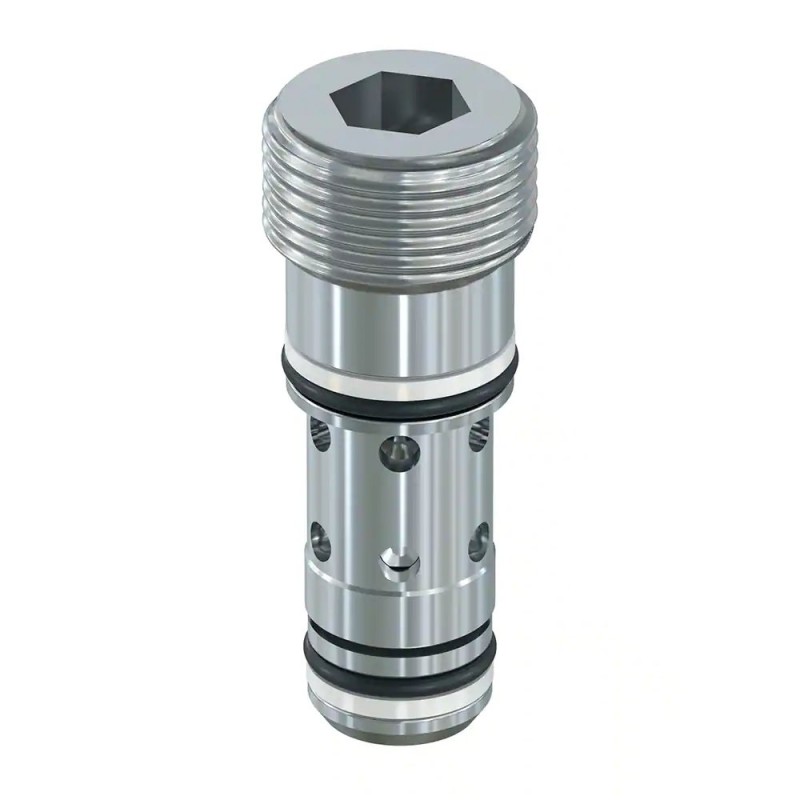

Parker's insert type shuttle valves for countersinking inside manifolds are available as either poppet or ball type; capable of flows up to 38 lpm (10 gpm) and pressures up to 420 bar (6000 psi).

Полное описание продукта

Parker's insert type shuttle valves can handle flows up to 38 lpm (10 gpm) and 420 bar (6000 psi) in a compact size that is meant to be countersunk inside manifolds in order to optimize manifold size and complexity. These are available as either a poppet or ball type, with the higher flow limitation on the poppet design, and higher pressure on the ball design. These reliable insert shuttle valves function similar to the cartridge style valves, but give the advantage of being able to mount without being seen or increasing manifold surface area.

Markets:
• Aerial
• Construction Equipment
• Forestry Equipment
• Material Handling Equipment
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile

Features/Benefits:
• Compact, cost effective design
• Ball type construction for maximum durability
• Minimal leakage - less than 3 drops/min.
• Contamination tolerant
• Hardened working parts for maximum durability
• All external parts zinc plated

Applications:
• Load Sensing

Additional Technical Insight:
This is a compact insert low leakage shuttle valve which selects the highest pressure from two inputs.

Характеристики

Расход:	2.5, 10 Gal/min, 9.5, 38 L/min
Материал уплотнения:	Nitrile, Fluorocarbon
Максимальный расход:	2.5, 10 Gal/min, 9.5, 38 L/min
Максимальное расчетное давление на входе:	5000, 6000 psi, 350, 420 bar
Максимальное рабочее давление:	5000, 6000 psi, 350, 420 bar
Интенсивность утечек:	10 @ 5000 PSI (350 BAR) drops/min
Функция:	Shuttle
Тип эксплуатации:	Automatic
Тип срабатывания:	Pressure Sensing
Конфигурация:	Insert
Для типа жидкости:	Mineral-based or synthetic hydraulic fluids
Максимальная кинематическая вязкость:	45-2000 SSU (6 to 420 cSt)
Показатель эффективности фильтра:	ISO 4406 18/16/13, SAE Class 4
Материал клапана:	All parts steel. All operating parts hardened steel
Размер полости:	CAVSW-3, 3Z
Момент затяжки при монтаже:	7 lb-ft, 10 Nm
Рабочая температура:	-30 to +250, -15 to +400 °F, -34 to +121, -26 to +204 °C
Максимальная рабочая температура:	+250, +400 °F, +121, +204 °C
Минимальная рабочая температура:	-30, -35 °F, -15, -26 °C
Вес:	0.02, 0.04 lb, 0.01, 0.02 kg
