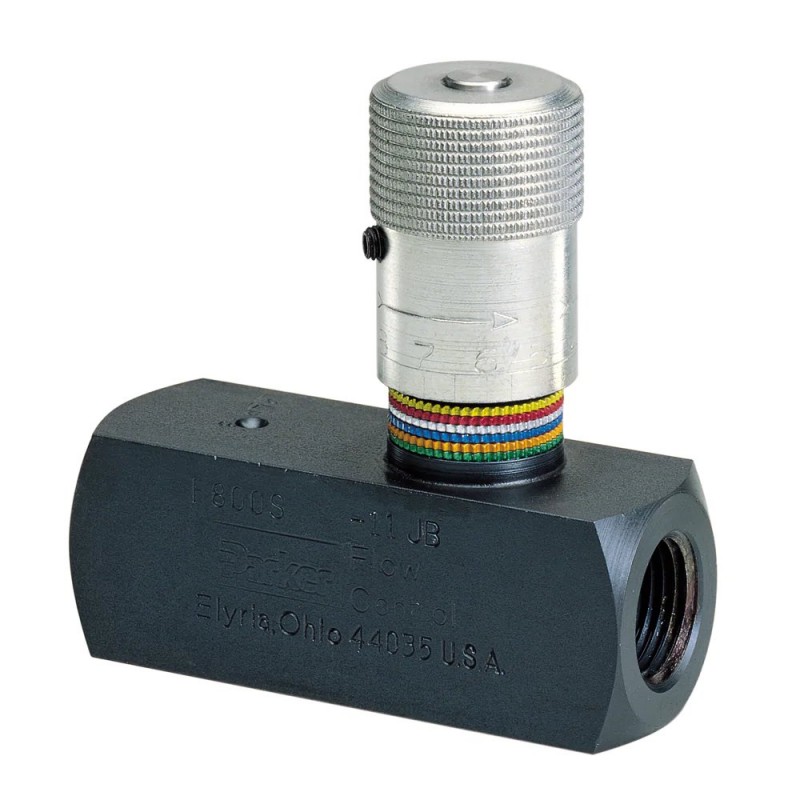

The Colorflow F series of hydraulic flow control valves permits free flow in one direction and metered flow in the reverse direction. This flow control valve is used in air and oil applications.
Полное описание продукта
Parker’s F Series in-line flow control valves have either fine or standard metering needles for flow control and a fully guided poppet for free flow in reverse direction. Our superior, fully guided poppet design eliminates wobble and erratic travel that can commonly occur with less durable ball check type construction. The standard soft seat poppet on these check valves provide near zero leakage and come standard in sizes up to 1/2”. Options include oil and air metering valves for hydraulic and pneumatic application.
Markets:
• Factory Automation
• Machine Tools
• Marine
• Material Handling
• Mining
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Molding
• Oil &Gas
• Power Generation
• Vehicle Assembly Facilities
Features/Benefits:
• Port options include ISO 6149, NPT, BSPP, BSPT and SAE
• Material offerings are brass, steel and stainless steel
• Tamperproof option available
• The exclusive “Colorflow” color-band provide an accurate visual indication of setting
• Set screw locks the valve on a desired setting
Applications:
• Suitable for general hydraulic applications
Характеристики
| Максимальное рабочее давление: | 500, 2000, 3000, 5000 psi |
| Максимальный расход: | 15, 25, 40, 8, 3, 5, 70, 100, 150 Gal/min, 57, 95, 151, 30, 11, 19, 265, 379, 568 L/min |
| Конфигурация: | In-Line |
| Максимальная рабочая температура: | 250, 400 °F, 121, 205 °C |
| Тип срабатывания: | Manual |
| Минимальная рабочая температура: | -40, -15 °F, -40, -26 °C |
| Функция: | Flow Control |
| Тип соединения: | NPT, SAE, BSPT, BSPP |
| Присоединительный размер: | 1/8", 1/4", #4 SAE, 3/8", #6 SAE, 1/2", #8 SAE, #10 SAE, 3/4", #12 sAE, 1", #16 SAE, 1 1/4", # 20 SAE, 1 1 /2", #24 SAE, 2", #32 SAE |
| Бренд: | Colorflow |
| Материал корпуса: | Brass, Steel, Stainless Steel |
| Рабочая среда: | Hydraulic Oil and Air |
| Материал уплотнения: | Nitrile, Fluorocarbon |
| Расход: | N/A |
- Бренд
- Colorflow
- Конфигурация
- In-Line
- Максимальная рабочая температура
- 250, 400 °F, 121, 205 °C
- Максимальное рабочее давление
- 500, 2000, 3000, 5000 psi
- Максимальный расход
- 15, 25, 40, 8, 3, 5, 70, 100, 150 Gal/min, 57, 95, 151, 30, 11, 19, 265, 379, 568 L/min
- Материал корпуса
- Brass, Steel, Stainless Steel
- Материал уплотнения
- Nitrile, Fluorocarbon
- Минимальная рабочая температура
- -40, -15 °F, -40, -26 °C
- Присоединительный размер
- 1/8", 1/4", #4 SAE, 3/8", #6 SAE, 1/2", #8 SAE, #10 SAE, 3/4", #12 sAE, 1", #16 SAE, 1 1/4", # 20 SAE, 1 1 /2", #24 SAE, 2", #32 SAE
- Рабочая среда
- Hydraulic Oil and Air
- Расход
- N/A
- Тип соединения
- NPT, SAE, BSPT, BSPP
- Тип срабатывания
- Manual
- Функция
- Flow Control
