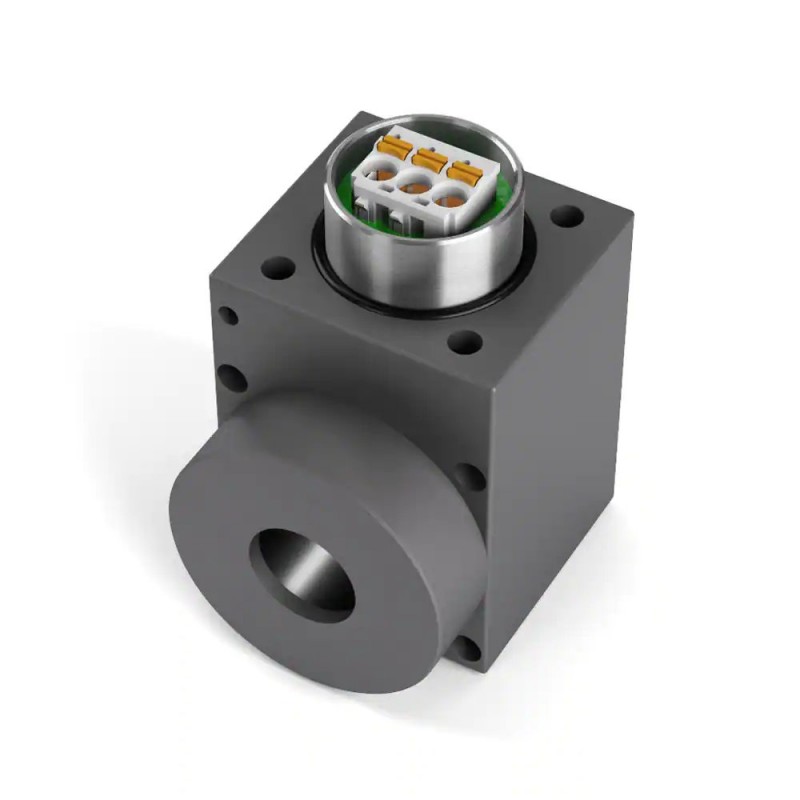

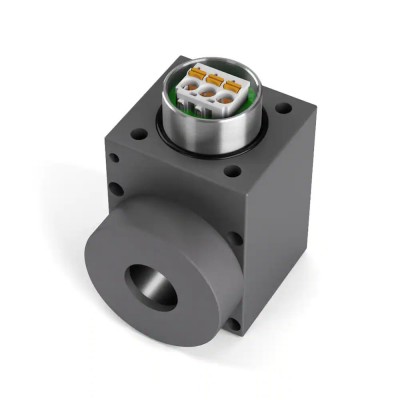

Explosion Proof Coils

The HLC coil series is for use on Parker solenoid cartridge assemblies in potentially hazardous environments.

Полное описание продукта

The Parker HLC family of Explosion Proof Solenoid Coils are robustly designed to function in rugged environments. These coils are well suited for use in potentially explosive or hazardous gas environments. With its modular design due to a rotatable conduit cover and wide range of global certifications, Parker’s HLC series of Explosion Proof Coils are perfect for your most challenging application.

Markets:
• Oil and Gas
• Power Generation

Features/Benefits:
• Fits standard on/off solenoid products
• Includes terminal block for ½" NPT and M20 x 1.5 conduit connections
• Modular design for multiple valve options
• Multiple global certifications for regional flexibility
• Corrosion Resistant up to 1,000 Hour Salt Spray
• Conduit cover may be rotated in four directions and is removable for ease of installation

Applications:
• Turbine Process Control
• Specialty Actuators

Additional technical insight:
HLC Series is designed for two position, on-off solenoid valve products in the Parker standard catalog. Consult factory for applications utilizing other products. HLC Series performance varies from the standard Super Coil. Consult factory for valve performance in applying the HLC series Explosion Proof coil.

Характеристики

Напряжение на входе:	12 VDC, 24 VDC, 120 VAC
Потребляемая мощность:	19.3, 21.2, 21.4, 29.6, 29.9 W
Тип соединения:	1/2" NPT Conduit, M20x1.5 Metric Conduit
Сопротивление:	6.8, 4.9, 19.3, 26.9, 602 Ω
Рабочий цикл:	Continuous @ 100% voltage
Соблюдены требования технических условий:	Up to 1000 hr Salt Spray
Температурный класс газа:	T4
Температурный класс пыли:	T135
Минимальная температура окружающей среды:	-40 °F, -40 °C
Максимальная температура окружающей среды:	122, 158, 176 °F, 50, 70, 80 °C
Вес:	1.95 lb, 0.88 kg
