Артикул: PRK2175

В наличии

Hydracushions – HCF Series - (Europe)

Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.

Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Не отвечаем 5 минут — скидка на весь заказ!

sale@ru-parker.com

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 134-22-05

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Parker Hydracushions are a cost efficient type of bladder accumulator ideally suited for the Mobile industry (172 & 210 bar/ 0.5 to 4 Litres).

Полное описание продукта

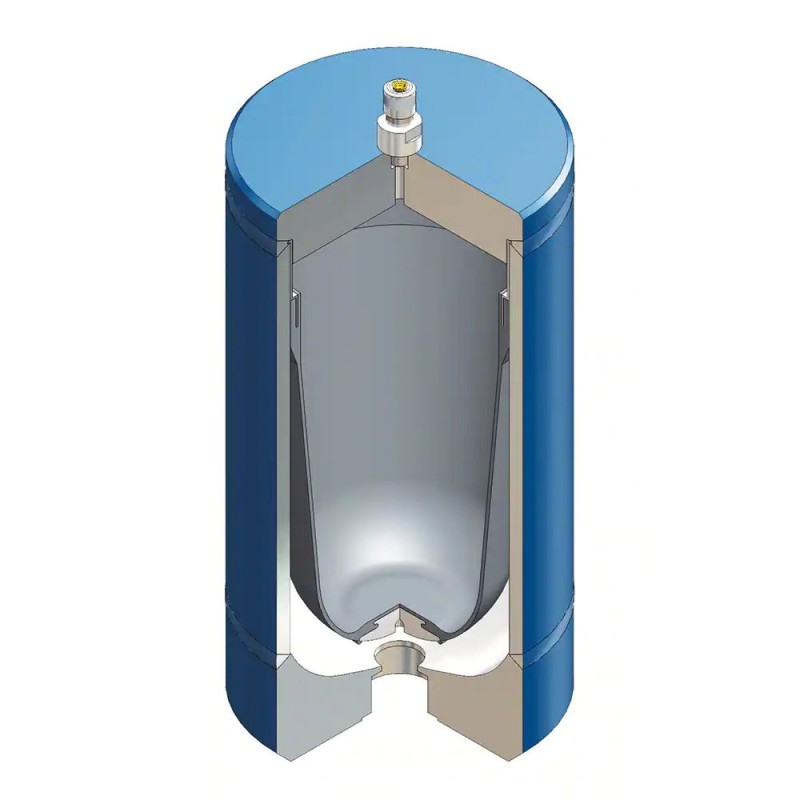

Parker HCF series Hydracushions are non-repairable bladder accumulators that have been specially designed for high volume, low cost applications where it is more economical to replace a unit than to refurbish it after a long service life.

The HCF series incorporates bladder technology within a robust welded shell design. Engineered and manufactured to the highest standards this product offers reliable and optimum performance for your hydraulic system. A complete range of accumulator accessories is available for the HCF Hydracushion series

Parker Olaer have developed very sophisticated simulation software to optimize sizing recommendations for hydraulic accumulators. You can download the accumulator sizing software from the Product Support tab.

Markets:
• Mobile

Features/Benefits:
• Quality and Reliability: The HCF series incorporates bladder technology within a robust welded shell design. Engineered and manufactured to the highest standards this product offers reliable and optimum performance for your hydraulic system.
• Economical: The HCF hydracushions offer a low cost solution for hydraulic systems.

Applications:
• Forklift trucks
• Crop sprayers

Function
Hydraulic accumulators are an essential component for the optimum operation of a hydraulic circuit. The accumulator enables:
• Energy Storage: Saves energy without loss and redistributes when required therefore reducing installed power.
• Pressure Compensation: Absorbs pressure spikes from pumps or other components to control pressure and flow rates in the hydraulic circuit.
• Volume Control: Absorbs fluid volume variations induced by temperature changes in a closed hydraulic circuit and maintains a rated pressure.
• Emergency Energy Storage: In case of failure of the main energy source, these accumulators can provide sufficient energy to complete an operation or to realize a full hydraulic cycle.
• Hydraulic Spring/Shock Absorber: A bladder accumulator can act as a gas spring suppressing shocks and vibrations in hydraulic systems of lifting vehicles (e.g. Forklift trucks) and maintains real suspension of the load on a gas spring.

We have included a small selection of part numbers, please download the hydracushion brochure for more information or contact us.

Formerly branded as Olaer and Fawcett Christie Hydraulics.


Характеристики

Серия продуктов:HCF
Материалы изготовления:Carbon steel shell and nitrile bladder
Соблюдены требования технических условий:CE Marked
Максимальный расход:159, 204, 363, 470 L/min
Размер проходного отверстия клапана:1/4" BSPMor 0.302" x 32 T.P.I., 1/4" BSPM inch
Размер порта:G1/2" BSPF, G3/4" BSPF, G1" BSPF, G1 1/4" BSPF inch
Высота:190, 230, 282, 345 mm
Диаметр:95, 120, 145, 172 mm
Вес:3, 10, 16, 23 kg
Применение:Mobile e.g. Forklift Trucks and Crop Sprayers

Технические характеристики PRK2175

Характеристики

Вес
3, 10, 16, 23 kg
Высота
190, 230, 282, 345 mm
Диаметр
95, 120, 145, 172 mm
Максимальный расход
159, 204, 363, 470 L/min
Материалы изготовления
Carbon steel shell and nitrile bladder
Применение
Mobile e.g. Forklift Trucks and Crop Sprayers
Размер порта
G1/2" BSPF, G3/4" BSPF, G1" BSPF, G1 1/4" BSPF inch
Размер проходного отверстия клапана
1/4" BSPMor 0.302" x 32 T.P.I., 1/4" BSPM inch
Серия продуктов
HCF
Соблюдены требования технических условий
CE Marked
