Артикул: PRK2166
Sandwich Plates for Regenerative and Hybrid Circuits - Series H10
Доступно к заказу
Цена по запросу
Гарантия лучше цены
Предложим наиболее выгодную цену на данный товар
Parker sandwich plates series H10 allow energy saving circuits for differential cylinders in combination with various directional control and proportional DC valves in size NG10 / CETOP 05.
Полное описание продукта
The robust sandwich plates H10 have been specially designed to implement energy saving regenerative or switchable hybrid circuits for differential cylinders to achieve significant energy savings and thus operation cost reductions. They are suitable for the following Parker directional control and proportional directional control valves in size NG10 / CETOP 05:• D3DWR*
• D31NWR*
• D3FBR*
• D31FBR*
• D31FCR*
• D3FPR*
• D31FPR*

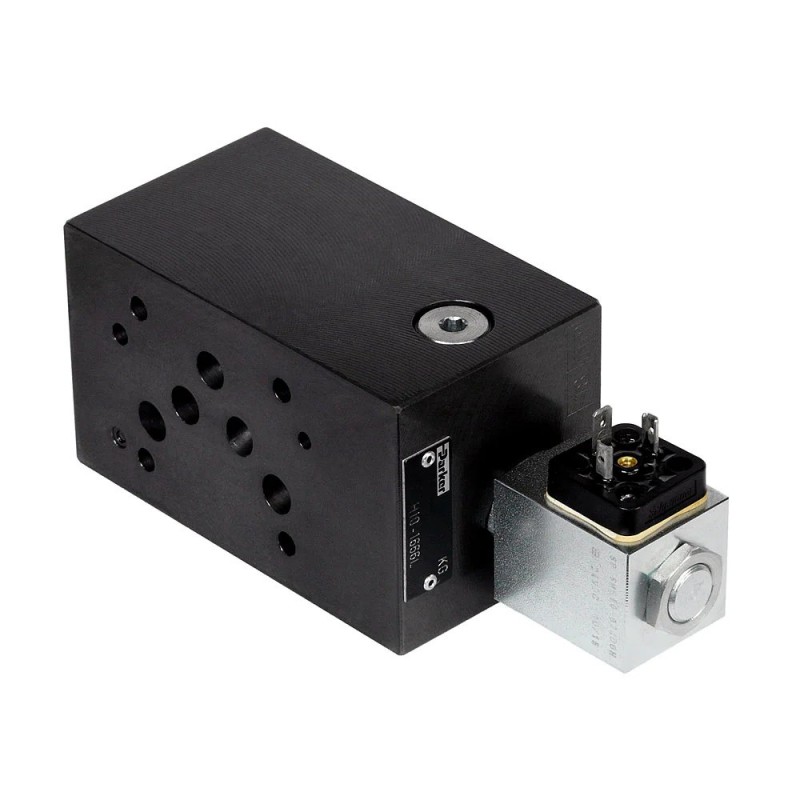

Series H10 is available in two versions: code H10-1662 for A-regeneration, code H10-1666L for hybrid function.
Markets:
• Industrial
Features/Benefits:
• Compact, proven design that represents our long-term experience in hydraulics - increases reliability
• Industry-standard mountings according to DIN ISO, CETOP and NFPA - for quick, easy integration
• Enable to create energy-saving circuits - resulting in lower operation costs
• Short delivery time for all variations - no warehousing necessary
• To be used in combination with the above-mentioned valves. See also series D31NWR and series D3FB, D3FP, D31FB, D31FC and D31FP
Applications:
• Suitable for general hydraulic applications
Function:
• Port T1 is used as single tank port. Port T2 is separated from port T1 by the elimination of the tank bridge and is used for regeneration into the A port
• The circuit conception can be integrated into the manifold block as well
Характеристики
| Серия продуктов: | Plate |
| Тип монтажа: | Sandwich plate |
| Функция: | 4-way, Proportional |
| Тип срабатывания: | Proportional, Solenoid |
| Соединение порта: | NG10 / CETOP 05 |
| Максимальное рабочее давление: | 350 bar |
| Максимальный расход: | N/A |
| Максимальная рабочая температура: | 60 °C |
| Минимальная рабочая температура: | -25 °C |
| Материал уплотнения: | N/A |
| Для типа жидкости: | Hydraulic oil, Water glycol |
| Вес: | 2.8 to 4.9 kg |
Характеристики
- Вес
- 2.8 to 4.9 kg
- Для типа жидкости
- Hydraulic oil, Water glycol
- Максимальная рабочая температура
- 60 °C
- Максимальное рабочее давление
- 350 bar
- Максимальный расход
- N/A
- Материал уплотнения
- N/A
- Минимальная рабочая температура
- -25 °C
- Серия продуктов
- Plate
- Соединение порта
- NG10 / CETOP 05
- Тип монтажа
- Sandwich plate
- Тип срабатывания
- Proportional, Solenoid
- Функция
- 4-way, Proportional
