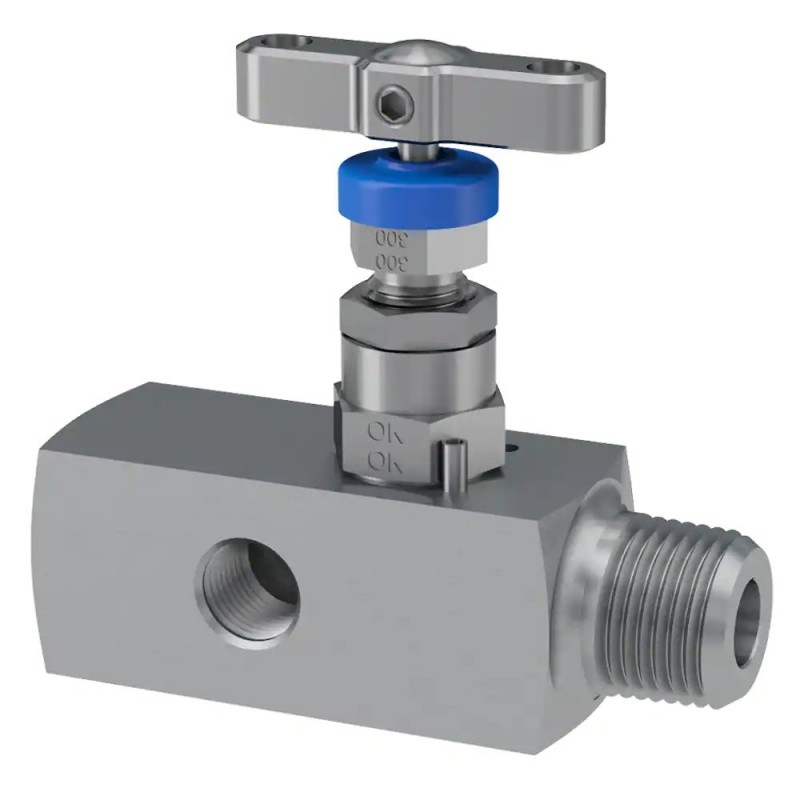

Gauge Valves with Single Vent Port, Needle Pattern – H Series

Parker's bar stock gauge valves with single vent, designed for safe isolation and control of flow to pressure measuring devices and venting or draining of trapped process media. Available in pressure ratings up to 6,000 psi and 10,000 psi.

Полное описание продукта

Parker's single block gauge valves with vent are needle type valves designed for safe and reliable control of flow into a wide range of measurement and analysis instruments such as pressure gauges, pressure transmitters and pressure switches. These gauge valves also allow for venting/draining of any process media that may be trapped, following isolation of the instrument for maintenance and/or removal purposes.

Parker's gauge valves are available with a wide array of connection types and sizes. For the ultimate in safety, reliability, speed, and ease of installation all valves can be specified with integral tube connections utilising Parker A-LOK® (Two Ferrule) or CPITM (Single Ferrule) compression fitting technologies. This will also ultimately reduce overall user costs. As standard, gauge valves are offered with the traditional external thread and nut or inverted (internal thread) design to inlet and outlet connections. They can also be supplied with integral swivel gauge adaptor to the outlet through a socket weld, generally conforming to ANSI B16.11.
The valves have a 1/4" NPT side port for the optional fitting of a captive bleed/vent valve or a blank plug. When a tube connection is required, Parker’s unique PTFree connectTM option to the side port is recommended. This system enables users to assemble tube lines without the need for PTFE tape or liquid sealant.

Industries:
• Oil and Gas
• Chemical
• Petrochemical
• Power Generation
• Nuclear
• Transportation

Features/Benefits:
• Self-centering non-rotating stem tip for bubble-tight shut-off
• Secure anti-vibration gland lock nut
• Anti-blowout low torque back seating stem
• Gland thrust bush for uniform packing compression and tight sealing
• Ergonomic T-bar handle with positive retention
• Dual purpose dust cap provides functional identification
• Externally adjustable gland
• Annealed sealing washer guarantees 100% sealing assurance
• Variety of end connections including integral compression fittings for reduced overall user's cost
• Wide range of corrosion resistant materials

Applications:
• Pressure & Flow measurement
• Lubrication skids
• Water Treatment
• Chemical injection skids
• Hydraulic systems for wellhead control
• Emergency shut down
• Pumping packages
• Gas booster systems
• Test equipment

Характеристики

Размер вентиляционного отверстия:	1/4 inch
Тип вентиляционного отверстия:	NPT Female
Материал седла:	Metal to Metal
Рабочая температура:	PTFE packing: From -54°C to +260°C, From -65°F to +500°FGraphite packing: From -54°C to +538°C, From -65°F to +1000°F
Дополнительные функции:	Contact Parker for other options
Типоразмер диафрагмы:	4 mm
Коэффициент пропускной способности:	0.35
Для типа жидкости:	General Gaseous and Liquid Media
