Артикул: PRK2101

В наличии

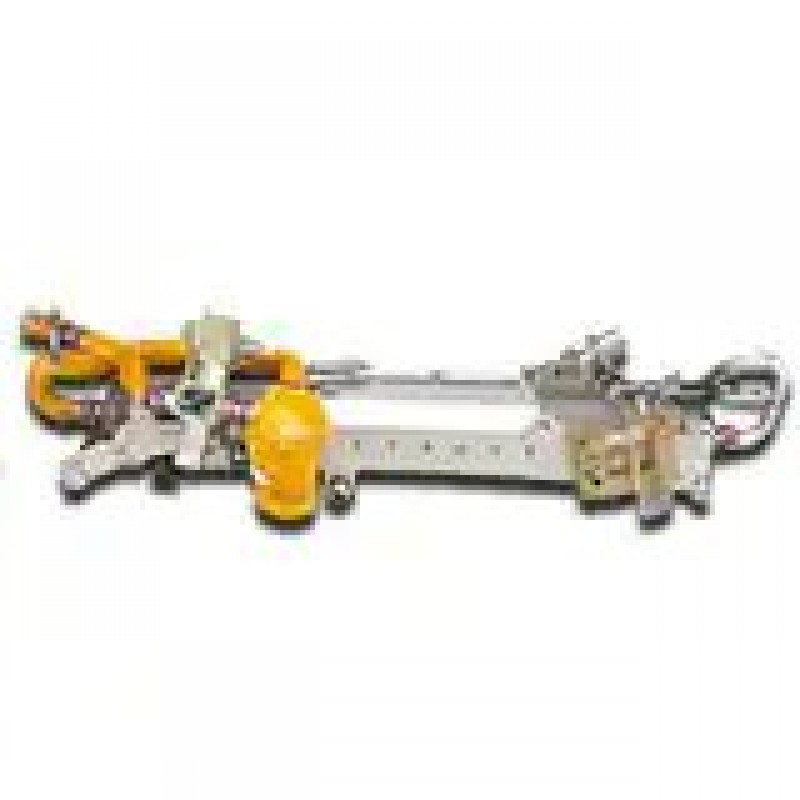

Single ASM Pallet

Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.

Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Не отвечаем 5 минут — скидка на весь заказ!

sale@ru-parker.com

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 134-22-05

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

The single air separation module (ASM) pallet is part of a fuel tank inerting system (FTIS) and provides inert gas to aircraft fuel tanks by removing oxygen from the conditioned bleed airstream to supply the tanks with inert gas.

Полное описание продукта

Parker's inerting pallet system provides inert gas to aircraft fuel tanks. The nitrogen-enriched air (NEA) generation subsystem removes oxygen from the conditioned bleed airstream to supply the tanks with inert gas. The pallet incorporates an air separation module to remove oxygen from a conditioned bleed air supply to generate the inert gas. The Pallet is designed with a significant level of safety to protect the fuel tanks against over temperature, unsafe low pressure, over pressure, and contamination ingression.

Single ASM Pallet designs promote a modular approach to support on-wing maintenance actions. The pallet is installed in non-pressurized belly fairing compartment(s). The general architecture features air filtration, over-temperature protection, fuel ingress protection, flow switching, system control, health monitoring, and NEA generation using an air separation module (ASM). Most of the equipment upstream of the ASM is used to properly condition the ASM inlet air to ensure optimal ASM performance and life.

As the premier world leader in fuel tank inerting systems, Parker has turned 50-plus years of inerting technology leadership into an unequalled pedigree that translates into durable, world-class products that last, flight after flight.

APPLICATIONS:
Commercial aircraft, military fighters and transports, business and general aviation.

FEATURES AND ATTRIBUTES:
Parker's inerting pallet system uses proprietary Parker fibers, resulting in a smaller envelope that is lighter weight and less costly than competing systems. The palletized system features air filtration, over-temperature and fuel ingress protection, flow switching, system control, health monitoring, and NEA generation using an air separation module.

Характеристики

Для типа жидкости:Air
Рабочее давление:60 psig max at 140°F +/-10°F
Максимальная рабочая температура:+140°F at 60 psig °F
Рабочая температура:-67 to 200 °F
Вес:46.5 lbs max with different applications lb

Технические характеристики PRK2101

Характеристики

Вес
46.5 lbs max with different applications lb
Для типа жидкости
Air
Максимальная рабочая температура
+140°F at 60 psig °F
Рабочая температура
-67 to 200 °F
Рабочее давление
60 psig max at 140°F +/-10°F
