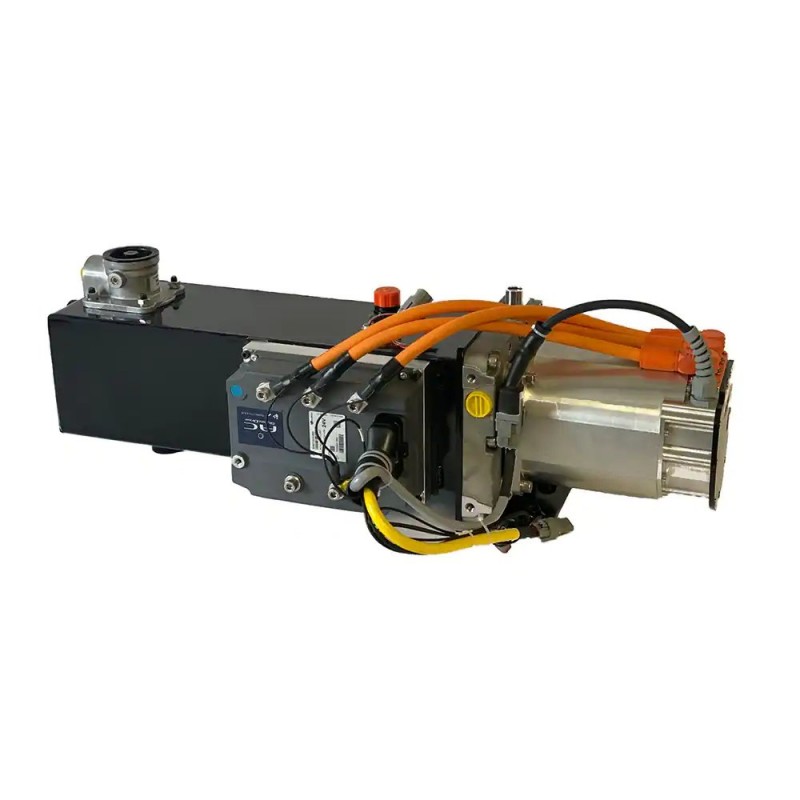

Electro-Hydraulic Pump System - eHPS

Parker's eHPS provides an integrated electro-hydraulic system used to assist in steering for large commercial vehicles and buses without drawing power from an engine.

Полное описание продукта

Parker's eHPS system combines powerful, yet compact, brushless, permanent magnet, motor technology with a performance matched controller, silent pump, reservoir, and other accessories to meet demanding hydraulic power needs in transportation applications. By utilizing the high performance of the GVM motor and the low noise design of the PGP500H pump, the eHPS provides on-demand power steering, a simplified installation process, high efficiency, and quiet operation. It's the ideal, electric, power steering solution for an increasing electrified world.

Markets:
• Transportation

Features/Benefits:
• Motor, pump, tank, relief valve, filter, and inverter in one package
• Efficiency of over 80%
• Quiet operation of less than 57dBa
• Built and assembled in America

Applications:
• Large Commercial Vehicles
• Buses

Technical Specifications:
• Rated voltages from 24 to 800 VDC
• Peak power from 3kW to > 10kW
• Flow up to 25 l/min
• Pressure up to 207 bar
• IP67 protection
• Tested and validated to SAE J1455 vehicle standards

Характеристики

Тип гидромотора:	GVM Permanent Magnet. Air Cooled.
Тип насоса:	Parker Helicoidal Rotor Pump
Напряжение на входе:	24 to 800VDC
Выходная мощность:	3kW to >10kW
Номинальное давление:	Up to 207 bar
Минимальная температура жидкости:	-40C
Максимальная температура жидкости:	80C; Consult factory for higher temperatures.
