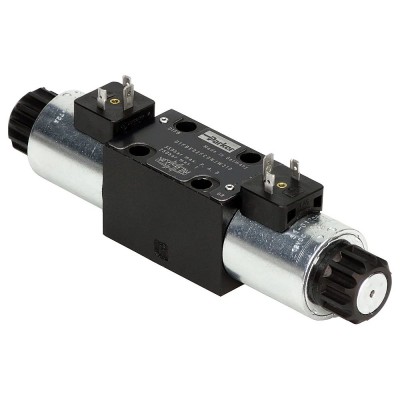

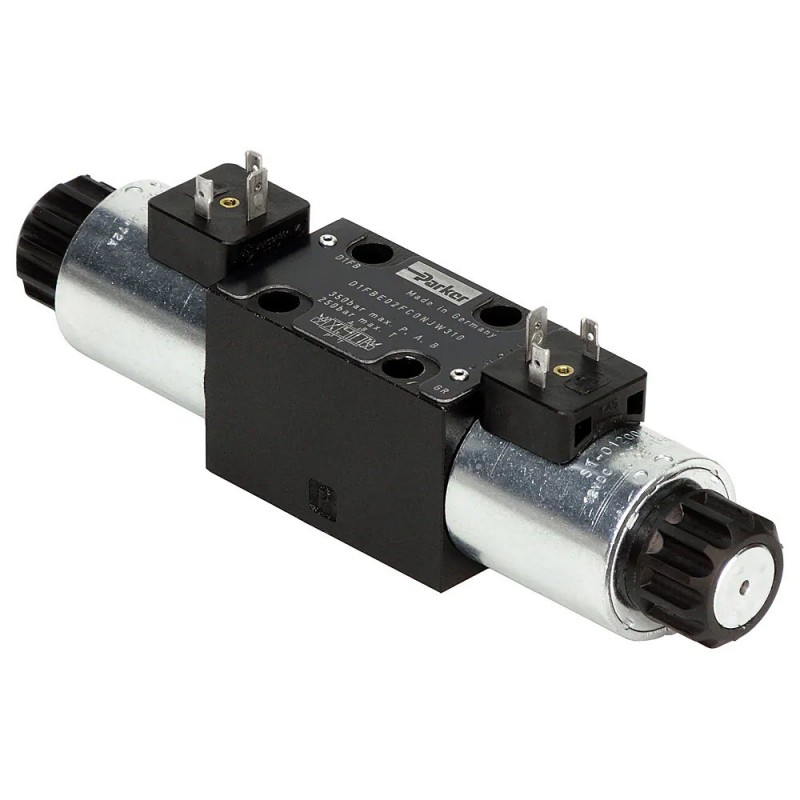

The robust and durable proportional pressure reducing valve series D1FV in NG06 (CETOP 03) provides a very good pressure control behaviour. It is optionally available as explosion proof version according to ATEX and IECEx.
Полное описание продукта
The robust proportional pressure reducing valve series D1FV in size NG06 / CETOP 03 is predestined for precise pilot controls due to its excellent pressure control behaviour.The D1FV controls the pressure in the A- or B-ports using the barometric feedback principle. The parameters can be saved, changed and duplicated in combination with the digital power amplifier PWD00A-400. The value parameters can be edited with the common ProPxD software.
D1FV*EE
The D1FV*EE with explosion proof solenoids is based on the standard D1FV series. It is not only ATEX certified (explosion proof class is Ex e mb II T4 Gb for use in zone 1 and 2) but also equipped with IECEx compliant solenoids which are certified in accordance with IECEx standard for equipment class 2 G.
Markets and Applications
• Suitable for practically any industrial application
Features
• Barometric feedback
• High repeatability from valve to valve
• Low hysteresis
• Manual override
• Pressure stages 25 bar and 45 bar
• Optional for D1FV*EE: Coil to permit ambient temperature up to +60 °C, modification XG371
Benefits
• Robust, proven design that represents our long-term experience in hydraulics
• Predestined for pilot controls
• Shortest lead times
Характеристики
| Соединение порта: | NG06 / CETOP 03 |
| Тип монтажа: | Subplate mounting |
| Тип срабатывания: | Proportional, solenoid |
| Тип эксплуатации: | Direct |
| Функция: | 2-way, 3-way |
| Максимальное рабочее давление: | 350 bar |
| Максимальный расход: | 10 L/min |
| Максимальная рабочая температура: | 60 (explosion-proof version: 40) °C |
| Минимальная рабочая температура: | -20 (standard with NBR seal: -25) °C |
| Для типа жидкости: | Hydraulic oil according to DIN 51524...535, Water glycol |
| Положение монтажа: | Unrestricted |
| Вес: | D1FV: 2.2, D1FV*EE: 3.5 kg |
| Материал уплотнения: | FPM, NBR |
Характеристики
- Вес
- D1FV: 2.2, D1FV*EE: 3.5 kg
- Для типа жидкости
- Hydraulic oil according to DIN 51524...535, Water glycol
- Максимальная рабочая температура
- 60 (explosion-proof version: 40) °C
- Максимальное рабочее давление
- 350 bar
- Максимальный расход
- 10 L/min
- Материал уплотнения
- FPM, NBR
- Минимальная рабочая температура
- -20 (standard with NBR seal: -25) °C
- Положение монтажа
- Unrestricted
- Соединение порта
- NG06 / CETOP 03
- Тип монтажа
- Subplate mounting
- Тип срабатывания
- Proportional, solenoid
- Тип эксплуатации
- Direct
- Функция
- 2-way, 3-way
