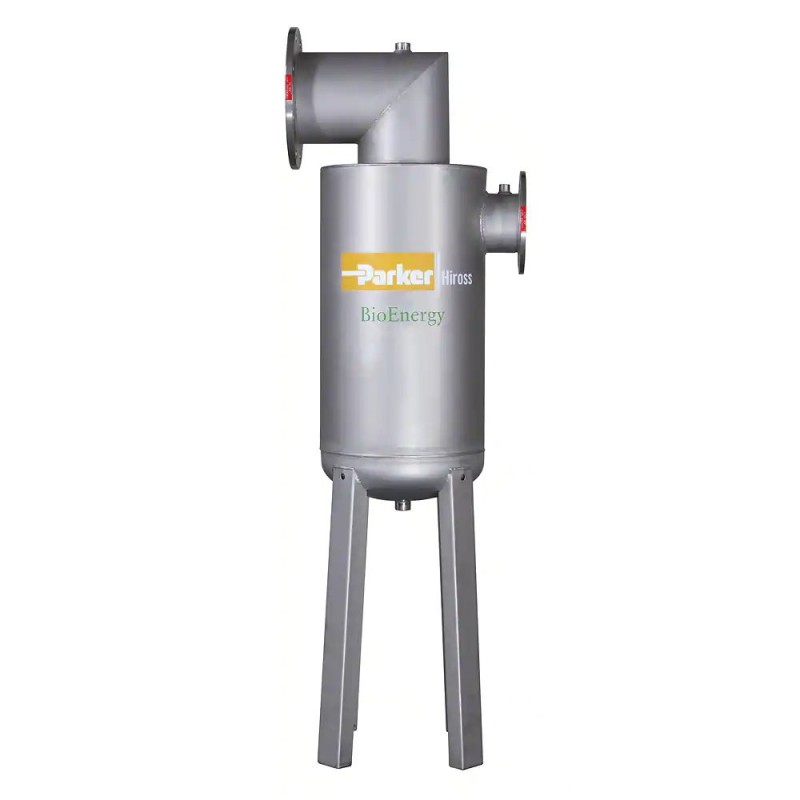

Hypersep BioEnergy Water Separator

Energy efficient stainless steel water separators for the treatment of biogas from anaerobic digesters and landfills.

Полное описание продукта

Bioenergy is renewable energy stored in organic materials such as plant matter and animal waste, known as biomass. The wide variety of biomass fuel sources include agricultural residue, pulp/paper mill residue, urban wood waste, forest residue, energy crops, landfills and animal waste. Anaerobic digestion is the process that occurs when bacteria decompose organic materials in the absence of oxygen to generate biogas.

Biogas is primarily composed of methane and carbon dioxide with smaller amounts of hydrogen sulphide and ammonia. Trace amounts of other gases like hydrogen, nitrogen or carbon monoxide are also present in the biogas. Usually the mixed gas is saturated with water vapour and may contain dirt particles.

For biogas as a fuel, most of the impurities have to be removed, as they may cause corrosion, deposits and damage to equipment. In particular biogas needs to be dried by cooling it to temperatures close to 5°C using water-cooled heat exchangers working with water chillers. Hyperchill Bioenergy is a key component of this biogas treatment process.

Hypersep BioEnergy CSB series water separators have been specifically designed for biogas applications. They provide safe and reliable operation in the harsh environments typically found in anaerobic digester and landfill biogas production areas thanks to the use of stainless steel components specifically treated to maximize corrosion resistance.

Features & Benefits:

• Cyclonic separator optimized for biogas applications with a high separation efficiency and a very low pressure drop for very cost efficient operation

• High quality materials (parts in contact with biogas in AISI304 or AISI316L, parts not in contact with biogas in AISI304))

• Pickling and passivation treatment for maximum corrosion resistance

• Suitable for installations with horizontal and vertical cooler, therefore very flexible

• Maximum working pressure: 0.5 bar g

For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor.

Характеристики

Максимальное рабочее давление:	0.5 barg, 7.25 psig
Вес:	14 to 153 kg, 30.86 to 337.31 lb
Ширина:	365.5 to 833 mm, 14.39 to 32.8 inch
Высота:	535.5 to 1805 mm, 21.08 to 71.06 inch
Тип соединения:	Flanged DIN EN 1092-1
Максимальный расход:	61.80 to 1871.69 CFM
Максимальная рабочая температура:	100 °C, 212 °F
Минимальная рабочая температура:	-10 °C, 14 °F
Бренд:	Parker Hiross
Соблюдены требования технических условий:	not necessary due to low pressure
Применение:	Water separation from biogas
Размер выпускного порта:	DN50 to DN300
