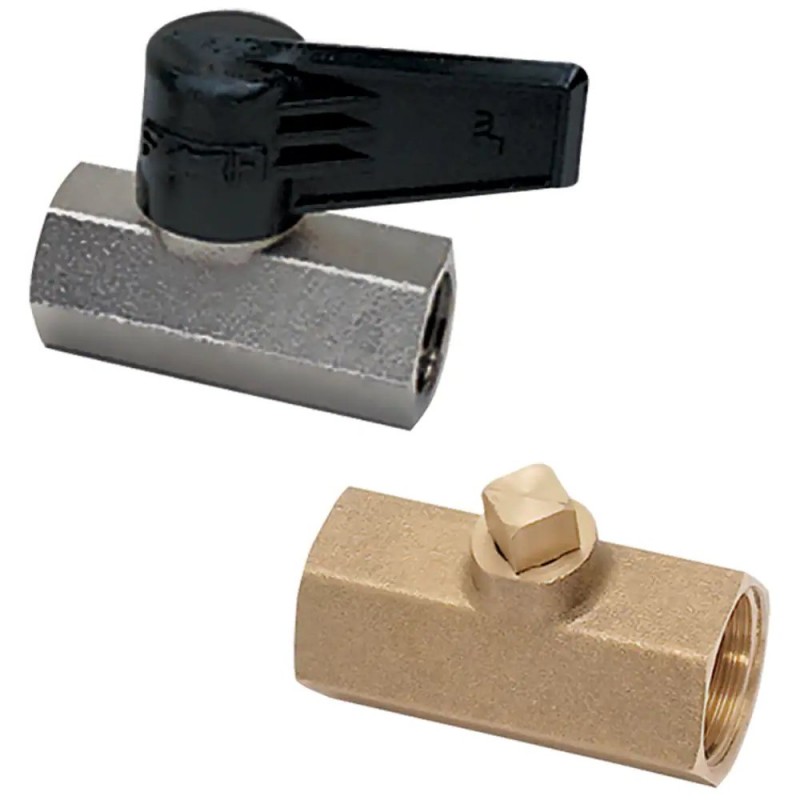

Ball Valves Universal Light Series

Using the Universal Series technology, the Parker Legris light series valves offer the advantages of compactness, ease of operation and long-term reliability.

Полное описание продукта

Using the Universal Series technology, the Parker Legris light series valves offer the advantages of compactness, ease of operation and long-term reliability.

Features/Benefits:

- Easy-to-Use

• Ease of operation due to the low friction design
• The short levers may be repositioned and exchanged
• Extremely compact
• Wide range of configurations

- Maximum Efficiency

• Excellent performance under vacuum
• Full flow
• Chemical nickel-plated brass with high phosphorous content for outstanding corrosion resistance
• Automatic seal wear compensation system

- Reliability

• Tried-and-tested technology
• Forged brass provides mechanical strength and long service life
• 100% leak-tested in production
• Date coding to guarantee quality and traceability

Markets:

• Packaging
• Wearing Apparel
• Lumber & Wood
• Rubber & Tire Processing
• Plastic Processing
• Rail

Applications:

• Allow/Stop Compressed Air Circulation on Pneumatic Circuits
• Suitable for Vacuum Applications

Technologies:

• Industrial valves
• Corrosion resistant
• Pneumatic circuit
• Control valves
• Pneumatic systems

Technical Characteristics:

• Fluids: Compressed air, other fluids: see compatibility chart in our catalogue
• Materials: brass, polymer or zamak, shot-blasted brass or shot-blasted nickel-plated brass, NBR, nickel-plated polished brass, graphite-impregnated polyamide, silicone free
• Pressure: Vacuum to 12 bar
• Temperature: -20°C to +80°C

Regulations:

• DI: 97/23/EC (module PED A - diameters greater than 25 mm)
• DI: 2006/42/EC (Machinery Directive)
• DI: 2002/95/EC (RoHS)
• RG: 1907/2006 (REACH)

Product Types:

• 2/2 In-Line Ball Valve, Female BSPP Thread
• 2/2 In-Line Ball Valve, Short Handle, Female BSPP Thread
• 2/2 In-Line Ball Valve, Male/Female BSPP Thread
• 2/2 In-Line Ball Valve, Short Handle, Male/Female BSPP Thread
• 2/2 In-Line Ball Valve, Male BSPP Thread
• 2/2 In-Line Ball Valve, 2 Vent Plugs, Female BSPP Thread
• 2/2 Ball Valve, Square Stem, Female BSPP Thread
• 2/2 Ball Valve, Square Stem, Male/Female BSPP Thread

Характеристики

Максимальный расход:	n/a
Бренд:	Legris
Подразделение:	Low Pressure Connectors Europe Division
Промышленность:	Industrial Manufacturing Equipment
Применение:	Pneumatics, Process Control, Safety, Fluid Control, Transportation, Packaging, Textile, Sawmills, Rubber & Plastics
Технологии:	Fluid & Gas Handling, Process Control, Pneumatics
Тип продукта:	Ball Valves
Модель продукта:	Female Ball Valve, Male and Female Ball Valve, Vented Female Ball Valve
Серия продуктов:	Universal Light Series
Функция:	2-Way
Тип эксплуатации:	Lever-operated, Square Stem for actuator operated
Форма:	In-line
Максимальное рабочее давление:	12 bar, 174 psi, 1.2 MPa
Расход:	n/a
Тип соединения:	BSPP
Присоединительный размер:	G1/4 to G3/4
Типоразмер диафрагмы:	4 to 13 mm
Конфигурация:	2/2
Для типа жидкости:	Air, Inert Gas, Water, Other fluids: see compatibility chart at the end of this chapter
Минимальная рабочая температура:	-20 °C, -4 °F
Максимальная рабочая температура:	80 °C, 176 °F
Тип монтажа:	In-Line
Тип срабатывания:	Manual, Square Stem for automation
Соблюдены требования технических условий:	DI: 97/23/EC (module PED A - diameters greater than 25 mm), DI: 2006/42/EC (Machinery Directive), DI: 2002/95/EC (RoHS), RG: 1907/2006 (REACH)
Материалы изготовления:	Brass
Материал корпуса:	Nickel Plated Brass, Brass
Материал седла:	Graphite-impregnated polyamide
Материал уплотнения:	NBR
Материал штока:	Brass
Материал шарика:	Nickel Plated Brass
Материал уплотнительного кольца:	NBR
Тип ручки:	Black long lever (Polymer), Black short lever (ZAMACK), No handle
Вес:	0.063 to 0.240 kg, 0.126 to 0.480 lb
Количество в одной коробке:	1 to 50
Страна происхождения:	France
