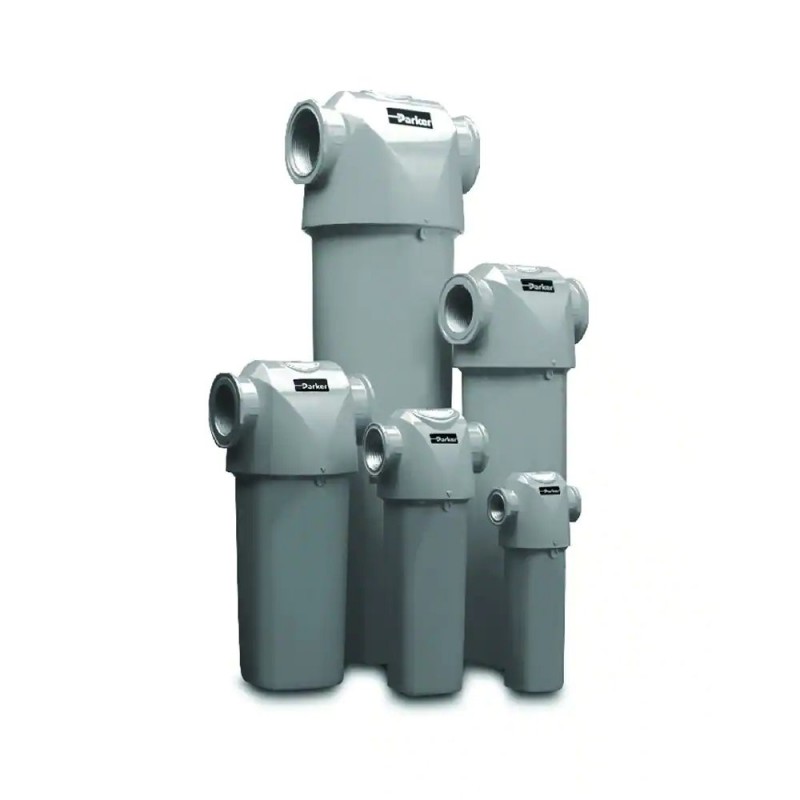

Moduflex Extra Compressed Air Filters / Bulk Liquid Separators - P3TF Series P3TFA2DAJMN

The Moduflex Extra Coalescing Filters and Bulk Liquid Separators are specifically designed to deliver air quality in accordance with ISO 8573.1:2001 - protecting filters, refrigeration and heatless regenerative desiccant dryers under all flow conditions

Moduflex Extra P3TF-Series Compressed Air Filters provide air quality in accordance with ISO 8573.1:2001, the international standard for compressed air quality. Moduflex Extras coalescing filters are the first range of filters specifically designed to deliver air quality in accordance with ISO 8573.1 : 2001 when tested with the stringent requirements of the new ISO 12500-1 international standard for Compressed Air Filter Testing.

The P3TF Bulk Liquid Separator removes bulk liquid at all points within the compressed air system. It protects filters, refrigeration dryers, and heatless regenerative desiccant dryers by providing high liquid removal efficiencies under all flow conditions. Based upon internal design, it provides a low pressure drop from inlet to outlet, thus lowering the cost of ownership. The P3TF works well with all types of compressors, removing compressor condensate through centerfugial separation technology. Air enters the inlet containing a set of fixed vanes the air passes through, thus forcing the air to spin inside the vessel. Bulk condensate is removed due to directional changes of the airstream, velocity changes, and centrifugal actions of the vortex.

• Port Type: NPT | BSPT | Flange
• Port Size: 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3"
• Operating Pressure: 232 psi or 16 bar
• Operating Temperature: 35° to 176°F / 1.5° to 80°C
• Flow SCFM: 21 - 1695
• Flow dm3/s: 10 - 800
• Housing Material: Aluminum | Steel
• Drain Types: Auto Float | Manual
• Coating: Epoxy Painted
• Seals: Fluorocarbon
• Certifications: CE | ISO 8573.9 | ASME | CRN
