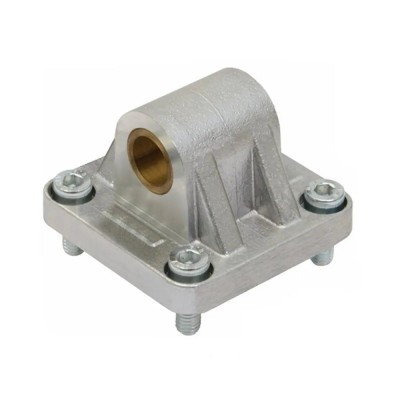

Pneumatic Cylinder Clevis Bracket MP4 / Parker Pneumatic - Europe P1P-4HME

Clevis bracket MP4 for articulated movement of ISO 15552 and ISO 21287 cylinders bores Ø20mm to Ø320mm. Fitted to the actuator using the mounting screws supplied.

The Clevis Bracket MP4 permits articulated movement of ISO 15552 and ISO 21287 pneumatic cylinders with bore sizes from Ø20mm to Ø320mm. Suitable for use with P1D, P1F and P1P-series pneumatic cylinders.

Markets:
▪ Industrial
▪ Food and Beverage
▪ Packaging
▪ Factory Automation
▪ Processing
▪ Transportation

Features/Benefits:
▪ Permits flexible mounting of pneumatic cylinder
▪ Cylinder mounting according to ISO 15552
▪ Clevis bracket MP4 can be combined with clevis bracket MP2
▪ Material:
- Bracket : Aluminium
- Mounting Screws : Zinc plated steel
▪ Corrosion resistant design
▪ For product series P1D, P1F and P1P
▪ Supplied complete with mounting screws for attachment to cylinder

Applications:
▪ Installation of Pneumatic Cylinders


Performance Characteristics:
For cylinder types : P1D | P1F | P1P
Bore Size : 20mm | 25mm | 32mm | 40mm | 50mm | 63mm | 80mm | 100mm | 125mm | 160mm | 200mm | 250mm | 320mm
Certificates : For ISO 15552 | ISO 21287 Cylinders
Material : Aluminium
Corrosion Resistant : Yes
