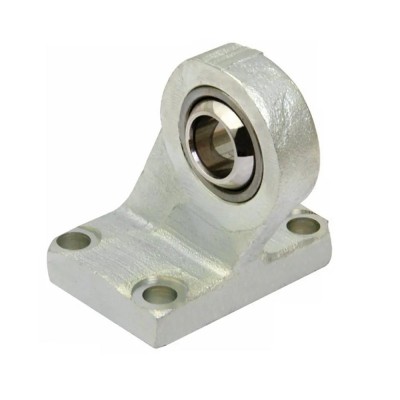

Pneumatic Cylinder Pivot Bracket with Swivel Bearing CS7 / Pneumatic Division Europe P1C-4PMAF

Pivot bracket with swivel bearing CS7 for articulated movement of ISO 15552 and ISO 21287 cylinders bores Ø32mm to Ø125mm. Available in surface treated steel.

The CS7 pivot bracket with swivel bearing provides articulated movement of ISO 15552 and ISO 21287 pneumatic cylinders, with bore szes from Ø32mm to Ø125mm. Suitable for use with P1D, P1F and P1P-series pneumatic cylinders.

Markets:
▪ Industrial
▪ Food and Beverage
▪ Packaging
▪ Factory Automation
▪ Processing
▪ Transportation

Features/Benefits:
▪ Permits flexible mounting of pneumatic cylinder
▪ Cylinder mounting according to ISO 15552
▪ Pivot bracket with swivel bearing CS7 can be combined with clevis bracket AB6
▪ Material:
- Bracket : Surface treated steel
- Swivel bearing acc. to DIN 648K : Hardened steel
▪ Corrosion resistant design
▪ For product series P1D, P1F and P1P

Applications:
▪ Installation of Pneumatic Cylinders


Performance Characteristics:
For cylinder types : P1D | P1F | P1P
Bore Size : 32mm | 40mm | 50mm | 63mm | 80mm | 100mm | 125mm
Certificates : For ISO 15552 | ISO 21287 Cylinders
Material : Surface treated steel
Corrosion Resistant : Yes
