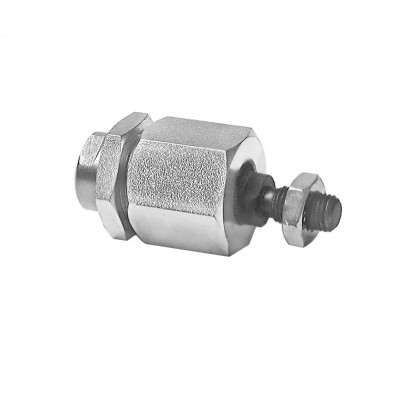

Pneumatic Cylinder Piston Rod End Mount - Flexo Coupling PM5 / Parker Pneumatic - Europe P1C-4KRF

Flexo coupling in zinc plated steel for articulated mounting of ISO 15552 and ISO 21287 cylinders bores Ø20mm to Ø320mm. Fitted to the actuator piston rod using the mounting nut supplied with the cylinder.

Flexo coupling in zinc plated steel for articulated mounting of piston rod of ISO 15552 and ISO 21287 cylinders, bores Ø20mm to Ø320mm. Flexo fitting is intended to take up axial angle errors within a range of ±4°. Fitted to the actuator piston rod using the mounting nut supplied with the cylinder.

Flexo Coupling PM5:
• Cylinder rod mounting
• Material: Zinc plated steel
• For product series P1D, P1P, P1A and RDV/AZV
• Supplied with adjustment nut
• Fitted to the actuator piston rod using the mounting nut supplied with the cylinder

Performance Characteristics:
- For Cylinder Types : P1D | P1P | P1A | RDV/AZV
- Bore Size : 20mm | 25mm | 32mm | 40mm | 50mm | 63mm | 80mm | 100mm | 125mm | 160mm | 200mm | 250mm | 320mm
- Certificates : For ISO 15552 Cylinders | For ISO 21287 Cylinders
- Material : Zinc plated steel
- Corrosion Resistant : Yes
