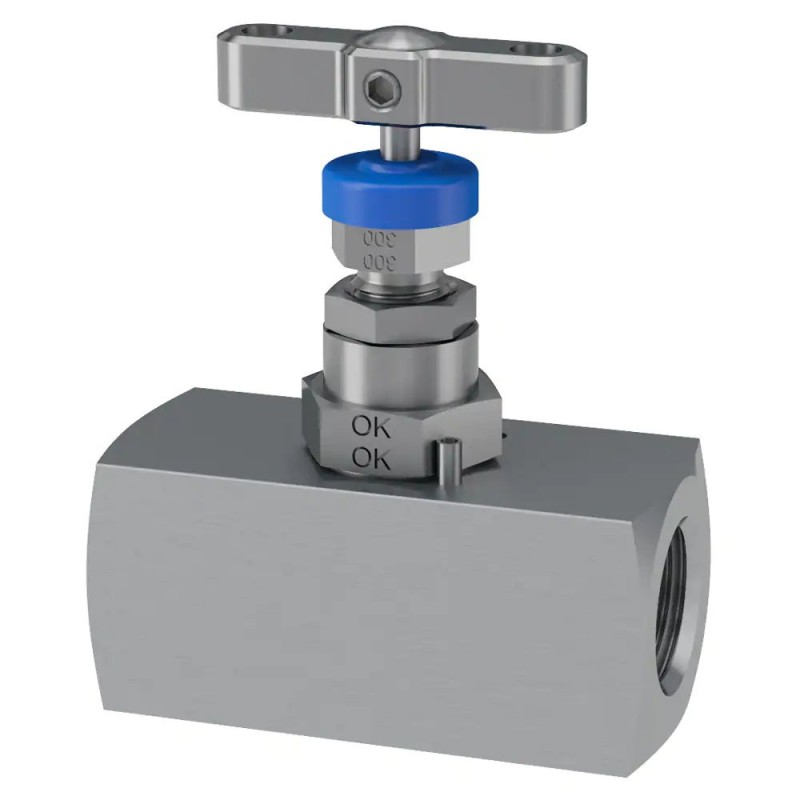

Hand valves, Rising Plug – HRPV Series HRPV4D14FF

Parker's bar stock rising plug hand valves with soft seat tip and a straight through flow path, specifically designed for isolation and regulation of contaminated media. Pressure rating up to 10,000 psi (689 bar).

Parker's bar stock HRPV Series rising plug hand valves of patent-protected design, with soft seat tip and a straight through flow passage, specifically suitable for isolation and regulation in critical flow applications or applications containing viscous/contaminated media.

The rising plug valve is rated to 10,000 PSI (689 BAR) and is available with an extensive range of corrosion resistant body materials and connection types and sizes. For the ultimate in safety, reliability, speed, and ease of installation these valves can be specified with integral tube connections utilising Parker A-LOK® (Two Ferrule) or CPITM (Single Ferrule) compression fitting technologies. This will also ultimately reduce overall user costs.

Industries:
• Oil and Gas
• Chemical
• Petrochemical
• Power Generation
• Nuclear

Features/Benefits:
• Non-rotating plug/tip
• Dynamic response moulded seat insert with guaranteed alignment
• Standard straight through orifice size 1/4” (6.4mm)
• Rolled spindle operating threads
• Straight through flow path
• Bi-directional flow
• Backstop spindle for blowout prevention and minimal atmospheric leakage
• Low torque operating T bar handle
• Externally adjustable gland
• Full range of head options available
• Dust cap to prevent ingress of contamination to operating thread
• Bonnet locking pin fitted as standard

Applications
• Lubrication skids
• Gas cylinder filling stations
• Instrumentation isolation lines
